VECTOR ™- USMC VECTOR 21-V.0.3
Distance measurements

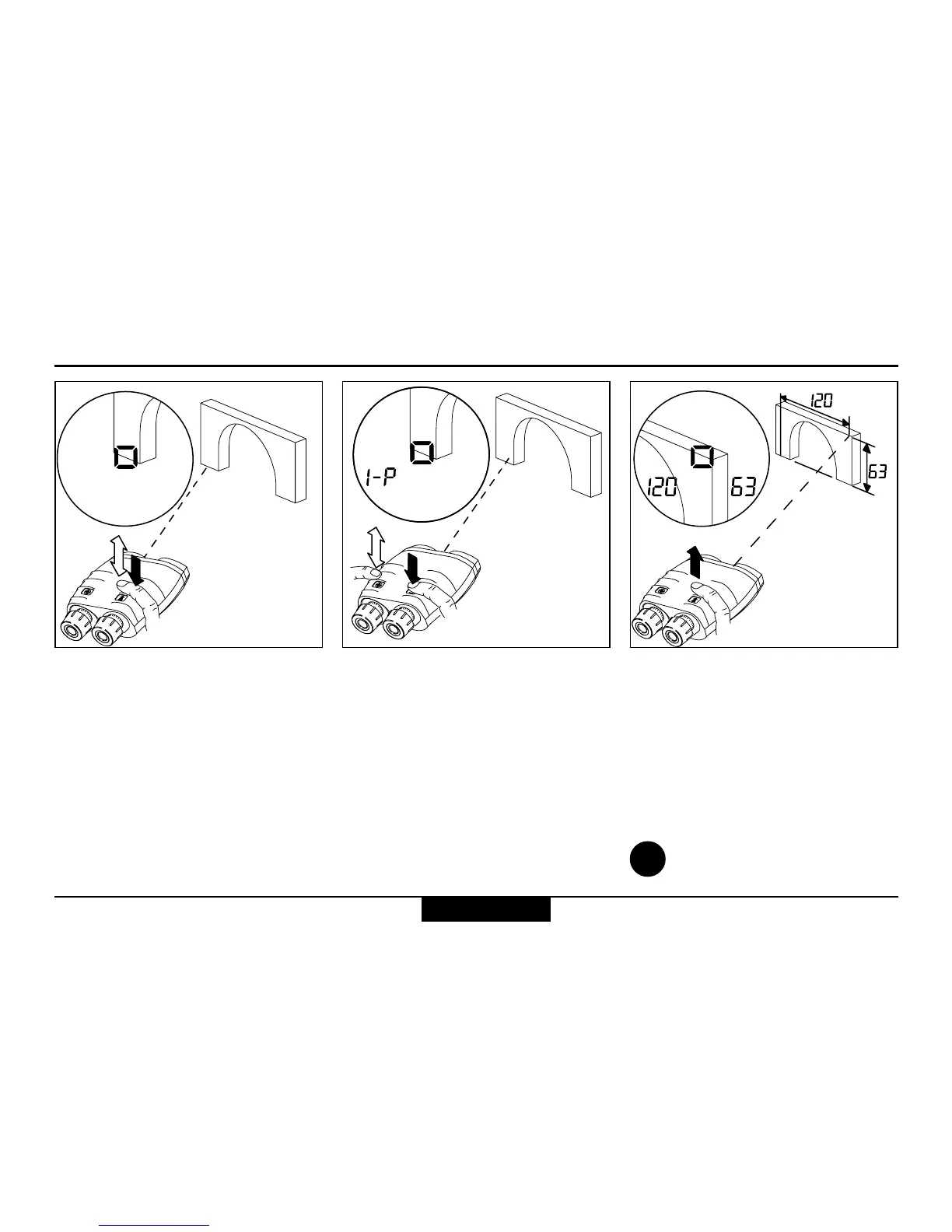

Horizontal and vertical distance between two objects
Click the distance key once,
then press and hold it down.
The pointing circle appears.
Sight the first object with the
pointing circle.
Click the azimuth key while
holding the VECTOR steady.
The first object measurement is
confirmed (1-P = first point).
Sight the second object with the
pointing circle.
Release the distance key while
holding the VECTOR steady.
The horizontal distance appears
at the left and the vertical
distance at the right of the field
of view.
Setting measurement units:
see page 32.
