Veeder-Root EMR3 Installation Guide

EMR3 Truck Installation Installation Procedures - Fuel Oil Truck Application
8

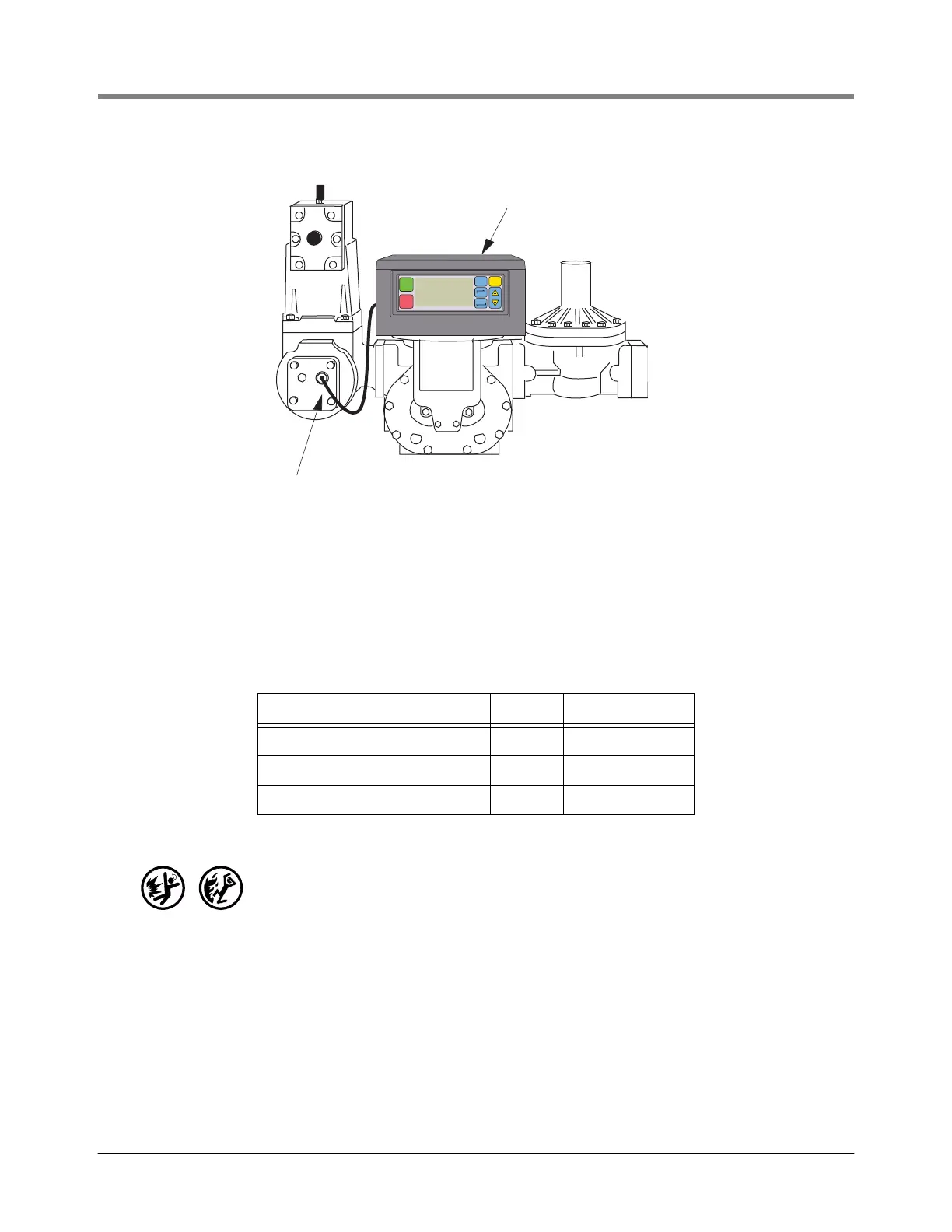

Figure 4. Example of temperature probe installation
TOTAL CONTROL SYSTEMS MODEL 682 PISTON FLOW METER INSTALLATION
Table 1 lists the Veeder-Root parts needed for this installation.
INSTALLATION PROCEDURE
1. The TCS Model 682 Piston Meter installation requires a coupling (V/R Pt No. 065004-005) and pin (V/R Pt
No. 510105-177) be installed on the Display Head input drive shaft.
2. Remove and put aside the four mounting bolts holding the old meter register assembly to the TCS 682 meter
adaptor mounting flange. Remove the existing register.
3. Following the steps in Figure 5, assemble the coupling onto the encoder shaft and lower the Display Head
onto the TCS meter adapter while aligning the slot in the bottom of the coupling with the pin in the shaft in the
top of the adapter.
4. Rotate the Display Head on the meter adaptor mounting flange until the display is facing in the desired
direction and check to see that the meter adaptor flange mounting holes align with the tapped (1/4 - 28 UNF-
Table 2.- V-R Parts Required for Display Head-to-TCS 682 Piston Meter Installation
Item Qty V-R P/N
Wire - Sealing 24” (610 mm) LG 1 011853-285
Coupling 1 065004-005
Pin 1 510105-177
U
se this port for Optional
V-R Thermowell
Display Head
emr\therm3.eps
START
FINISH
MODE PRESET
NEXT
ENTER
VOLUME CURRENCY RATE SETUP
