Veeder-Root EMR3 Installation Guide

EMR3 Truck Installation Installation Procedures - Fuel Oil Truck Application
13

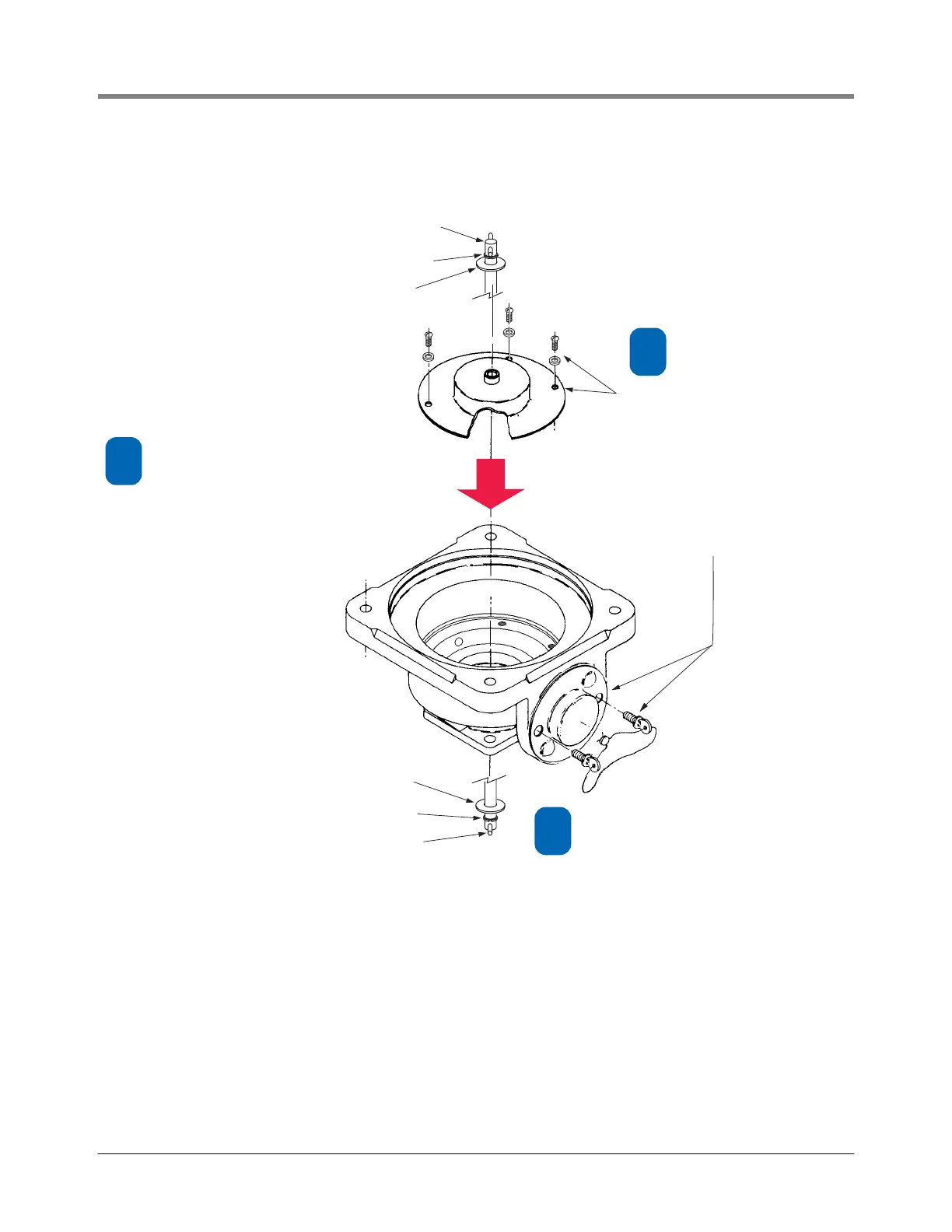

Figure 9. Replacing the Tokheim Daniels, & Donovan calibrator
0011071-325 Washer
011071-325 Washer
0511810-001 Truarc
0511810-001 Truarc
0510105-140 Groove Pin
Insert Truarc in "top" groove in
shaft (Groove Pin is Factory
installed in "Top" end of Shaft),
Slide on washer, then lower
shaft down through bushings in
top of cover and base of
calibrator.
Replace existing cover
with 3 mounting screws
and washers.
Replace existing Dial
cover with 2 Seal screws.
(Reseal with wire and sea
l
from kit).
1
1
2
Slide on washer then insert
Truarc in bottom shaft groove.
Support shaft with a block of
wood and drive bottom groove
pin into hole in bottom end of
shaft
3
0331431-001 Shaft Group
emr\tokreasm.eps
