Veeder-Root EMR3 Installation Guide

EMR3 Truck Installation Installation Procedures - Fuel Oil Truck Application
17

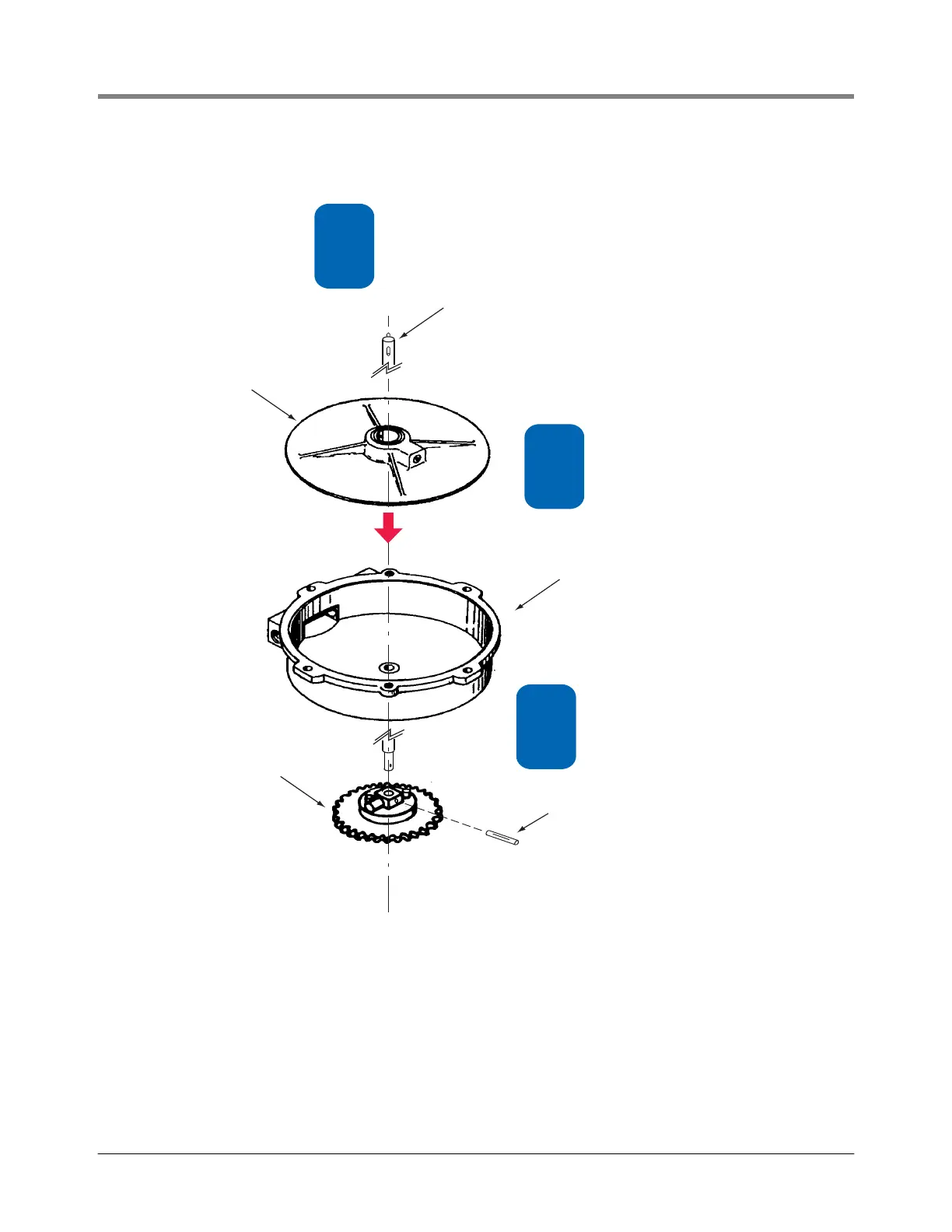

Figure 13. Reassembling the Smith meter calibrator
1
2
3
510114-001 Groove Pin
Smith drive gear
emr\smith3.eps
Calibrator case
C
alibrator cover
Shaft Group 331433-00X
("Top" end with factory
installed groove pin)
After removing parts
inside calibrator, replac
e
cover.
Lower Group Shaft down through
bushings in cover and and in calibrator
case and into bore in Smith drive gear.
Support shaft with block
of wood and drive groov
e
pin through holes in gea
r
bore and hole in shaft.
