Veeder-Root EMR3 Installation Guide

EMR3 Truck Installation Installing the Interconnection Box (IB)
28

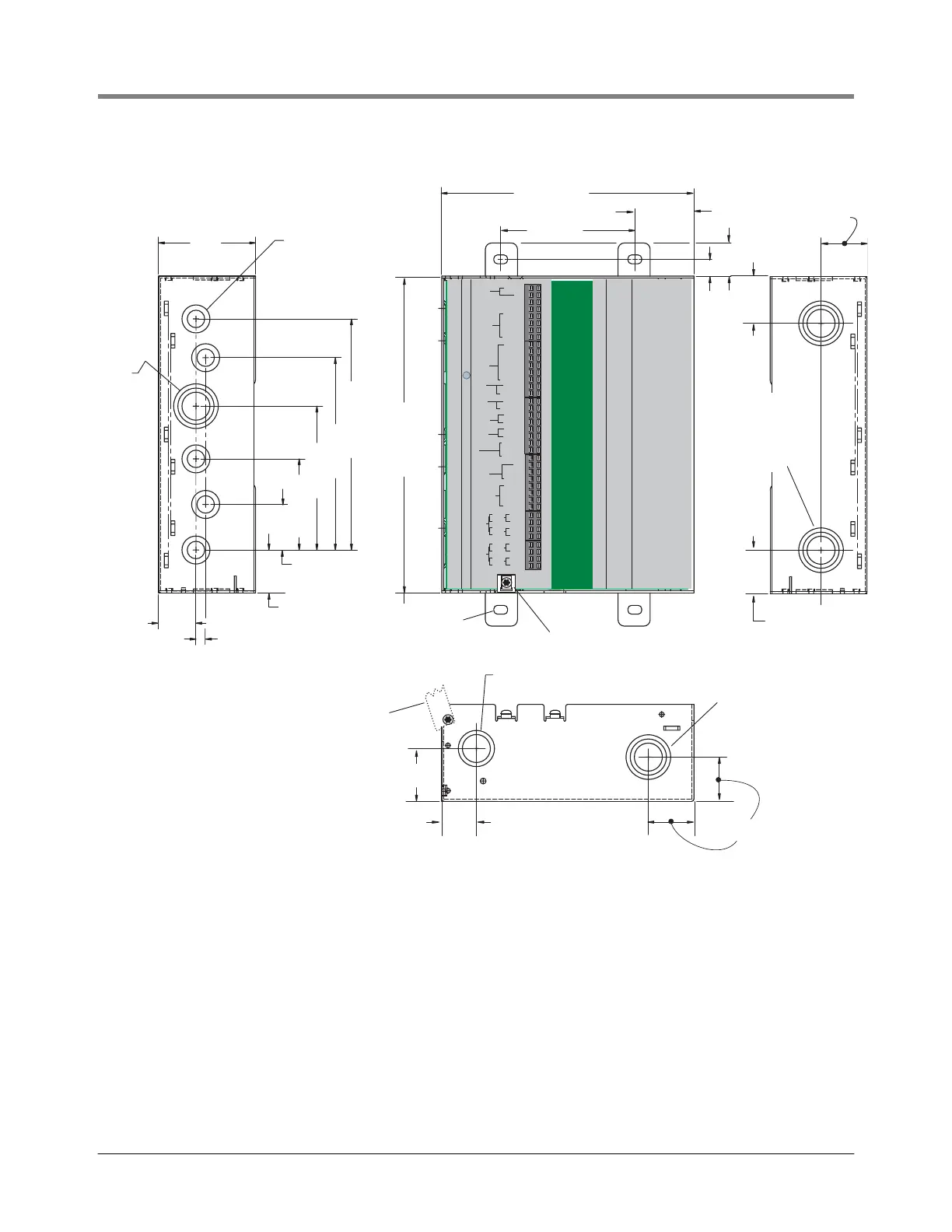

Figure 21. IB physical dimensions (shown with cover removed)
3.0"
(76.20)
7.8" (198.12)
9.8" (248.92)
1.4" (35.56)
1.3" (33.02)
2.8" (71.12)
4" (101.6)
6" (152.4)
7.2" (182.88)
1.2" (30.48)
0.3" (7.62)
Knockout
0.54" (13.72) Inside
1/2" I.P.S. Outside
(5 Places)
1/2", 3/4"
& 1" I.P.S
Knockout
1/2", 3/4",
& 1" I.P.S.
Knockout
(bottom & top)
1/2" & 3/4" I.P.S. Knockout (bottom & top)
Cover
(Shown open
for reference)
0.5" (12.7)
1.1" (27.94)
1" (25.4)
1.87" (47.5)
4" (101.6)
1/4" x 3/8"
(6.3 x 9.5)
Slot -4 Places
1.4" (35.56)
1.4" (35.56)
1.4" (35.56)
1.4" (35.56)
1.7" (43.18)
1/2", 3/4"
& 1" I.P.S.
Knockout
(2 Places)
Ground
V+
GP- IN
GP- OUT
Input V
5V Out
12V Out
24V Out
Ground
Stop DH1
Start DH2
Start DH1
Ground
Start SP1
Stop DH2
Ground
RS-485B
RS-485A
RX
TX
Ground
Ground
Ground
Power
PRN-RX
PRN-TX
COM
N.O.
Input
Power
Pulse
Voltage
Selector
IB
Network
Ground
Start SP2
Ground
POUT-1
Switch
Inputs
Start
Pulse
DH1
Printer
Interface
Relay
2
COM
N.O.
Relay
1
COM
N.O.
Relay
2
COM
N.O.
Relay
1
RS-232
Serial
Port
Display
Head
No. 1
Display
Head
No. 2
Start
Pulse
DH2
Pulse
Output
DH1
Ground
POUT-2
Pulse
Output
DH2
emr\3dimens.eps
T-15 Torx Grounding Clamp
INTRINSICALLY SAFE CIRCUITRY
(UNDER COVER)
(mm in parentheses)
