Sensor Installation Sensor Installation Diagrams
48

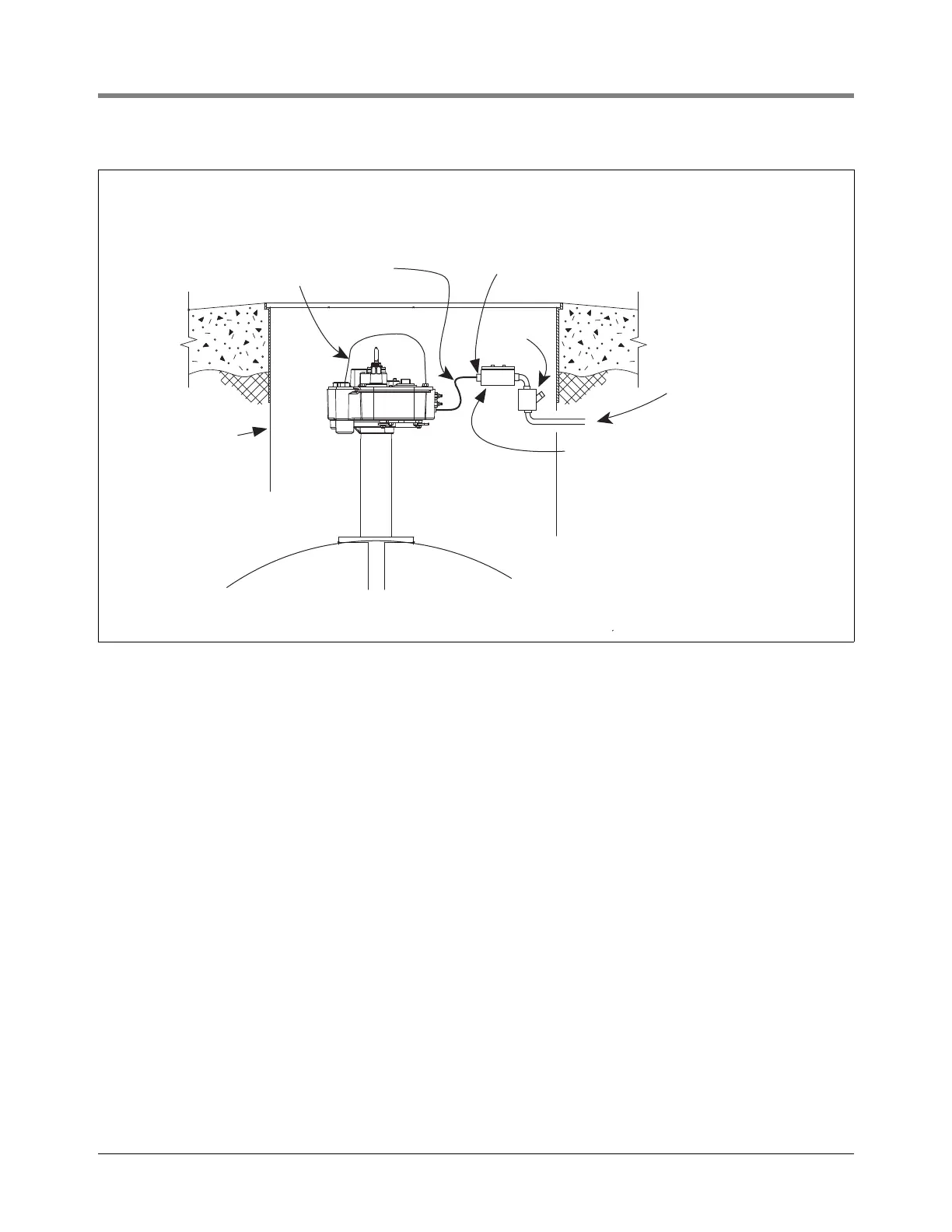

Figure 47. CSTP Liquid Sensor Wiring Installation
Cord grip
2-conductor cable
(comes preattached to
liquid switch in CSTP
housing)
CSTP
Weatherproof junction box with
1/2-inch N.P.T. threads (16 Cubic
inch volume minimum)
14'' min. dia.
manhole
Seal-off
sensors\cstplsinst.eps
1/2'' rigid conduit
(to Console)
