Veeder-Root TLS-350 - Water Warning; Figure 7-1. Relative Positions of Tank Alarm Limits

7 In-Tank Setup Water Warning
7-14
Water Warning
If necessary, press STEP until you see the message:
NOTE: This message does not appear for tanks in which high alcohol probes are installed.
Water Warning identifies a high water level in the bottom of the tank [see Figure 7-1]. It acts as a pre-warning to
the High Water Limit. Set this value at a lower level than High Water Limit.
To enter the Water Warning value for the selected tank, press CHANGE. Enter the limit in inches (5.0 maximum) or
millimeters (199 maximum), depending on the units established in System Setup. Press ENTER to confirm your
entry. The system displays:
Press STEP to continue.

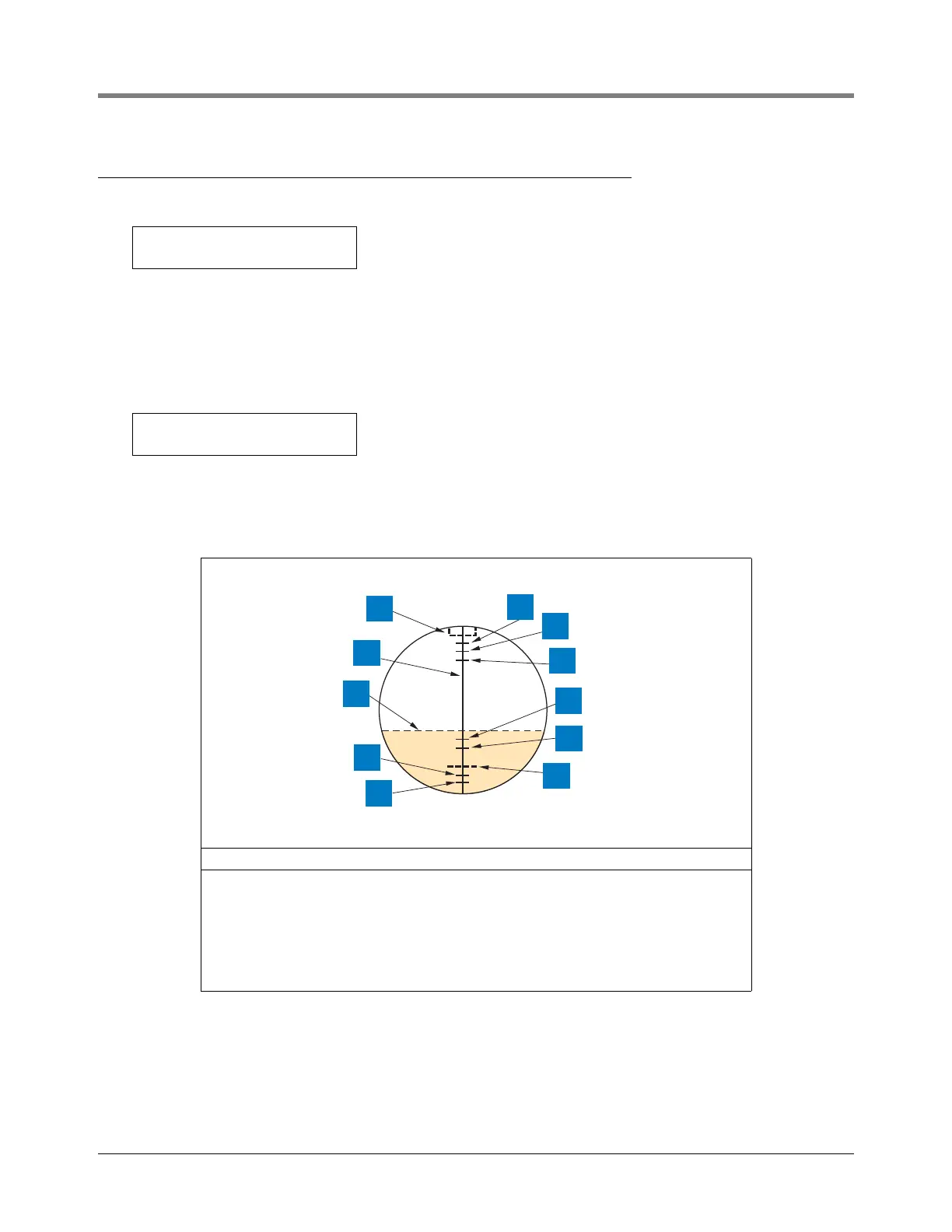

Figure 7-1. Relative Positions of Tank Alarm Limits
Legend for numbered boxes:
1. Probe Canister (Reference) 7. Low Product
2. Probe 8. Delivery Limit
3. Product 9. Overfill Limit
4. High Water Limit 10. High Product
5. Water Warning 11. Max or Label Vol
6. Pump Pickup (Reference)
T1: (Product Label)
WATER WARNING: 00:0
WATER WARNING: XX.X
PRESS <STEP> TO CONTINUE
