Console Installation Mounting the Console
8

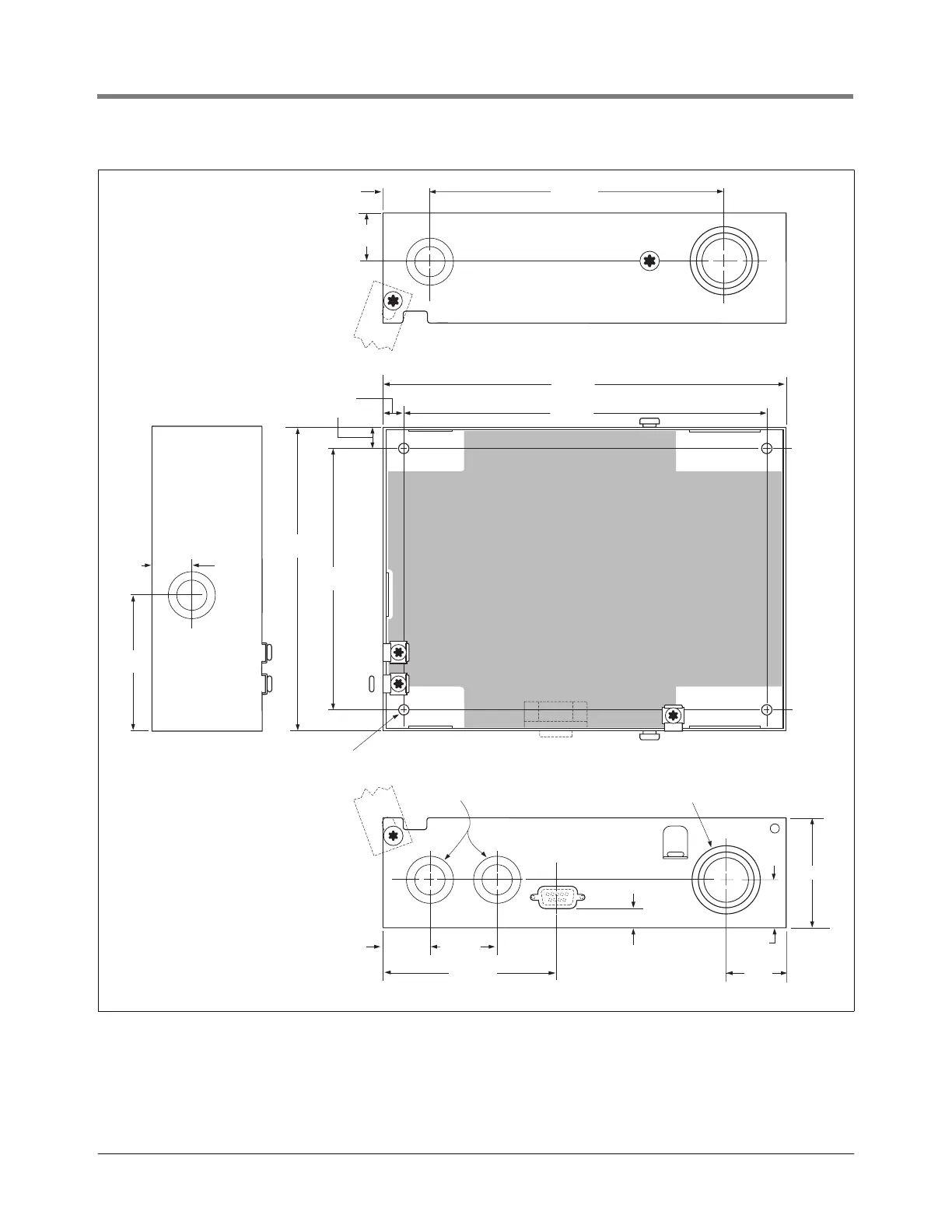

Figure 3. Console Dimensions and Designated Conduit Knockouts
0.34''
(8,6 mm) typ.
7.4"
(188 mm)
6.4''
(163 mm)
5.7''
(145 mm)
2" (51 mm)
5.3''
(135 mm)
consoles\tls50dimen.eps
0.22'' (5,6 mm) dia.
console mounting
holes (4 places)
3.75"
(95mm)
0.4''
(10 mm)
0.93''
(23,6 mm)
0.93''
(24 mm)
1.25''
(32 mm)
0.93''
(23,6 mm)
2.6''
(66)
0.7''
(17,8)
0.93''
(24 mm)
6.7"
(170 mm)
1.18''
(30 mm)
1/2-inch IPS and .56 inch (22 & 14 mm)
Power wiring only - conduit knockouts
(4 places)
1/2, 3/4, & 1 inch IPS (22, 28, & 35 mm)
Intrinsically safe wiring only - conduit knockouts
(2 places)
