Mag Probe Assembly Attaching Cable Connector to Probe Canister

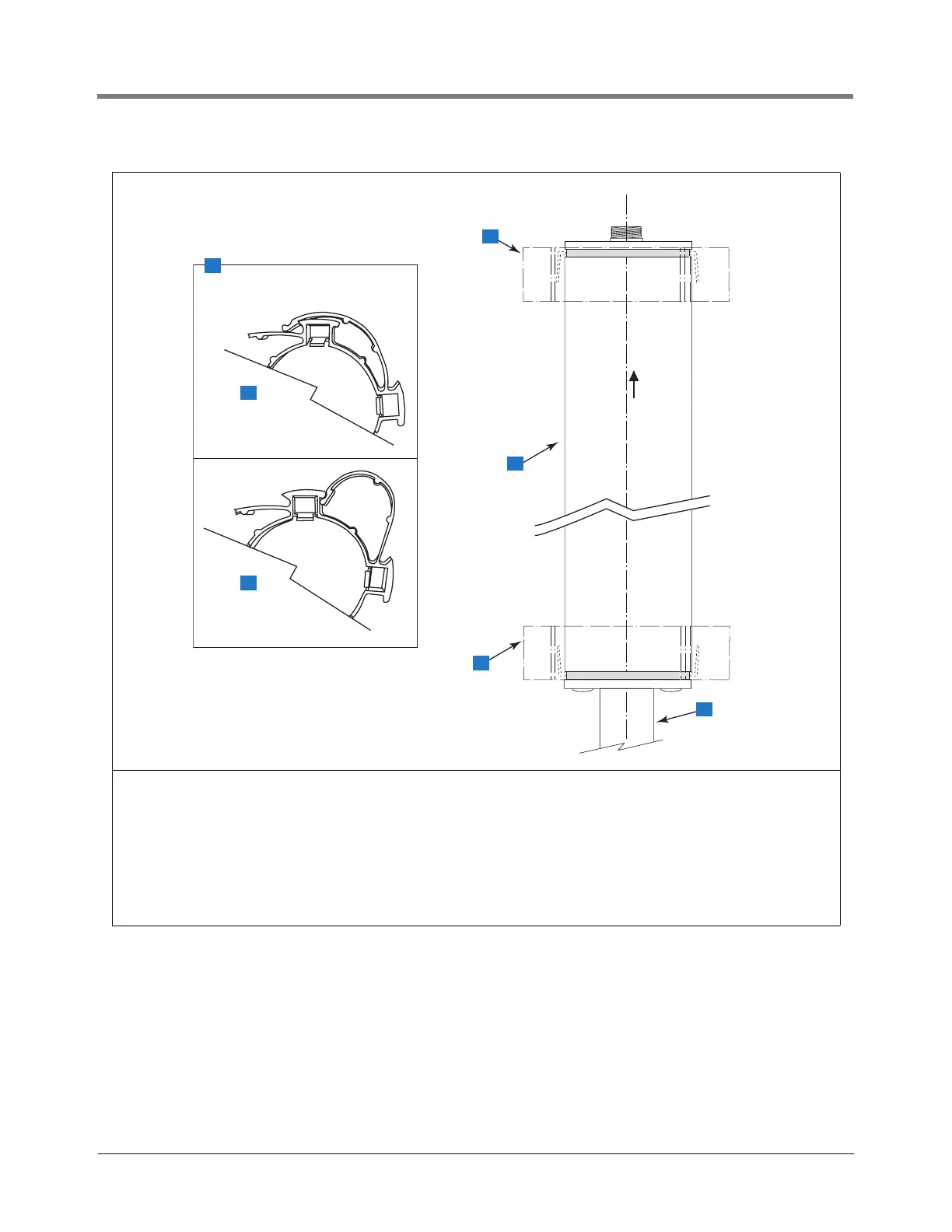

Figure 5. Installing Probe Canister Spacer Rings
Legend for numbered boxes
1 After setting vanes (see insert) install top spacer ring. Orient locking tabs as shown, and then slide ring over top of canister
until tabs snap into groove in canister.
2 Probe canister
3 After setting vanes (see insert) install bottom spacer ring. Orient locking tabs as shown, and then slide ring over probe and
onto canister, until tabs snap in groove.
4Probe shaft
5 Spacer Ring Riser Adjustment
6 For 3"riser - set 4 spacer ring vanes as shown.
7 For 4"riser - set 4 spacer ring vanes as shown.
tls2/figure12.eps
1
2
3
4
5
7
6
