11 Supplement
VEGAPULS 63 • Modbus and Levelmaster protocol
41364-EN-170711
ABB Total Flow
Wiring plan
+
+
power supply
MODBUS
D0
D1
IS GND
USB
1 2
13
45
2off
on
( )
( )
(-)
(-)
8
1
2
6
7
Bus +
Bus -
GND
VBAT

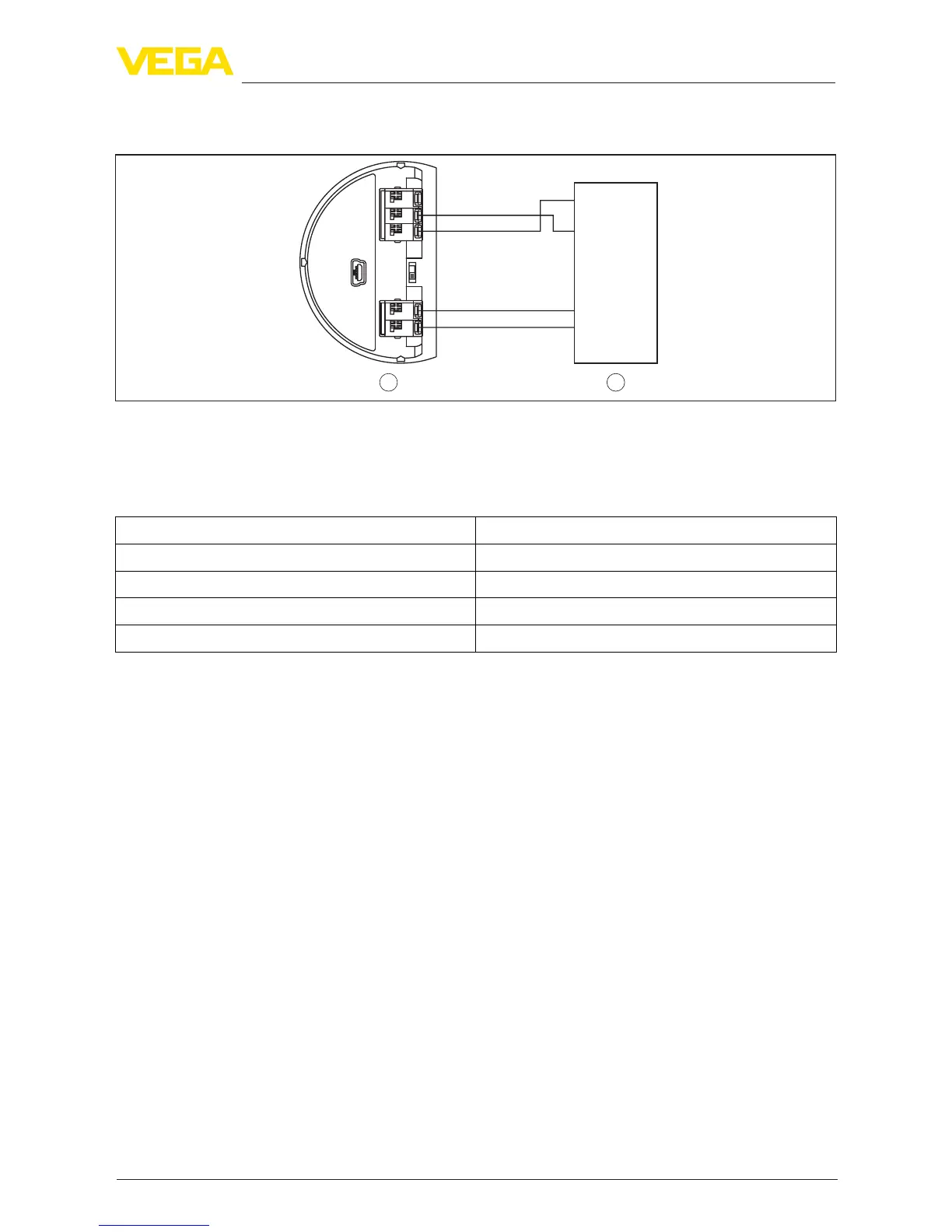

Fig. 51: Connection of VEGAPULS 63 to RTU ABB Total Flow
1 VEGAPULS 63
2 RTU ABB Total Flow
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type 16 Bit Modicon
Input Register Base Number 1
The basic number of the input registers is always added to the input register address of VEGAPULS
63.
Address 1303 must hence be entered as register address for 1302 for RTU ABB Total Flow.
