VEGAPULS 63 • Modbus and Levelmaster protocol
41364-EN-170711
Thermo Electron Autopilot
Wiring plan
+
+
power supply
MODBUS
D0
D1
IS GND
USB
1
2
3
13
45
2off
on
( )
( )
(-)
(-)
+8 +30
Vdc
to
GND
2
1
Rx -
Rx+

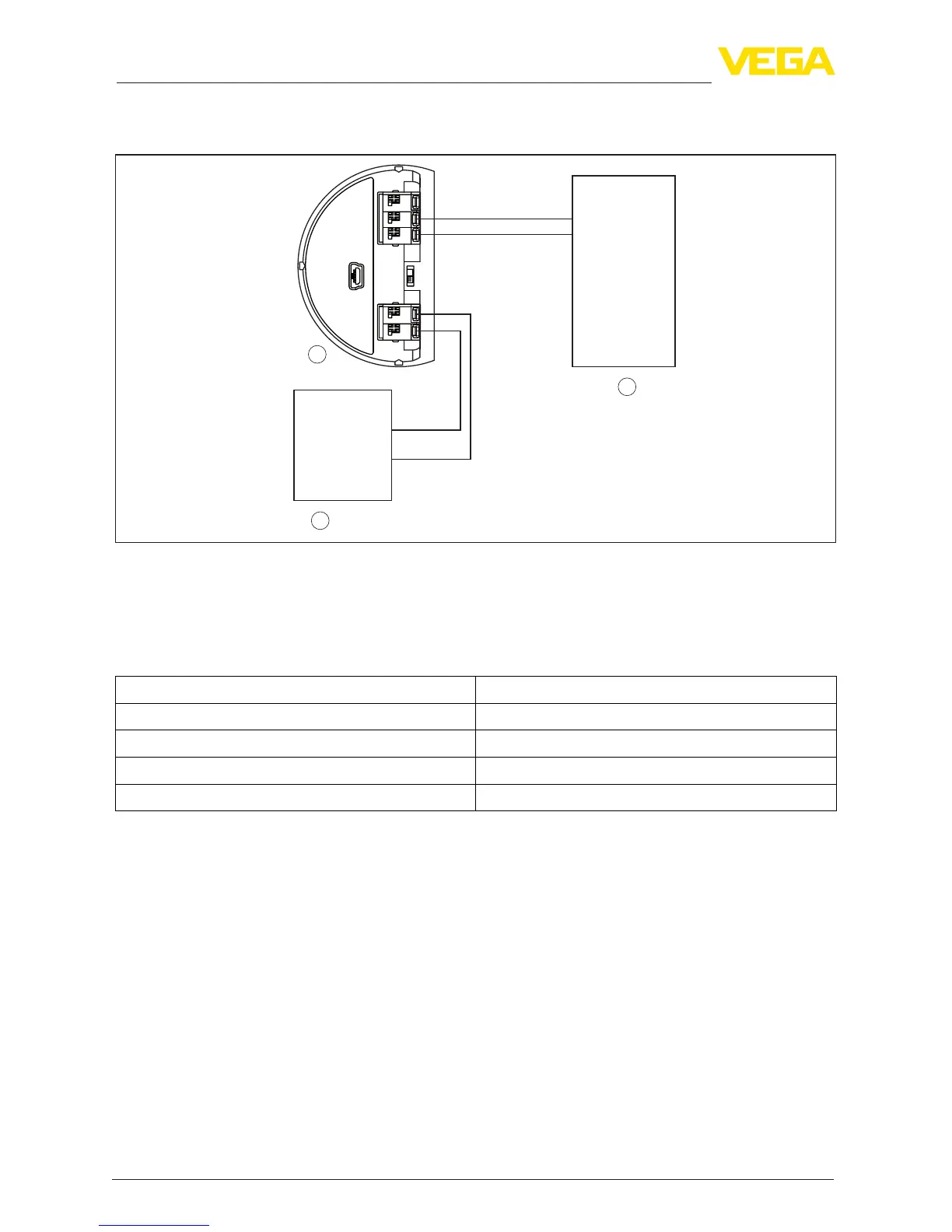

Fig. 52: Connection of VEGAPULS 63 to RTU Thermo Electron Autopilot
1 VEGAPULS 63
2 RTU Thermo Electron Autopilot
3 Voltage supply
Parameter
Parameter Value
Baud Rate 9600
Floating Point Format Code 0
RTU Data Type IEE Fit 2R
Input Register Base Number 0
The basic number of the input registers is always added to the input register address of VEGAPULS
63.
For that reason, address 1300 must be entered as register address for 1300 for the RTU Thermo
Electron Autopilot.
