Vega VEGAPULS 64 - Page 85

85
11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
Plastic housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
112 mm
(4.41")
M20x1,5/
½ NPT
~ 84 mm
(3.31")
M16x1,5
112 mm
(4.41")
M20x1,5/
½ NPT
1
2
ø 79 mm
(3.11")

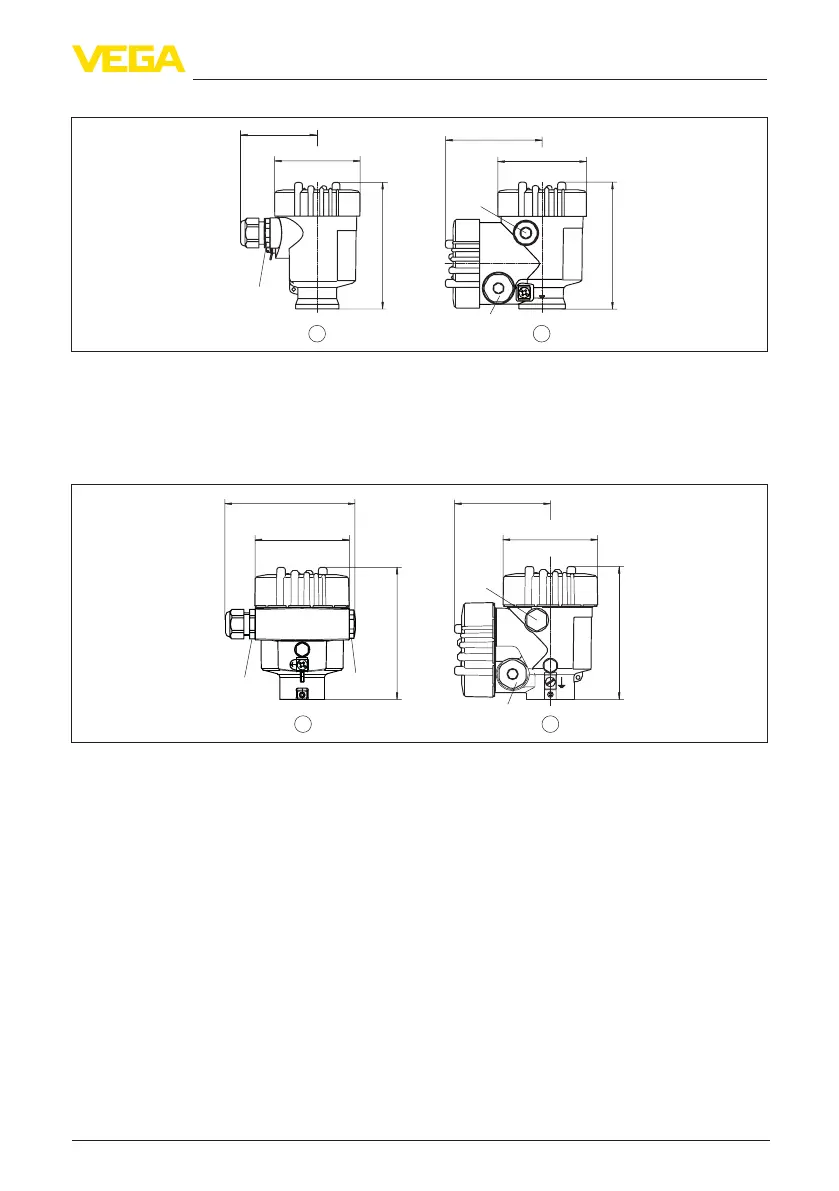

Fig. 55: Housing versions in protection IP66/IP67 (with integrated display and adjustment module the housing is
9 mm/0.35 in higher)
1 Plastic single chamber
2 Plastic double chamber
Aluminium housing
21
ø 86 mm
(3.39")
~ 116 mm
(4.57")
120 mm
(4.72")
M20x1,5
M20x1,5/
½ NPT
~ 87 mm
(3.43")
M16x1,5
ø 86 mm
(3.39")
120 mm
(4.72")
M20x1,5/
½ NPT
Fig. 56: Housing versions with protection rating IP66/IP68 (0.2 bar), (with integrated display and adjustment mod-
ule the housing is 18 mm/0.71 in higher)
1 Aluminium - single chamber
2 Aluminium - double chamber
