11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
Aluminium housing with protection rating IP66/IP68, 1 bar
120 mm
(4.72")
~ 150 mm
(5.91")
ø 86 mm
(3.39")
M20x1,5
M20x1,5
1

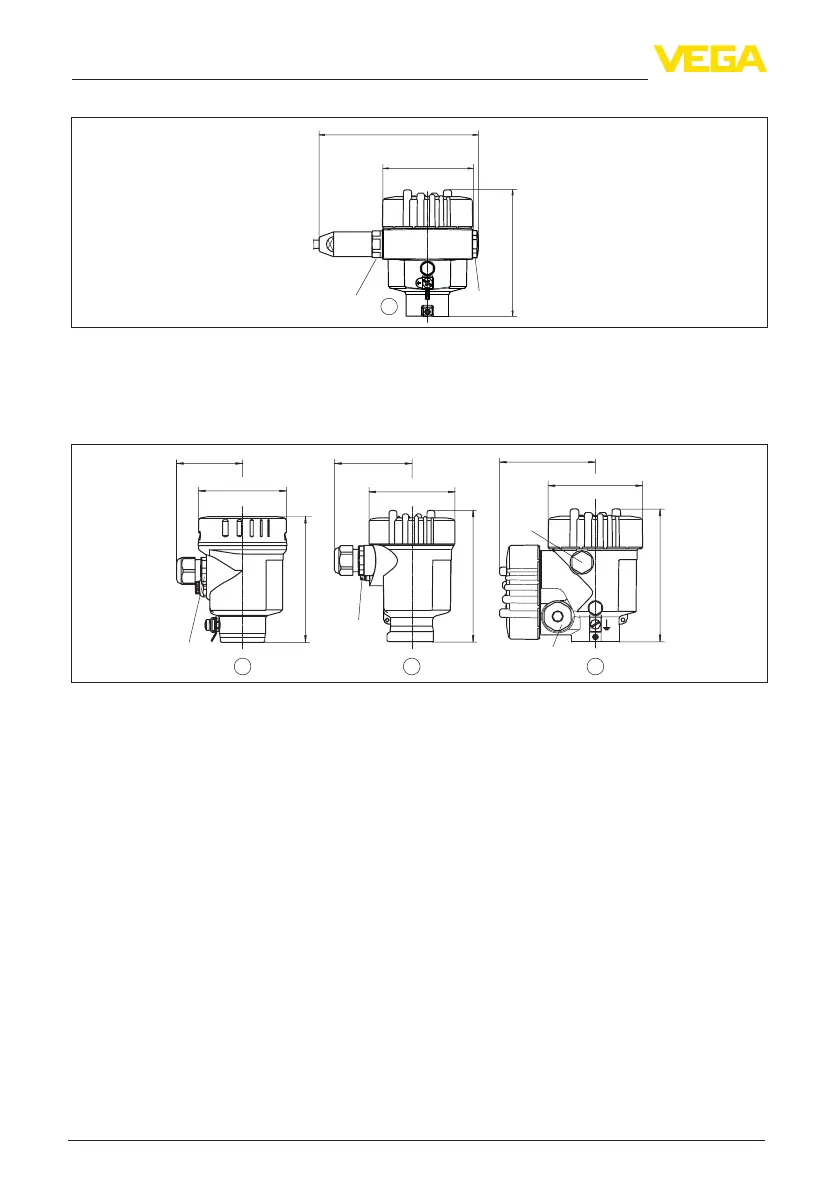

Fig. 57: Housing version with protection rating IP66/IP68 (1 bar), (with integrated display and adjustment module
the housing is 18 mm/0.71 in higher)
1 Aluminium - single chamber
Stainless steel housing
~ 69 mm
(2.72")
ø 79 mm
(3.11")
117 mm
(4.61")
M20x1,5/
½ NPT
~ 59 mm
(2.32")
ø 80 mm
(3.15")
112 mm
(4.41")
M20x1,5/
½ NPT
~ 87 mm
(3.43")
ø 86 mm
(3.39")
120 mm
(4.72")
M20x1,5/
½ NPT
M16x1,5
321
Fig. 58: Housing versions with protection rating IP66/IP68 (0.2 bar), (with integrated display and adjustment mod-
ule the housing is 18 mm/0.71 in higher)
1 Stainless steel single chamber (electropolished)
2 Stainless steel single chamber (precision casting)
3 Stainless steel double chamber housing (precision casting)
4 Stainless steel single chamber (electropolished) IP69K
