VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
Stainless steel housing with protection rating IP66/IP68, 1 bar
117 mm (4.61")
120 mm (4.72")
~ 103 mm
(4.06")
~ 105 mm (4.13")
ø 77 mm
(3.03")
116 mm (4.57")
~ 150 mm (5.91")
ø 84 mm (3.31")
ø 84 mm
(3.31")
M20x1,5
M20x1,5/
½ NPT
M16x1,5
2
3
M20x1,5M20x1,5
1

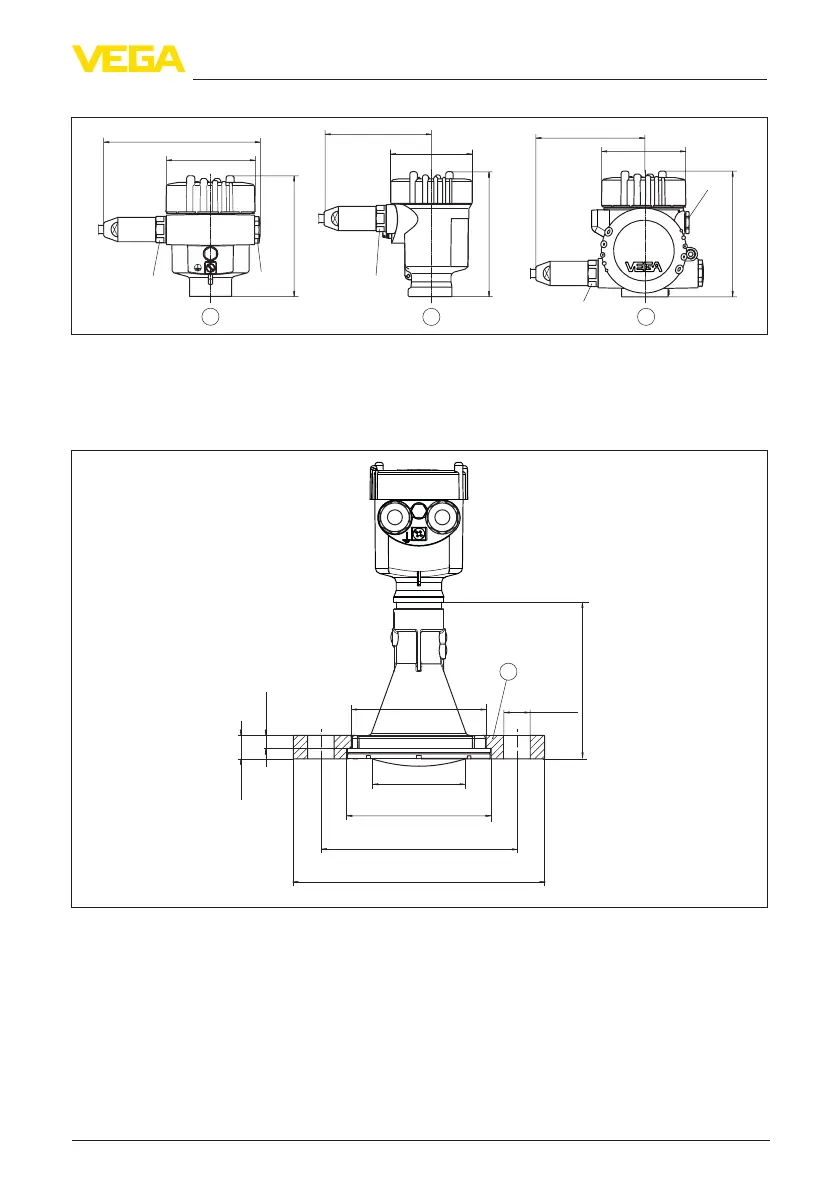

Fig. 59: Housing version with protection rating IP66/IP68 (1 bar), (with integrated display and adjustment module
the housing is 18 mm/0.71 in higher)
1 Stainless steel single chamber (precision casting)
VEGAPULS64,plastichornantennawithcompressionange
126 mm
(4.96")
10,5 mm
(0.41")
19 mm
(0.75")
ø 75 mm
(2.95")
ø 115 mm
(4.53")
ø 156 mm
(6.14")
ø 200 mm
(7.87")
ø 21 mm
(0.83")
ø 107 mm
(4.21")
1
Fig. 60: Radar sensor with compression ange suitable for 3" 150 lbs, DN 80 PN 16
1 Compression ange
