11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
VEGAPULS64,plastichornantennawithadapterange
2
1
144 mm
(5.67")
36,5 mm
(1.44")
20 mm
(0.79")
17,5 mm
(0.69")
ø 75 mm
(2.95")
ø 98 mm
(3.86")
ø 180 mm
(7.09")
ø 220 mm
(8.66")

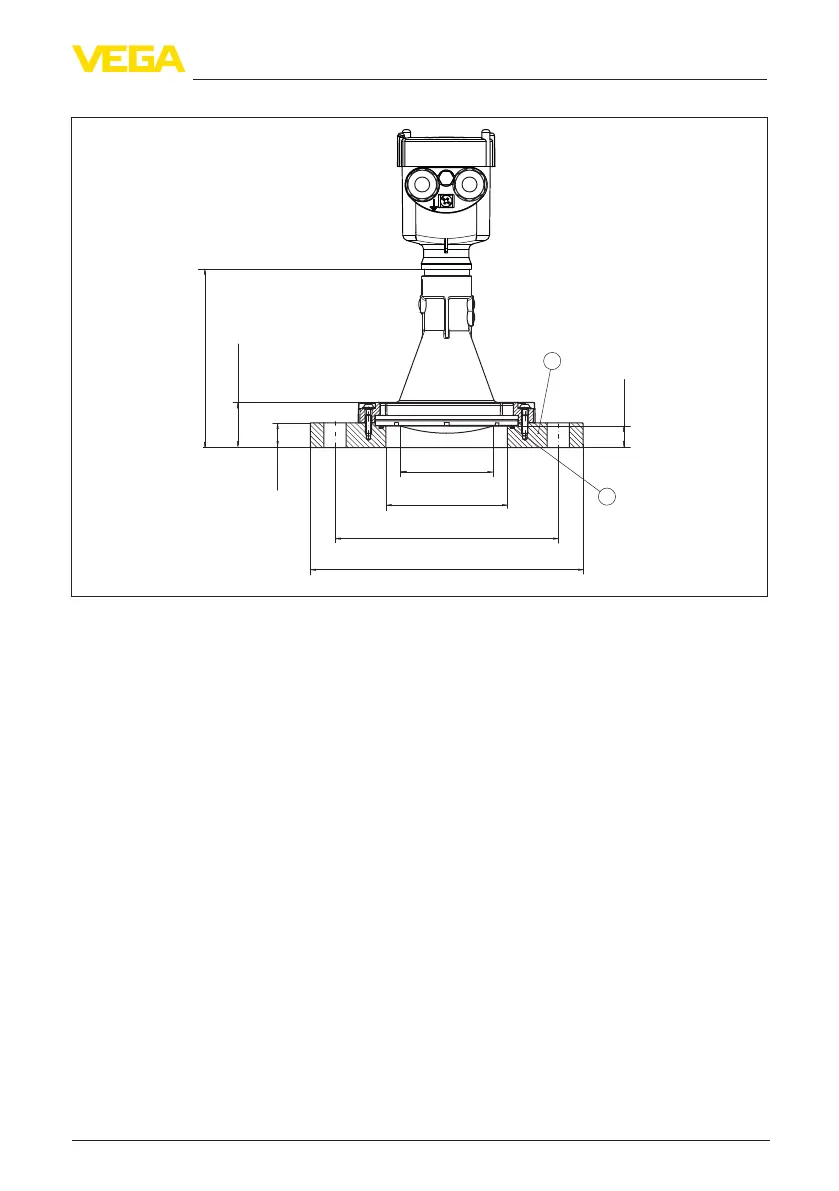

Fig. 62: Radar sensor with adapter ange DN 100 PN 6
1 Adapter ange
2 Process seal
