90
11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
VEGAPULS64,plastichornantennamitadapterangeundrinsingconnection
3
21
170 mm
(6.69")
62,5 mm
(2.46")
20 mm
(0.79")
34,7 mm
(1.37")
ø 75 mm
(2.95")
ø 98 mm
(3.86")
ø 180 mm
(7.09")
ø 220 mm
(8.66")

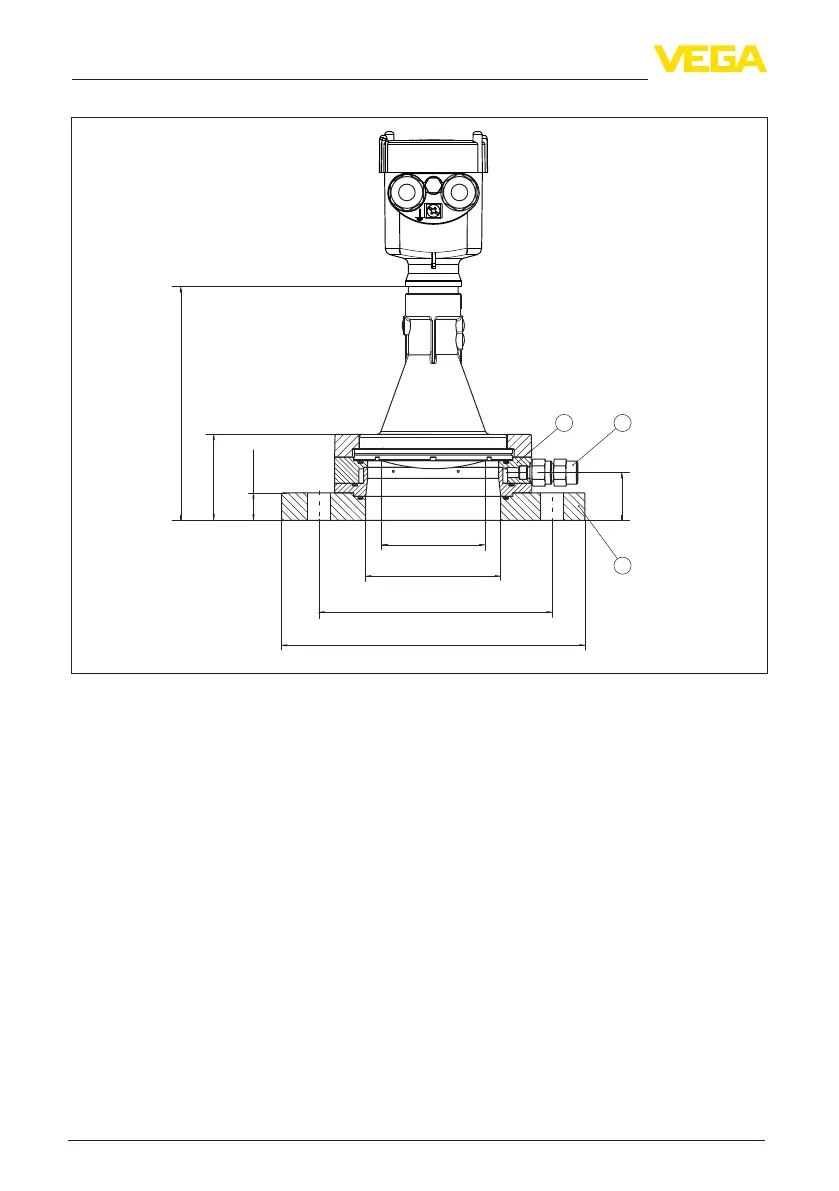

Fig. 63: VEGAPULS 64, adapter ange and rinsing connection DN 100 PN 6
1 Rinsing air connection
2 Reux valve
3 Adapter ange
