VEGAPULS 64, thread with integrated horn antenna
TA
25 mm
(0.98")
61 mm
(2.40")
ø 24 mm
(0.94")
SW 36 mm
(1.42")
G¾
TB
25 mm
(0.98")
61 mm
(2.40")
ø 24 mm
(0.94")
SW 36 mm
(1.42")
¾ NPT
G1½
101 mm
(3.98")
33 mm
(1.31")
ø 42,5 mm
(1.67")
ø 42,5 mm
(1.67")
1½ NPT
SW 55 mm
(2.17")
101 mm
(3.98")
33 mm
(1.31")
SW 55 mm
(2.17")
TC TD

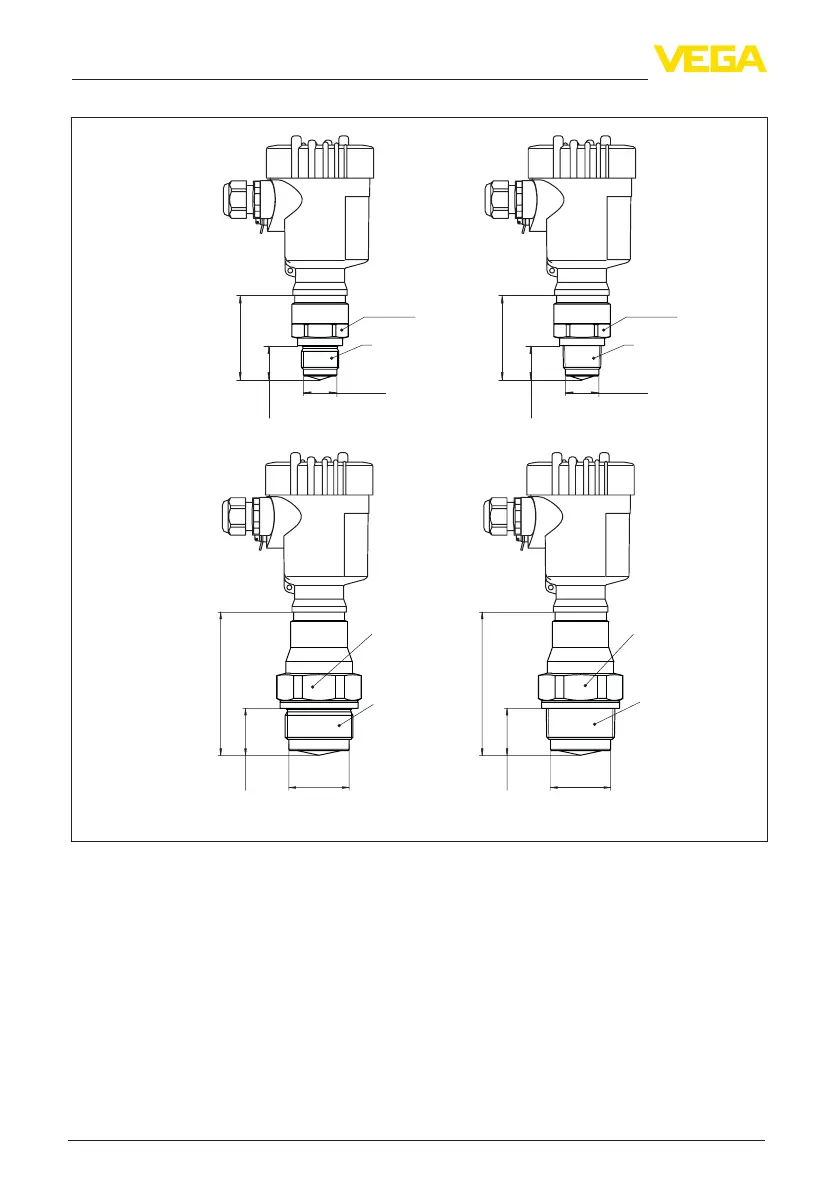

Fig. 65: VEGAPULS 64, thread with integrated horn antenna
TA G¾ (DIN 3852-E)
TB ¾ NPT (ASME B1.20.1)
TC G1½ (DIN 3852-A)
TD 1½ NPT (ASME B1.20.1)
