11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
VEGAPULS64,angewithencapsulatedantennasystem
21
141 mm
(5.55")
89 mm
(3.50")
19 mm
(0.75")
4 mm / 8mm
(0.16" / 0.32")
20 mm
(0.79")
3 mm
(0.12")
ø45 mm
(1.77")
ø102 mm
(4.02")
19 mm
(0.75")
24 mm
(0.94")

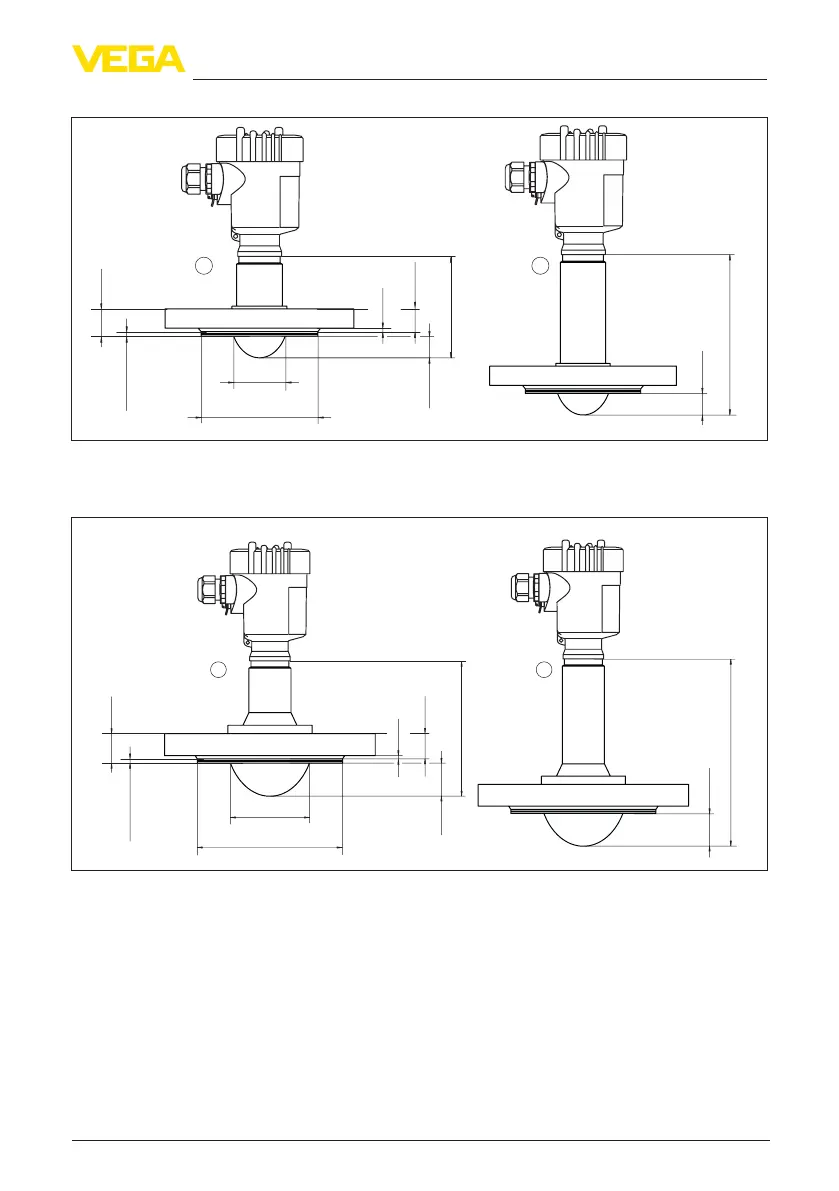

Fig. 66: VEGAPULS 64, encapsulated antenna system DN 50 PN 40
1 Version up to 130 °C (266 °F)
2 Version up to 200 °C (392 °F)
181 mm
(7.13")
129 mm
(5.08")
32 mm
(1.25")
3 mm
(0.12")
24 mm
(0.94")
ø75 mm
(2.95")
ø138 mm
(5.43")
32 mm
(1.25")
21
4 mm / 8 mm
(0.16" / 0.32")
28 mm
(1.10")
Fig. 67: VEGAPULS 64, encapsulated antenna system DN 80 PN 40
1 Version up to 130 °C (266 °F)
2 Version up to 200 °C (392 °F)
