VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
VEGAPULS64,hygienicttingwithencapsulatedantennasystem3
LA
19 mm
(0.75")
69 mm
(2.72")
23 mm
(0.91")
ø 52 mm
(2.03")
ø 40 mm
(1.57")
19 mm
(0.75")
69 mm
(2.72")
39 mm
(1.54")
ø 52 mm
(2.03")
ø 40 mm
(1.57")
ø 90 mm
(3.54")
LB
DC
72 mm
(2.83")
85 mm
(3.35")
ø 44 mm
(1.73")
ø 40 mm
(1.57")
ø 67 mm
(2.64")
72 mm
(2.83")
85 mm
(3.35")
ø 44 mm
(1.73")
ø 40 mm
(1.57")
ø 85 mm
(3.35")
DD

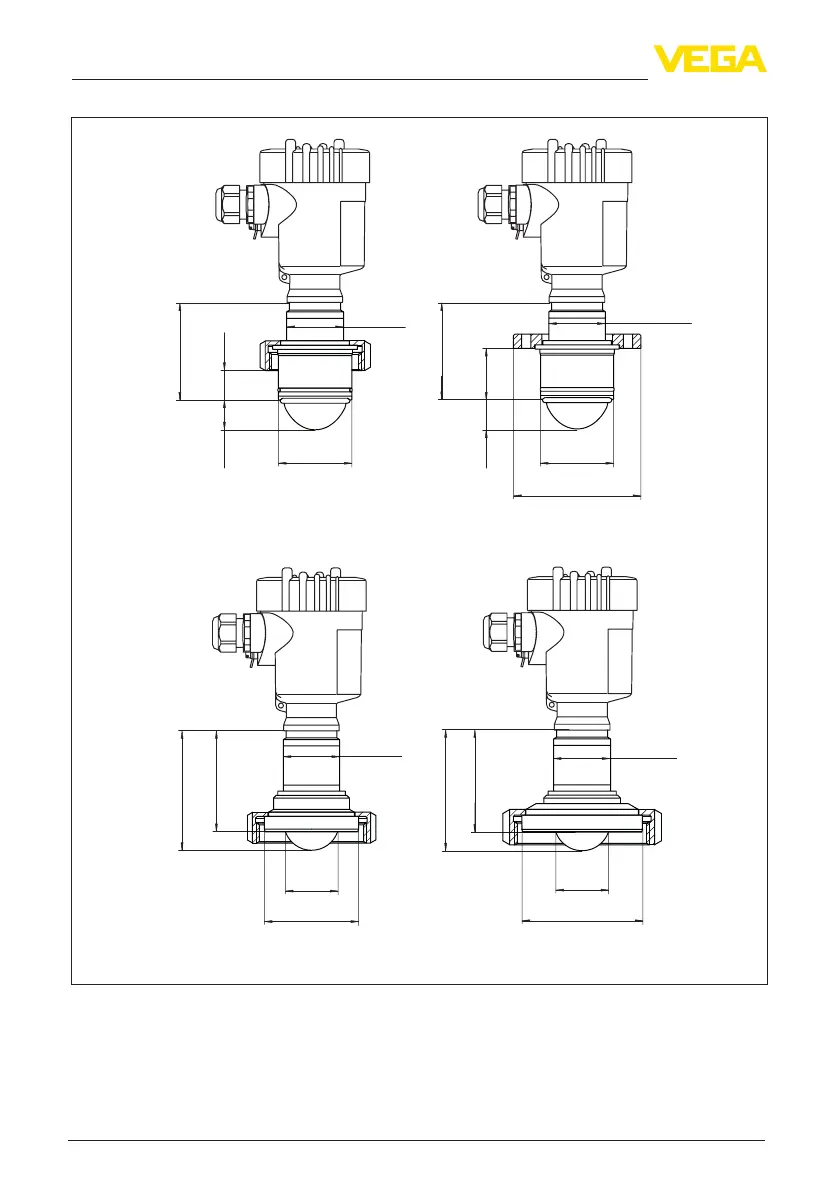

Fig. 70: VEGAPULS 64, hygienic tting with encapsulated antenna system
LA Hygienic connection with compression nut F 40 PN 16
LB Hygienic tting with tension ange DN 32 PN 16
DC Collar socket DN 50 Form A (DIN 11864-1)
DD Collar socket DN 65 Form A (DIN 11864-1)
