11 Supplement
VEGAPULS 64 • Two-wire 4 … 20 mA/HART
51141-EN-210219
VEGAPULS64,hygienicttingwithencapsulatedantennasystem2
SA
19 mm
(0.75")
70 mm
(2.76")
ø 45 mm
(1.77")
ø 65 mm
(2.56")
Rd 70 x 1/6
Q1
19 mm
(0.75")
70 mm
(2.76")
ø 45 mm
(1.77")
ø 40 mm
(1.57")
ø 40 mm
(1.57")
ø 40 mm
(1.57")
ø 65 mm
(2.56")
58 mm
(2.30")
31 mm
(1.23")
ø 50 mm
(1.97")
ø 40 mm
(1.57")
53 mm
(2.09")
36 mm
(1.41")
ø 50 mm
(1.97")
ø 90 mm
(3.54")
VA QB

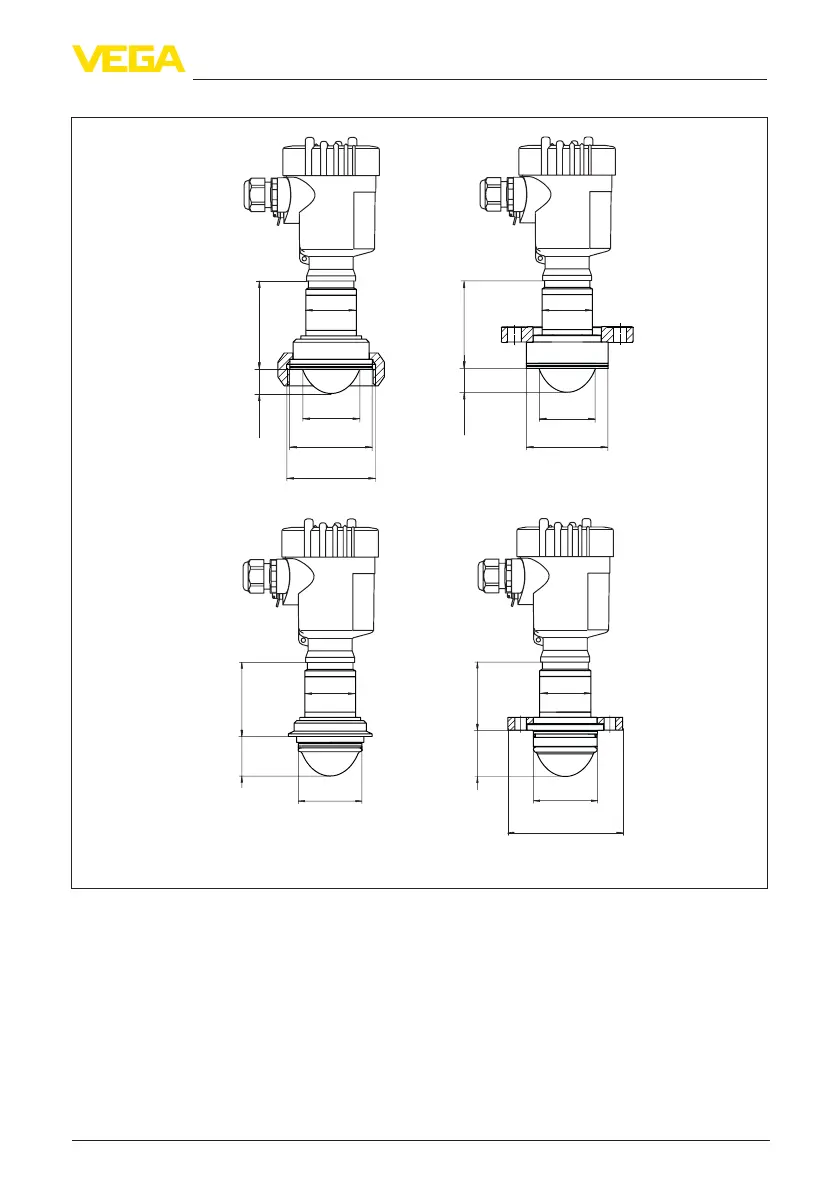

Fig. 69: VEGAPULS 64, hygienic tting with encapsulated antenna system
SA SMS DN 51
Q1 DRD
VA Varivent Form F DN 25
QB NeumoBiocontrol
