LOADING INSTRUCTIONS
BASIC LOAD SET-UP
1. Withdraw the tray from the cabinet by lifting slightly before pulling toward you. The tray
will tilt down slightly to ease loading. Pull forward until the tray stop is reached.
2. Push the product pusher to the rear of the tray. The product pusher should lock into
place in this position. Add new product to the tray. When the tray is pushed back
onto the shelf, the product pusher will automaticlly unlock, and move to the back of the
product queue. Ensure the tray is fully latched into position on the shelf.
It is suggested that one tray is loaded at a time, to maintain stability.
VEND MECHANISM PART DESCRIPTION
LEFT HAND GATE
CENTER GATE
RIGHT HAND GATE
PRODUCT PUSHER

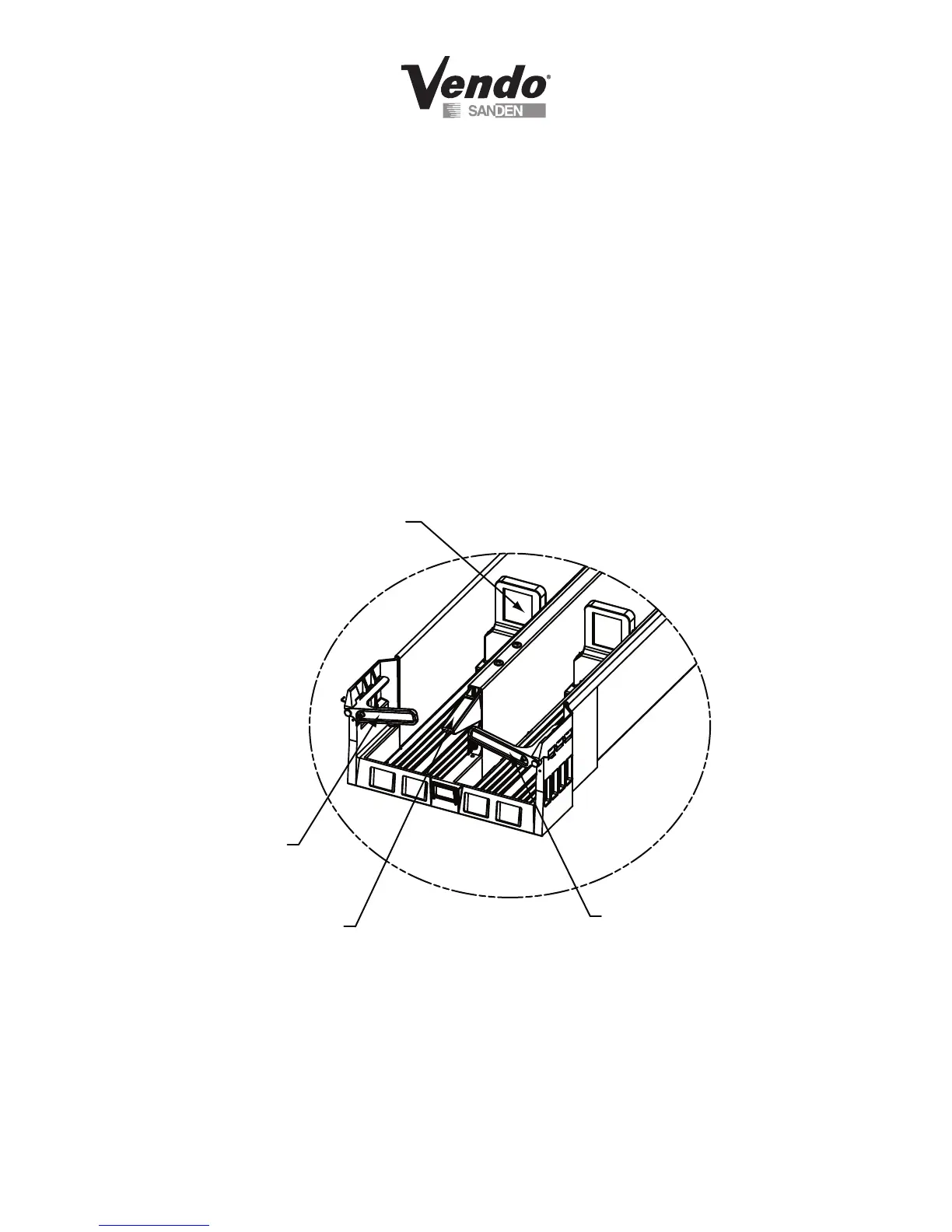

TRAY ASSEMBLY DETAIL
FIGURE 3
