Vendo VUE 40 User Manual

D-8
05/2006

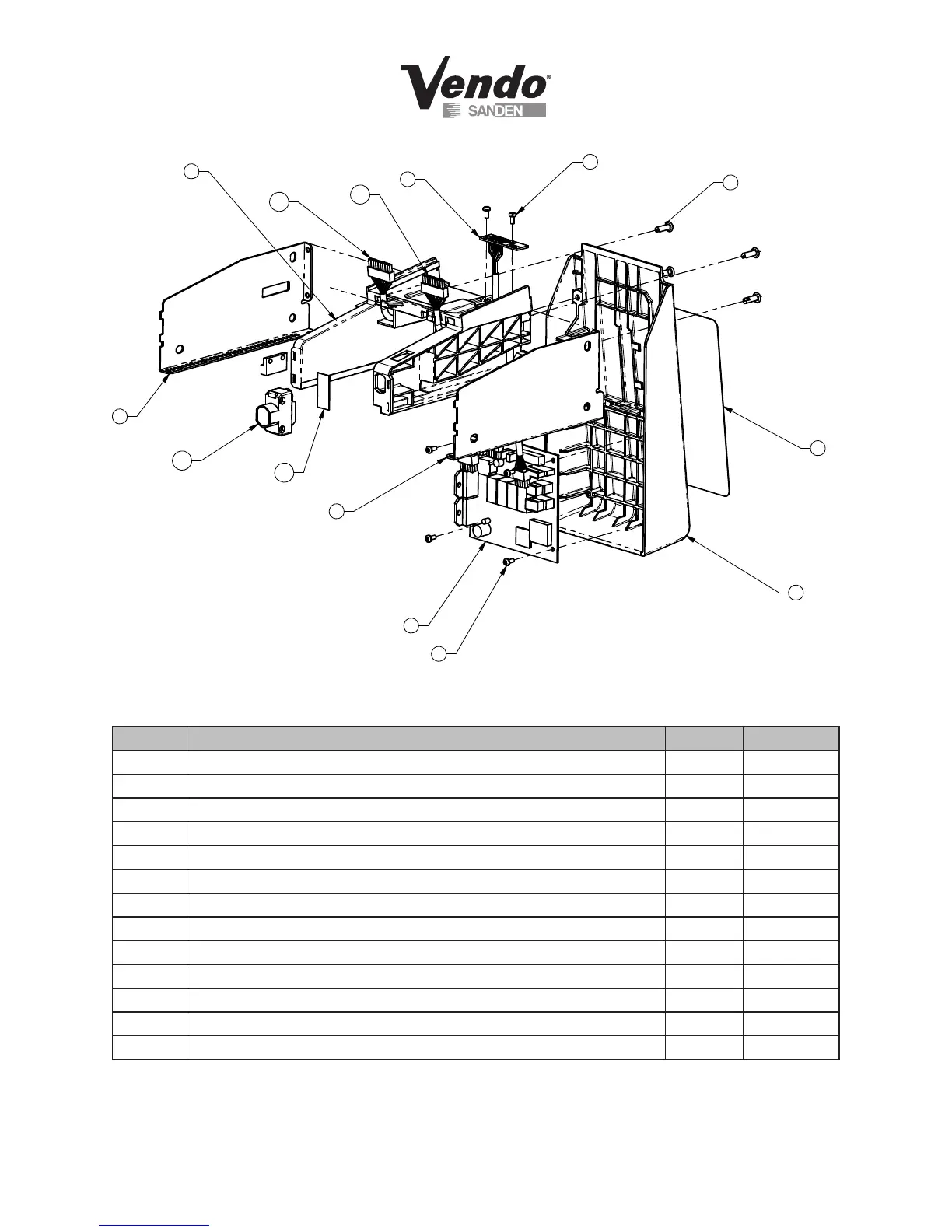

Z HOUSING ASSEMBLY
7
5
1
2
3
6
7
8
4
9
10
11
12
13
ITEM NO DESCRIPTION QTY PART NO
1 HOUSING - Z AXIS 1 1125085
2 RAIL - RIGHT 1 1125081-1
3 RAIL - LEFT 1 1125081
4 COVER - BACK 1 1125055
5 PC CONTROLLER - HAND 1 1128355
6 PC BOARD ASSY - X CAR. 1 1125518
7 TAPPING SCREW - #4 PLASTITE 6 V802186
8 SCREW, # 8 - 10 X 1/2” LG 4 V802214
9 DECAL - BACK COVER 1 *
10 HARNESS - HAND - POWER 1 1126309
11 HARNESS - HAND - DATA 1 1126310
12 SENSOR HARNESS ASSY 1 1126113
13 SHIM, FORWARD OPTIC, GFV 1 1127871
* NOTE: WHEN ORDERING THE DECAL - BACK COVER, PLEASE PROVIDE 9-CODE AND STYLE.
