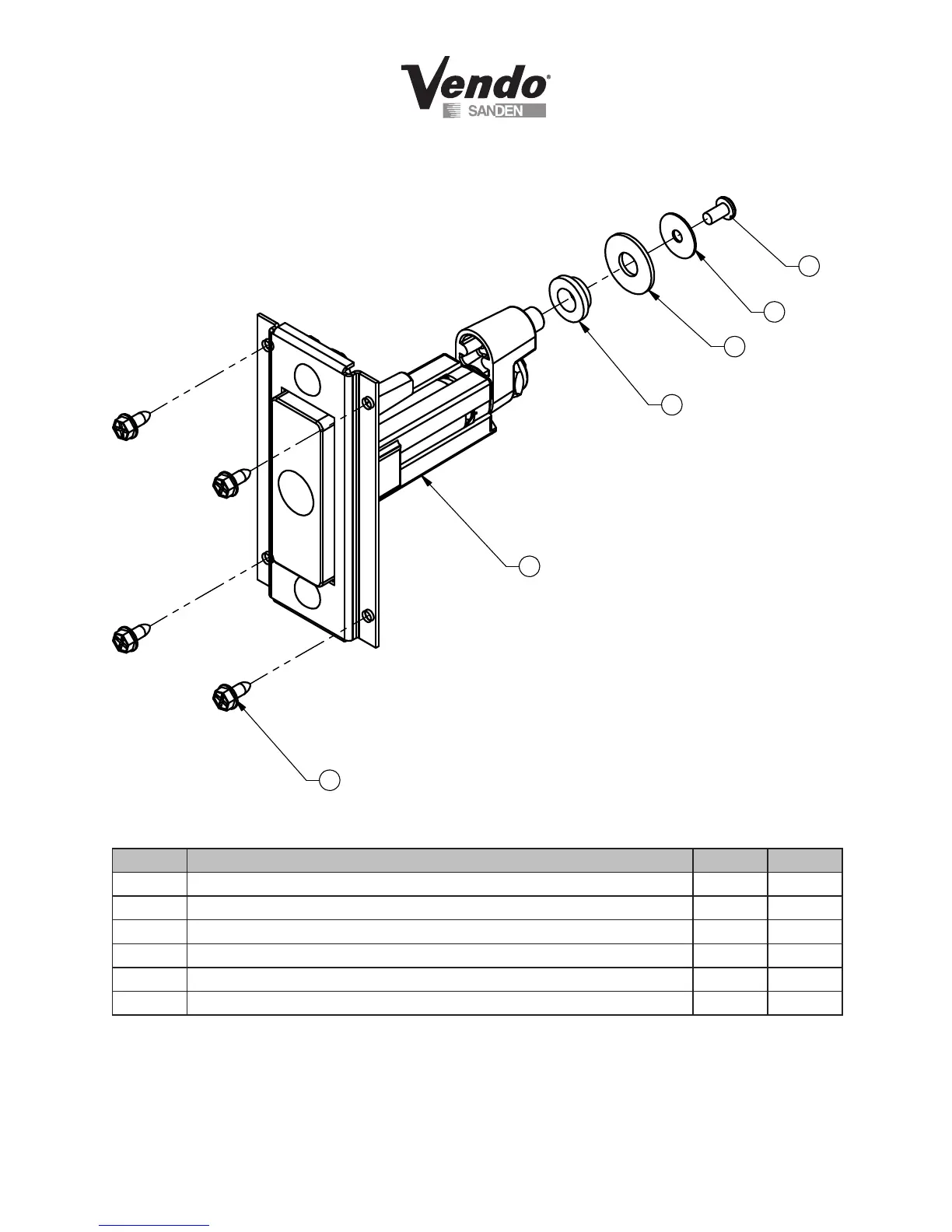

D-24
05/2006
T
-HANDLE LOCK
ASSEMBL
Y
1
6
2
3
4
5
ITEM NO
DESCRIPTION
QTY
P
ART
NO
1
T
-HANDLE
ASSY
, GFV
1
1
127406
2
SHOULDER SP
ACER, LOCK CAM
1
1
124527
3
W
ASHER - 3/8, B PLAIN FLA
T
1
V801491
4
W
ASHER,13/64, LEWIS#24082-200
1
389026
5
SCREW -10-32 X .375, CR P
AN H STL
MACH
1
V800128
6
SCREW - #10 T
APPING - TYPE
A
4
V802141
96
98
Table of Contents
Default Chapter
2
Table of Contents
2
Table of Contents
4
Safety
4
Commitment to Safety
5
Vendor Installation
6
Electrical Hazards
10
Mechanical Hazards
13
Refrigeration Hazards
14
Temperature Hazards
14
Substitutions and Modifications
15
Consumer Safety Warning
17
Parts, Sales, and Service Centers
18
General Information
21
Initial Set-Up
23
Tray Label Installation
25
Loading Instructions
26
Vend Mechanism Part Description
26
Cleaning Information
29
Programming
29
Vec 15 Programming Operation
30
Diagnostics
31
Coin Payout
31
Tube Fill
32
Test Mode
32
Calibration
35
Cash Data
39
Sales Data
39
Discount Counter
39
Free Counter
40
Set Price
40
Configuration
40
Door Closed Password
43
Set Language
44
Set Clock
44
Lighting
45
Refrigeration
46
Sales Block 1
49
Discount
52
Override
55
Custom Message
56
Return
56
Cabinet Parts
60
Cabinet Assembly
60
Refrigeration Assembly
61
Lighting Assembly
62
Power Distribution Assembly
64
Harness Quick Guide
67
Shelves & Trays Parts
69
Tray Assembly
72
Door Parts
74
Door Assembly
76
Hand Assembly
80
Z Housing Assembly
81
Y Rail Assembly
87
Rail Assembly
87
Keypad Assembly
90
Coin Entry & Coin Return Assembly
92
Delivery Hopper & Flap Assembly
94
Delivery Hopper Assembly
96
T-Handle Lock Assembly
97
Maintenance
99
Preventative Maintenance Suggestions
100
Lubrication Guide
100
Refrigeration Operation
101
Refrigeration Parts Description
104
Troubleshooting
108
Error Codes
108
