OPERATIONAL CONTROLS
Operation - 24

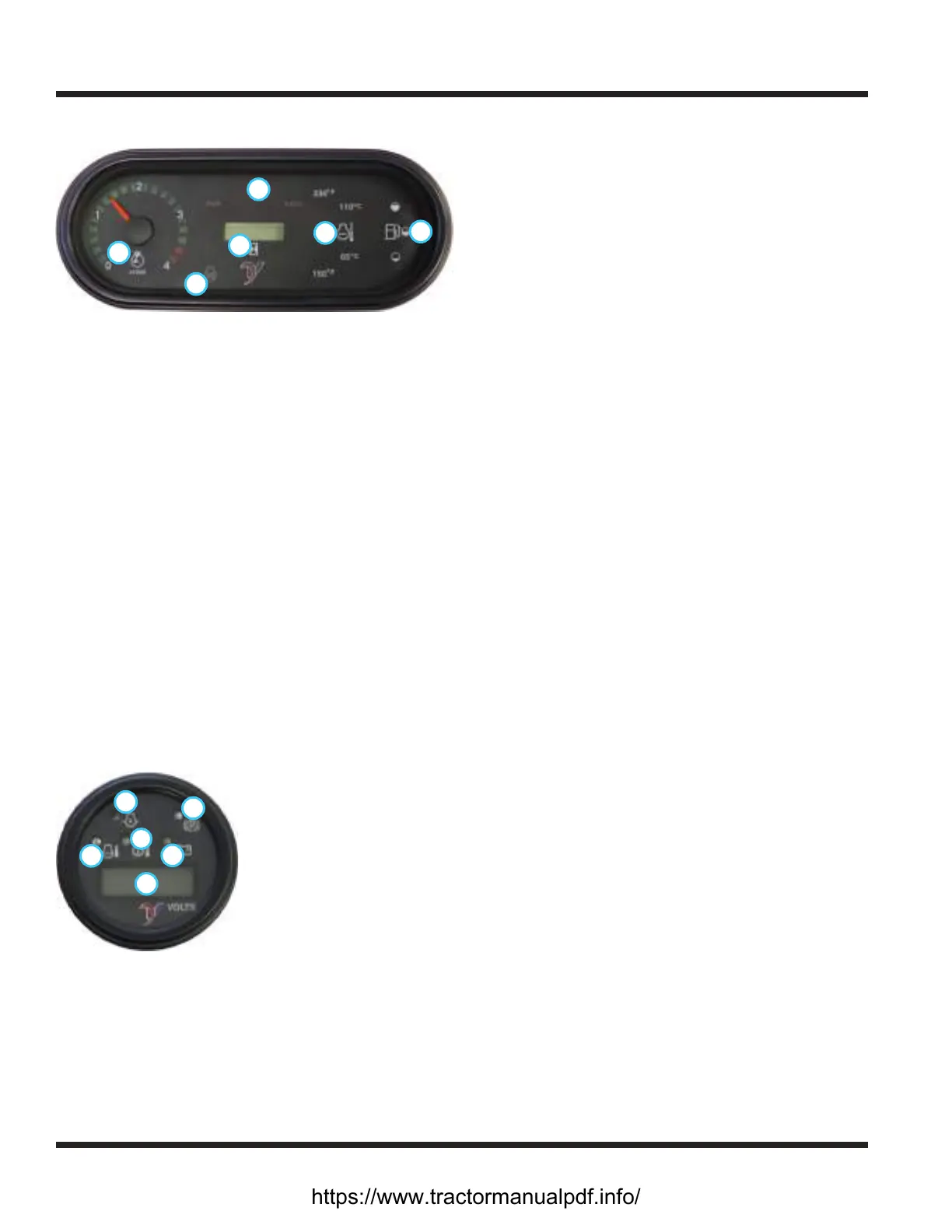

Information Cluster Gauge (A)
1
2
3
4
5
6
1. Tachometer 4. Water Temperature Gauge
2. Speedometer 5. Fuel Gauge
3. Hour Meter 6. Glow Plug Indicator Light
The information cluster gauge contains a tachometer,
speedometer, hour meter, water temperature gauge,
fuel gauge, and glow plug indicator light.
The tachometer displays the engine speed in RPM.
The speedometer displays the speed of the power
unit. The speedometer can be set to display either
miles per hour (mph) or kilometers per hour (km/h).
The hour meter records the accumulated time the
ignition key has been switched to the On position.
The water temperature gauge displays the tempera-
ture of the engine cooling system.
The fuel gauge displays the level of fuel in the tank.
The glow plug indicator light indicates activation of
the glow plugs for preheating the engine. The glow
plugs activate when the key is turned to the On posi-
tion. When the glow plug light turns o, the engine is
ready to start.
Warning Cluster Gauge (B)
1
2
3
4
5
6
1. Volt Meter
2. Parking Brake Indicator Light
3. Engine Oil Low Pressure Warning
Light
4. Water High Temperature Warning
Light
5. Hydraulic Fluid High Temperature
Warning Light
6. Low Voltage Warning Light
The warning cluster gauge contains a volt meter, a
parking brake indicator light, an engine oil low pres-
sure warning light, a water high temperature warning
light, a hydraulic uid high temperature warning light,
and a low voltage warning light.
The volt meter displays the voltage level of the charg-
ing system.
The parking brake indicator light activates when the
parking brake is engaged.
The engine oil low pressure warning light activates
when the engine oil pressure is below safe levels. The
light comes on when the ignition key is switched to
the On position and stays illuminated until the engine
is started and safe oil pressure develops. If this light
comes on during operation, shut o the engine im-
mediately. Do not restart the engine until the problem
has been located and corrected.
The water high temperature warning light activates
when the temperature of the engine cooling system
reaches unsafe levels. If this light comes on during
operation, park the power unit, turn the PTO o, move
the throttle lever to the low idle position, and allow the
engine to cool. Check the radiator screen and clean, if
necessary. If the engine temperature continues to rise,
shut o the engine. If the engine continually overheats,
refer to the troubleshooting section for possible prob-
lems.
The
activates when the hydraulic uid temperature reach-
es unsafe levels. If this light comes on during opera-
tion, park the power unit and move the throttle lever
to the low idle position. Check the hydraulic cooling
fan to ensure it is operating properly and refer to the
troubleshooting section for possible problems.
The low voltage warning light activates when the
voltage drops to unacceptable levels. If this light
comes on, shut o any unnecessary lights and ac-
cessories to reduce the current draw. If the voltage
continues to drop, park the power unit, shut o the
engine, and turn the ignition key to the O position.
Refer to the troubleshooting section for possible
problems.
