OPERATIONAL CONTROLS
Operation - 33
Back Up Alarm (UU)
The back up alarm emits an intermittent signal when
the power unit is operated in reverse to alert nearby
persons that the power unit is backing up.
Dual Hydraulic Front Coupler Switch (VV)
The optional switch handle is part of the dual front
hydraulic auxiliary kit and is used to select which set
of quick couplers is controlled by the secondary SDLA
lever. The secondary SDLA lever operates the quick
couplers with the red and yellow indicators until the
button on the handle is pressed. Press and hold the
button to switch the secondary SDLA lever to operate
the quick couplers with the white and black indicators.
Release the button to return to normal operation.
Seat Slide Lever (WW)
Lift up the seat slide lever to release the seat lock.
Move the seat forward or backward to the desired po-
sition and release the seat slide lever to lock the seat
in place.
Lumbar Support Knob (XX)
1
0
2
2
1
The lumbar support knob
adjusts the curvature of the
backrest in either the upper
or lower part of the backrest.
Position 0 provides minimal
support.
Position 1 provides maximum
curvature in the upper part of the backrest.
Position 2 provides maximum curvature in the lower
part of the backrest.
Backrest Angle Lever (YY)
Lift up the backrest angle lever to release the backrest
catch. Move the backrest to the desired position and
release the backrest angle lever to lock the backrest in
place.

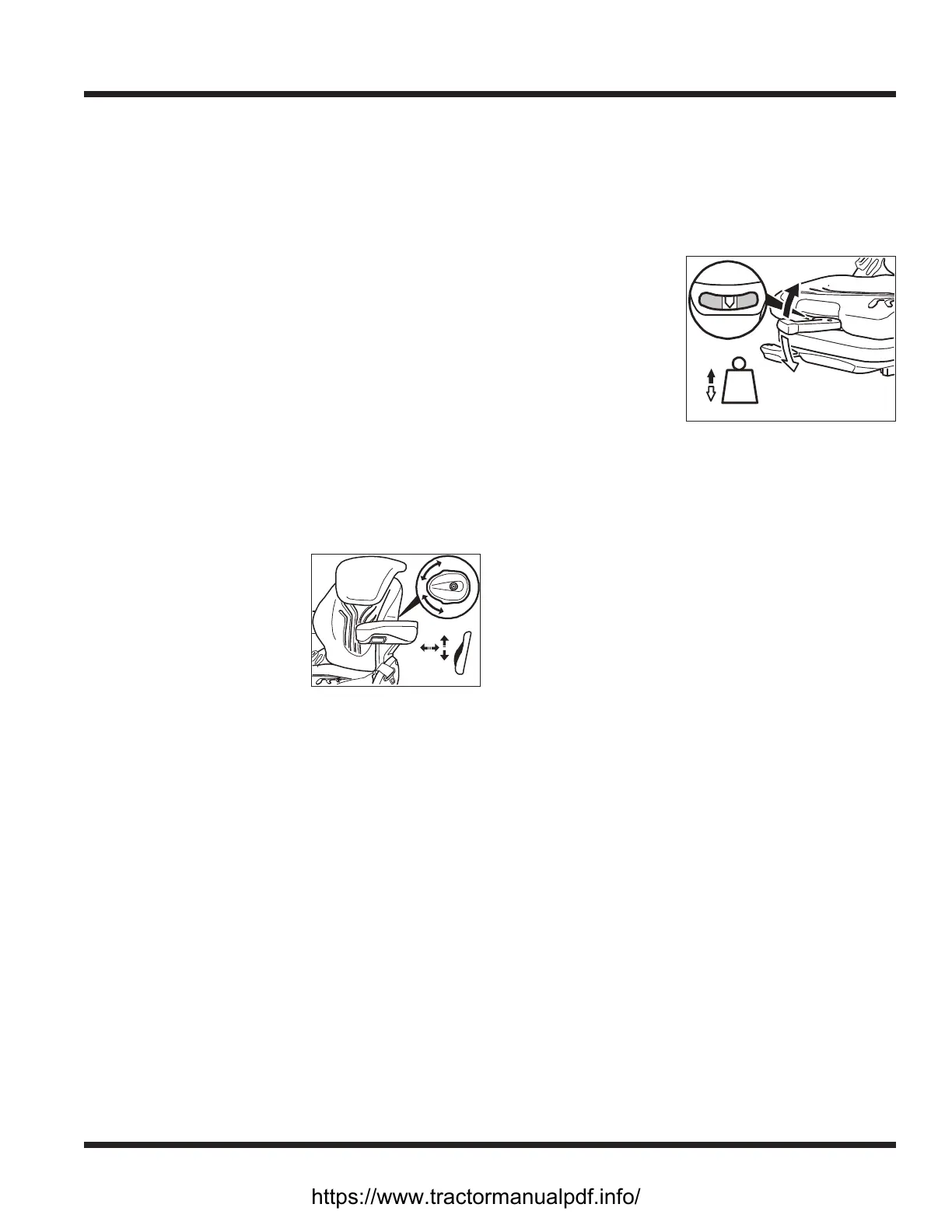

Weight Adjustment Lever (ZZ)
min.
max.
max.
min.
The weight setting must
be adjusted with the
operator sitting on the
seat. The weight setting
should be checked and
adjusted as necessary
each time the power
unit is operated.
Fold the weight adjust-
ment lever out and move it up or down to adjust the
weight setting until the arrow is in the middle of the
viewing window.
After adjusting the weight setting, fold the adjust-
ment lever completely into the locking position.
Optional Armrest Angle Knob (BA)
The angle of the optional armrests can be adjusted
individually by rotating the knob on the underside of
the armrest to raise or lower the front of the armrest.
