Service Access Points
Throughout the service chapter, various access points
are referred to. The following list and images identify
shields and covers that may need to be removed or
opened during service.

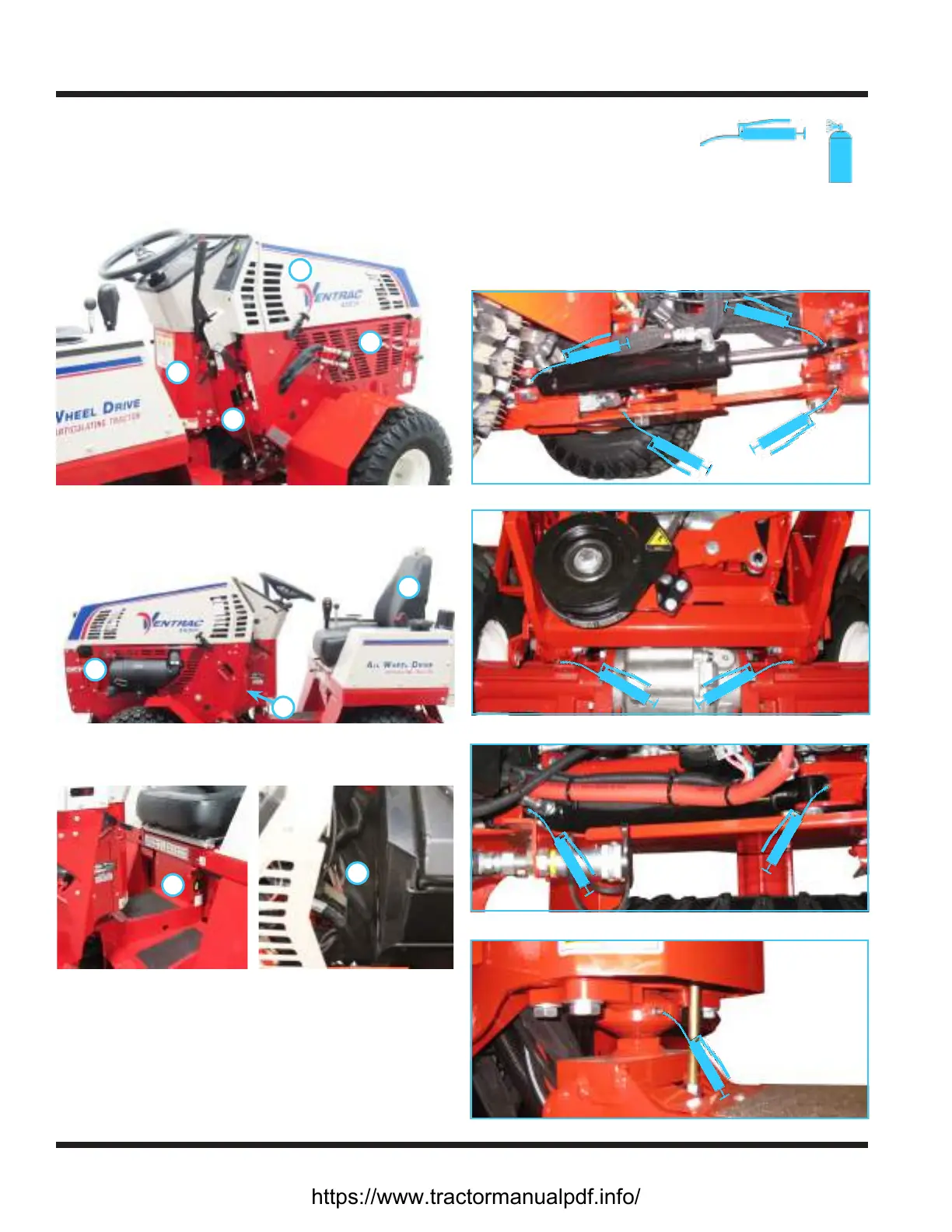

Lubrication Locations
Lubrication is required at the
Grease
Silicone based
Spray Lube
following locations. Refer to
the maintenance schedule for service
intervals and the amount of grease.
Refer to the uid capacities and
specications section for the grease type.
Steering Cylinder and Connector Link
Front Hitch
Lift Cylinder
Center Pivot
1
2
3
1. Engine Hood 3. Right Pump Access Cover
2. Pump Cover 4. Right Engine Cover
5. Left Engine Cover 7. Seat
6. Hydraulic Filter Access Cover
4
5
6
7
8. Lower Rear Frame Cover 9. Debris Barrier
8
9
