Ventrac 4500P - 70.4140 Slope Gauge Settings and Operation

GENERAL OPERATION
Operation - 41
Maintain sucient fuel in the tank to ensure continu-
ous operation.
Cease operation if the power unit stability is question-
able, or if the operator is uncomfortable or unsure of
continuing safely.
Attachments can aect the stability of the power unit.
Each attachment will aect the power unit dierently.
Increase the amount of weight being transferred to
the power unit from the attachment while operating
on slopes. Refer to the Weight Transfer section.
Always operate carefully and in a manner that does
not compromise safety.
Always keep the roll bar in the upright, locked posi-
tion and fasten yourself securely with the seat belt.

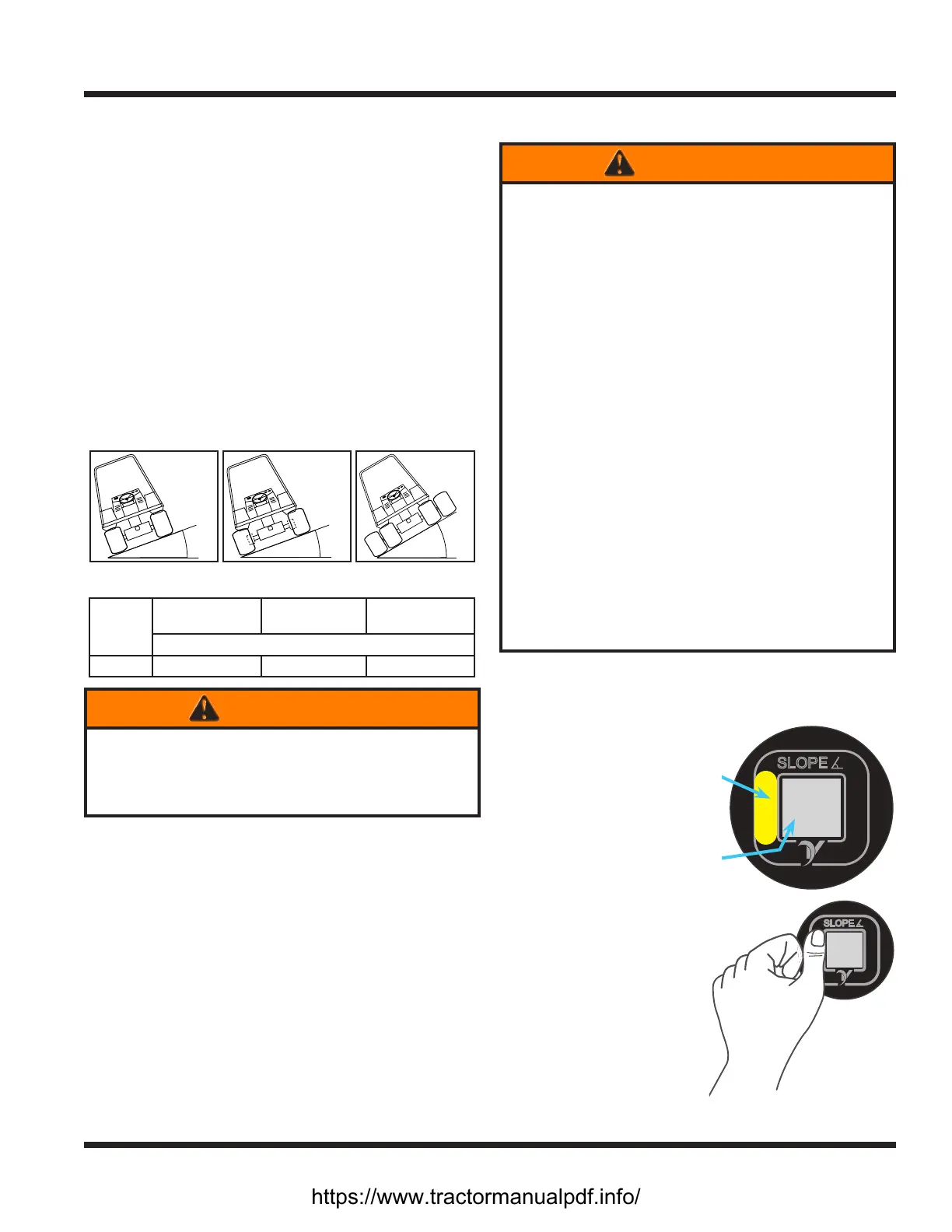

Refer to the following illustrations for power unit ca-
pability with dierent equipment options.
20º
25º
30º
20º
25º
30º
20º
25º
30º
Single Tires Wheel Extensions Dual Wheels
Model
Single Tires
Wheel
Extensions
Dual Wheels
Any Direction
4500 20° 25° 30°
WARNING
Some attachments or accessories have further limi-
tations on the maximum angle of operation. Refer
to the attachment operator’s manuals for limita-
tions.

WARNING
Do not attempt to enter or use the options menu
while driving the power unit. Park the power unit in
a safe location and engage the parking brake before
entering the menu to make changes.
Always make sure the slope gauge is calibrated cor-
rectly and the slope limit set-points are set to match
the power unit conguration prior to operating the
power unit.
Never set the slope limit set-points for the audible
or visual alerts to a higher value than the power
unit conguration can safely handle. Refer to the
Operating On Slopes section of this manual and the
safety section of the attachment’s manual to deter-
mine the correct slope limit.
When changing attachments and/or power unit
conguration, always update the audible and visual
warning set-points to reect any changes to the
maximum slope rating.
Be aware of whether the audible alarm is turned on
(enabled) or muted.
Do not depend solely upon the slope gauge alarm
to alert you to dangerous situations. Do not operate
on slopes that make you feel uncomfortable.
Operation
The slope gauge is equipped with a sensor to the left
of the display screen.
Hold your thumb over
SLOPE
SLOPE
0
°
SLOPE
0
°
SLOPE
0
°
SLOPE
0
°
Hold
Up Swipe
SLOPE
0
°
Hold
SLOPE
SLOPE
0
°
SLOPE
0
°
SLOPE
0
°
SLOPE
0
°
Hold
Up Swipe
SLOPE
0
°
Sensor Area
Display Screen
the sensor for the required
time period to enter the
options menu or to make a
selection. Follow the
instructions on the display
screen.
