Ventrac 4500P - Rear Auxiliary Quick Couplers (MM); Volt Rear Switches and 4-Pin Socket (NN, OO, and PP); Volt Front Switches and 4-Pin Socket (QQ, RR, and SS); Electric PTO Remote Socket (TT)

OPERATIONAL CONTROLS
Operation - 32
Rear Auxiliary Quick Couplers (MM)
The rear auxiliary hydraulic quick couplers are used
to control auxiliary functions of attachments that are
being used with the 3 point hitch. The 3 point hitch
includes two sets of hydraulic quick couplers.
12 Volt Rear Switches and 4-Pin Socket
(NN, OO, and PP)
ATTENTION
The 4-pin socket is designed for use with Ventrac
original equipment only.
This connector is rated for 20 amp maximum
current draw. The engine alternator and/or battery
capacity determine allowable continuous draw.
1 2
3 4

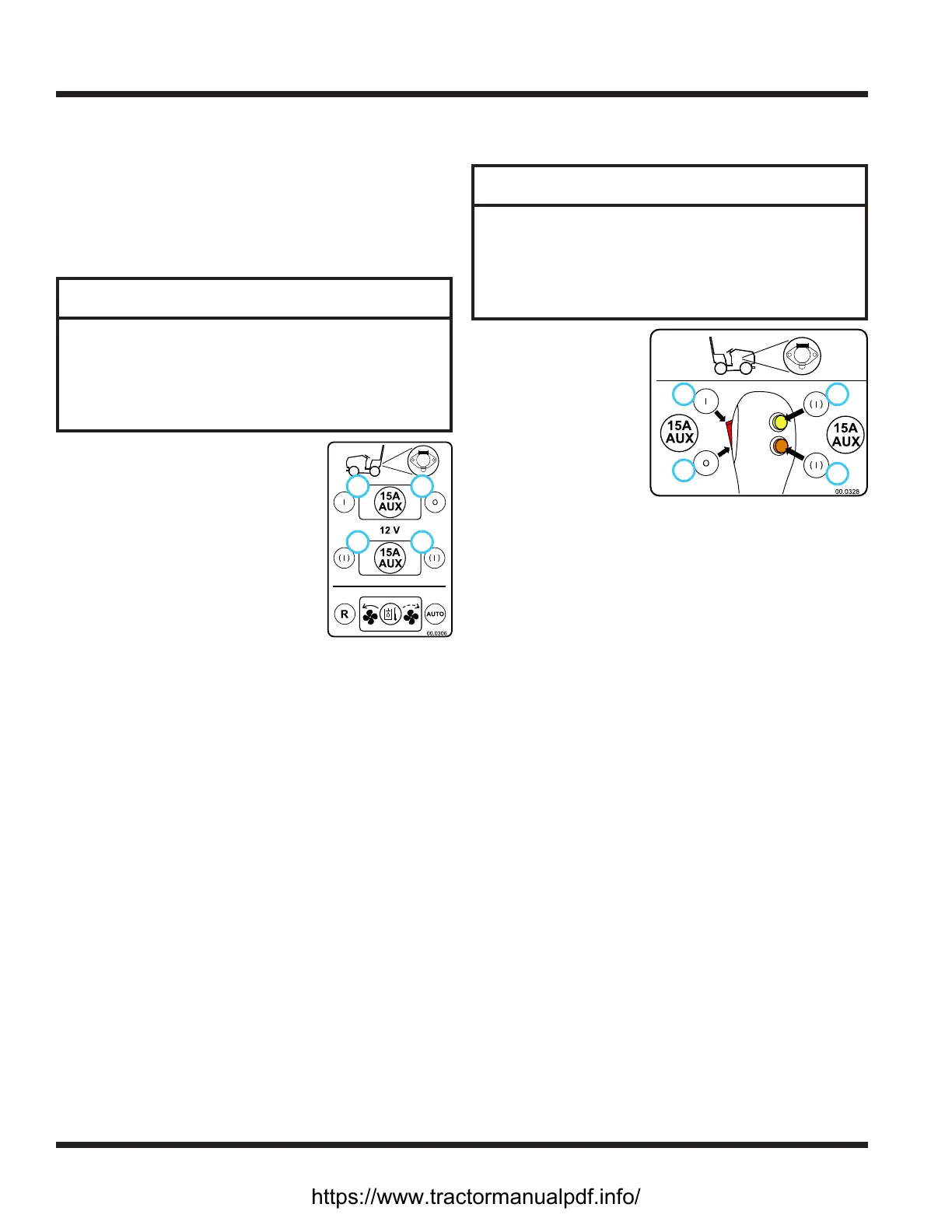

The rear 4-pin socket provides
electrical power to rear mounted
attachments that are equipped
with electrical controls. (e.g. ES220
spreader). The switches turn o and
on the electrical power to the rear
4-pin socket.
Press the right side (1) of the up-
per switch to turn on the electrical
power to the 4-pin socket. Press the
left side (2) of the switch to turn o
the electrical power.
Press and hold either the right (3) or left (4) side of
the lower momentary switch to turn on the electrical
power to the 4-pin socket. Release the switch to turn
o the electrical power.
12 Volt Front Switches and 4-Pin Socket
(QQ, RR, and SS)
ATTENTION
The 4-pin socket is designed for use with Ventrac
original equipment only.
This connector is rated for 20 amp maximum
current draw. The engine alternator and/or battery
capacity determine allowable continuous draw.
1
2
3
4
The front 4-pin socket
provides electrical
power to attachments
that are equipped
with electrical controls
(e.g. broom rotation
actuator, snow blower
discharge chute angle).
The switches turn o
and on the electrical
power to the front 4-pin socket.
Press the top (1) of the rocker switch to turn on the
electrical power to the 4-pin socket. Press the bottom
(2) of the rocker switch to turn o the electrical power.
Press and hold either the top (3) or bottom (4) mo-
mentary switch to turn on the electrical power to
the 4-pin socket. Release the switch to turn o the
electrical power.
Electric PTO Remote Socket (TT)
The electric PTO remote socket is used with attach-
ments that are equipped with a remote PTO switch
(e.g. HG150 generator), allowing the operator to shut
o the power unit PTO from the attachment.
