SERVICE
Service - 60

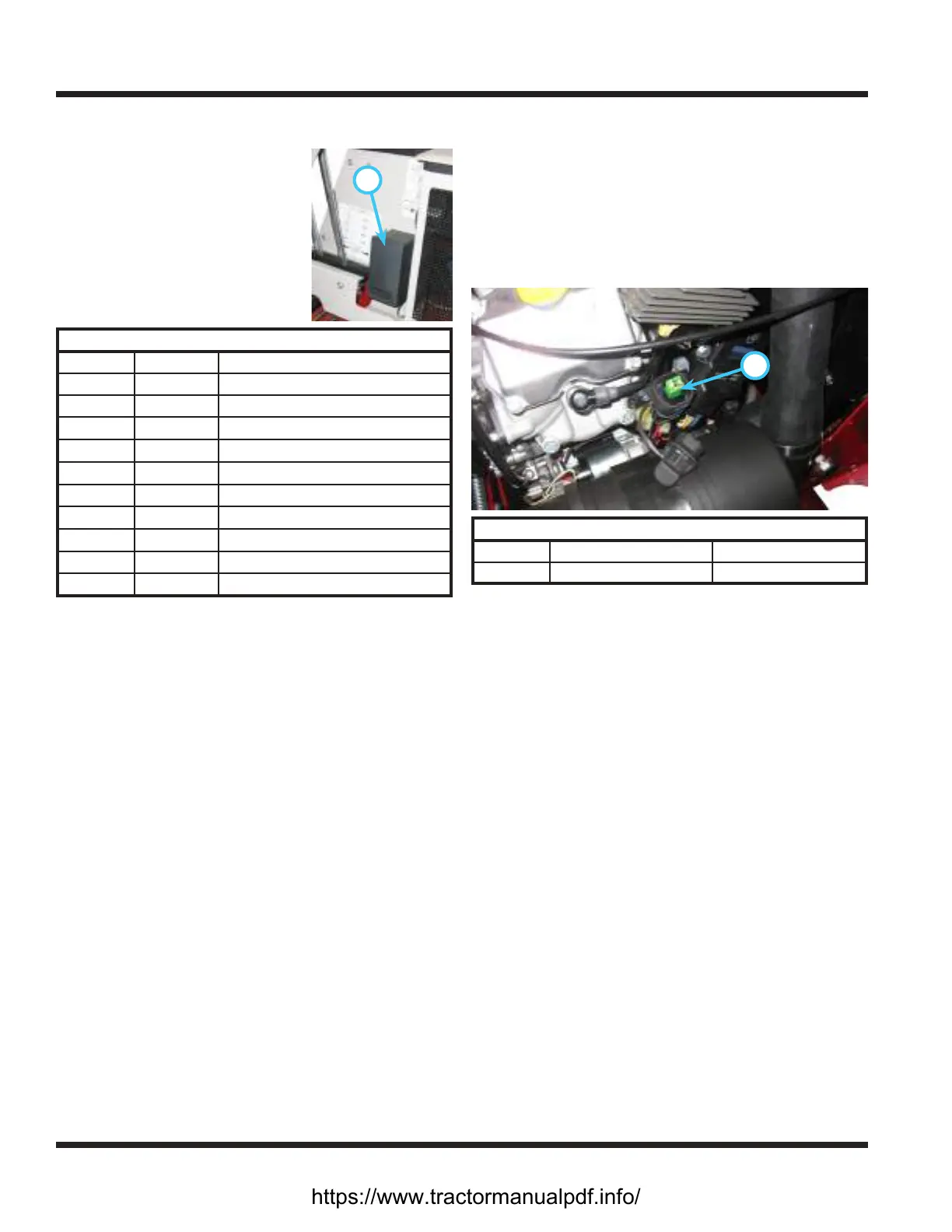

Replacing Fuses (Rear Fuse Panel)
A
1. Turn the battery disconnect
switch to the O position.
2. Tilt the seat forward and
fasten in place with the seat
prop.
3. Remove the sealed cover (A)
from the fuse panel.
4. Identify and remove the de-
fective fuse from the socket.
Rear Fuse Panel (Mini Fuse)
Position Fuse Circuit
1* 25 amp (CB) Spreader
2* 30 amp (CB) Cab
3* 10 amp Vibrator for Spreader
4* 20 amp 12V Rear
5* 5 amp Slope Indicator
6* 5 amp 12V Front 1
7* 15 amp 12V Front 2
8* 10 amp Hydraulic Aux
9 5 amp Seat Switch Circuit
10 25 amp (CB)
Hydraulic Oil Cooler Fan
*Optional accessory
5. Insert a new fuse into the socket. Be sure the fuse
is the correct amperage or damage may occur to
the power unit.
6. Reinstall the sealed cover onto the fuse panel and
lower the seat back down to the operating position.
7. Turn the battery disconnect switch to the On
position.
Replacing Fuses (Engine)
1. If the power unit has been running, allow the
engine to cool.
2. Turn the battery disconnect switch to the O
position.
3. Remove the left engine cover.
4. Locate the fuse holder (A) and pull up on the tab
to remove the cover.
A
Engine Fuses
Position Fuse Circuit
A 40 amp J-Case
Charge
5. Remove the defective fuse from the socket.
6. Insert a new fuse into the socket. Be sure the fuse
is the correct amperage or damage may occur to
the power unit.
7. Reinstall the fuse cover.
8. Reinstall the left engine cover.
9. Turn the battery disconnect switch to the On
position.
