Removing and Installing the Hood

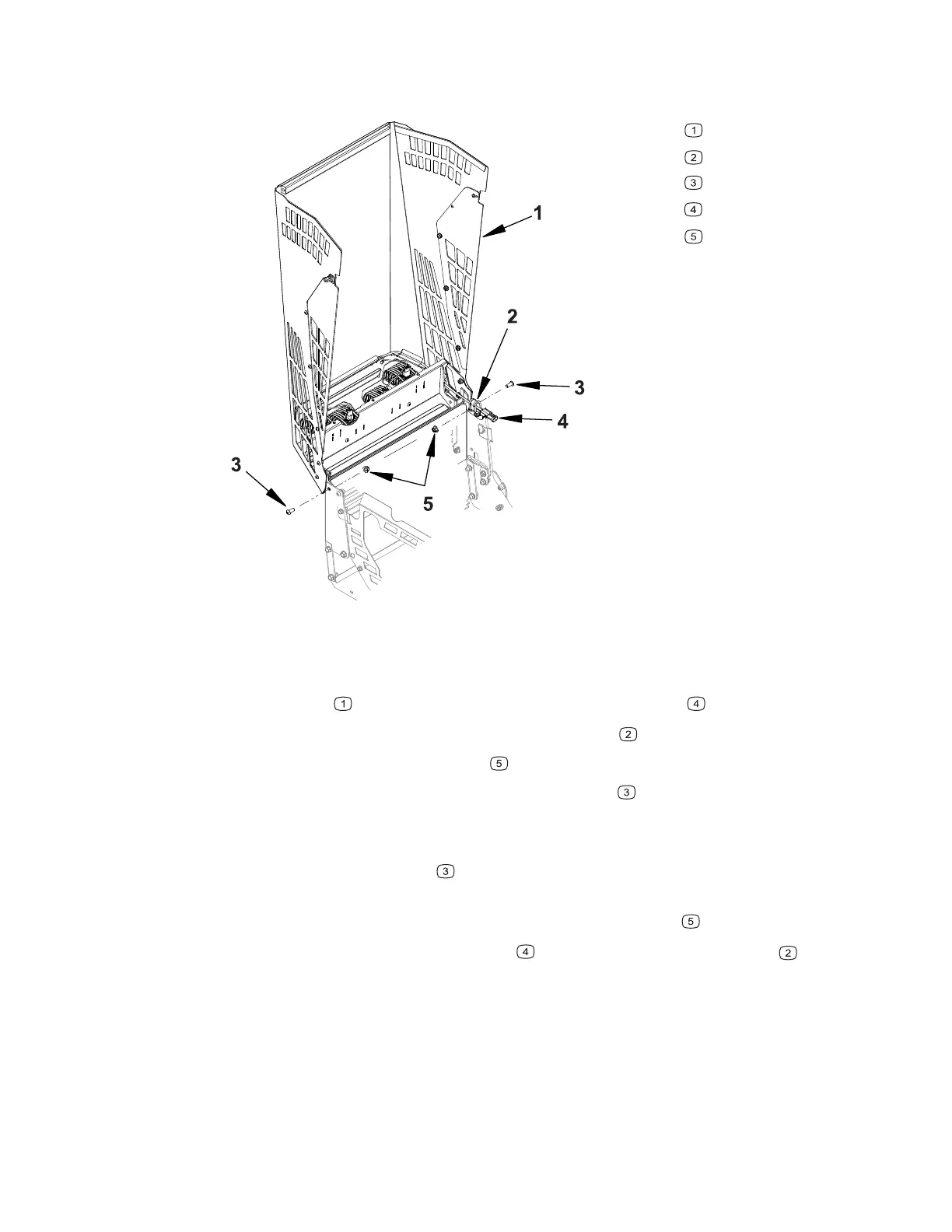

Figure 77
G427287
Hood
Cushioned clamp
Bolt
Headlight wiring harness
Locking flange nut
1. Park the machine on a level surface, lower any attachments to the ground,
engage the parking brake, and remove the key from the ignition.
2. Lift the hood
, disconnect the headlight wiring harness .
3. Remove the harness from the cushioned clamp
.
4. Remove the locking flange nuts
.
5. Lower the hood and remove the mounting bolts
, remove the hood from the
machine.
6. Position the hood on the machine aligning the mounting holes.
7. Install the mounting bolts
through the grill frame and into the hood hinge
assembly.
8. Carefully lift the hood and install the locking flange nuts
.
9. Route the headlight wiring harness
through the cushioned clamp and
connect the harness to the machine wiring harness.
10. Close the hood securely using the hood latches.
