Installing the High / Low Shift Cable (continued)
the shift cable until the pin may be inserted with no resistance. Secure the clevis
pin in place.
7. Place the high-low shifter in the high range position. Rotate the rear transaxle
until the high-low shifter can move freely between low and high settings on the
transaxle with no resistance.
Removing the Rear Weight Mount

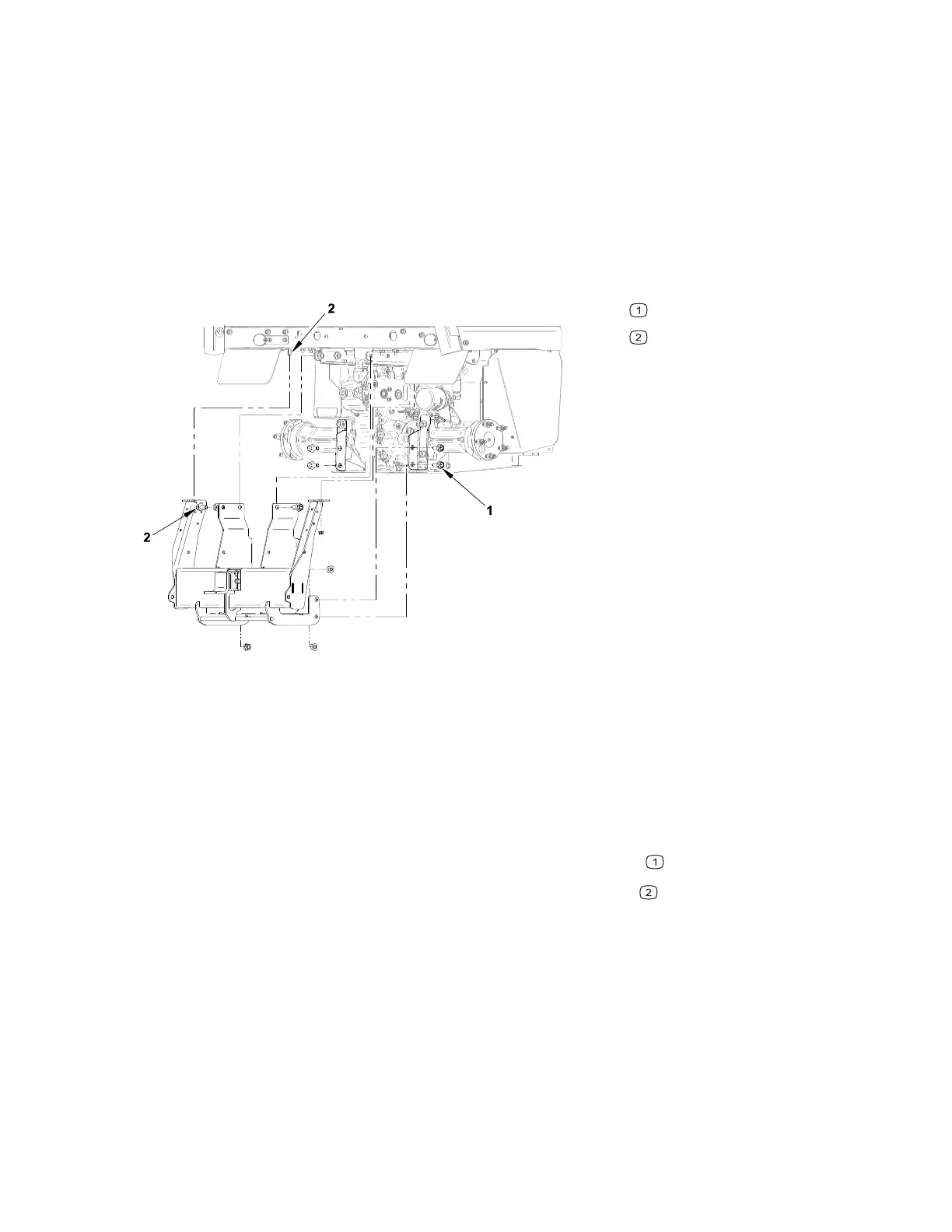

Figure 108
G443928
Lower mounting bolts
Upper mounting bolts
1. Remove any attachments from the machine, park the machine on a level surface,
engage the parking brake, remove the key from the ignition, and switch the circuit
breaker to the O
FF position.
2. Remove all weights from the rear weight mount.
3. Remove the left rear taillight.
4. Remove the rear transaxle skid plate.
5. Remove the four lower rear weight mount, mounting bolts
.
6. Remove the six upper rear weight mount, mounting bolts
.
7. Remove the rear weight mount from the machine.
Installing the Rear Weight Mount
1. Position the rear weight mount on the machine aligning the mounting holes.
2. Install the six upper mounting bolts Figure 108, item 1.
3. Install the four lower mounting bolts Figure 108, item 2.
4. Install the rear transaxle skid plate.
Chassis: Service and Repairs Page 7–44 4520Z
09.40001Rev 00
