Ventrac 4520Z User Manual

Service and Repairs
Removing the Front Axle Assembly
CAUTION
Before opening the hydraulic system, operate all the hydraulic controls to
release system pressure and avoid injury from the pressurized hydraulic fluid;
refer to Relieving Pressure from the Hydraulic System, page 5–2.

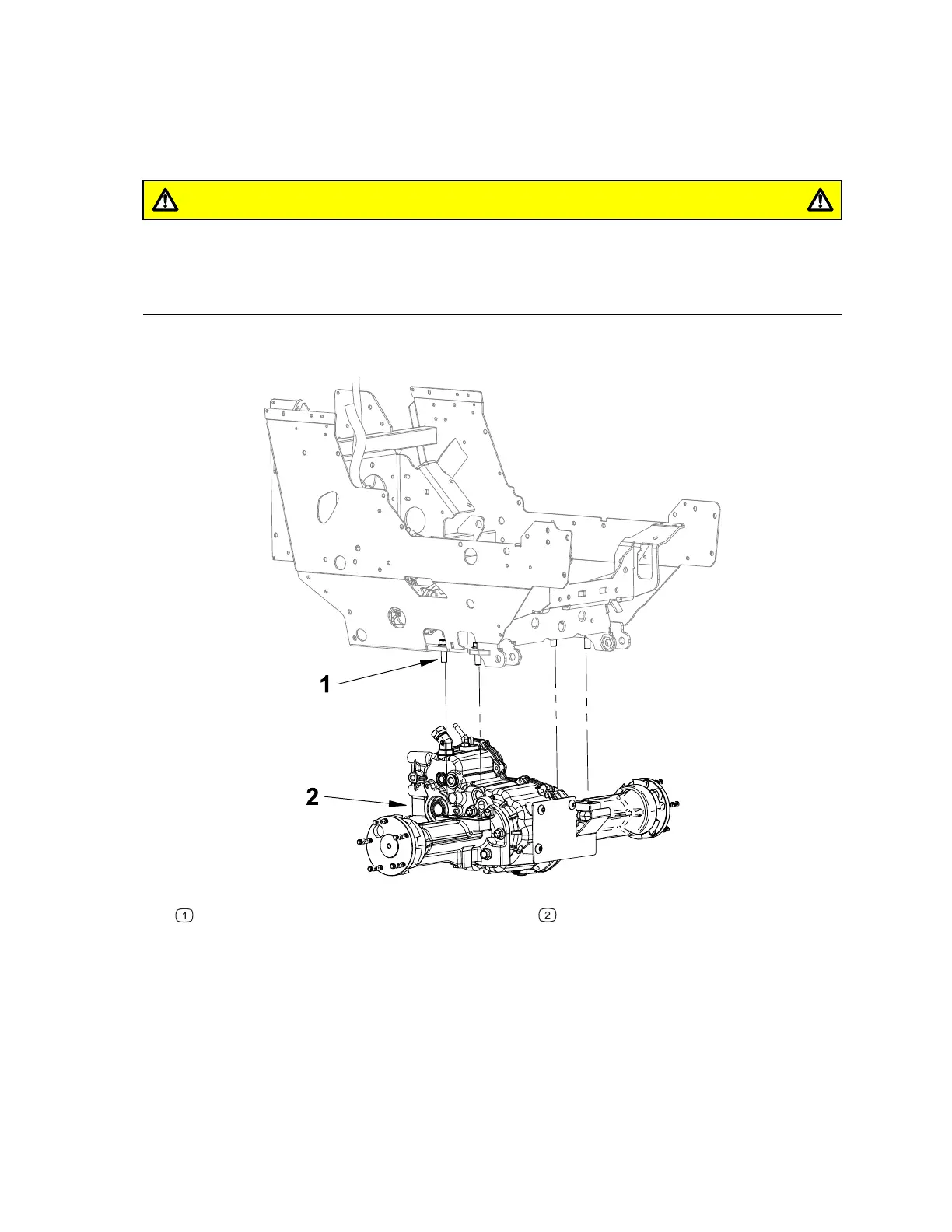

Figure 117
G446385
Mounting bolts
Transaxle
1. Remove any attachments from the machine, park the machine on a level surface,
engage the parking brake, and remove the key from the ignition.
2. Lift and securely support the front of machine; refer to Jacking Instructions, page
1–6.
3. Complete the following procedures before continuing.
A. Remove the front wheels; refer to Removing and Installing the Wheels, page
7–11.
Axles: Service and Repairs Page 8–4 4520Z
09.40001Rev 00
