Removing the Parking Brake Lever (continued)
5. Remove the cotter pin followed by the two washers and disconnect the parking
brake lever from the linkage.
6. Remove the parking brake lever mounting bolts
and remove the parking brake
lever from the machine.
Installing the Parking Brake Lever
1. Position the parking brake lever on the dash aligning the mounting holes, install
the mounting bolts.
2. Connect the parking brake lever to the linkage, install the two washers on the
clevis pin, secure the washers in place with a cotter pin.
3. Connect the parking brake switch wiring harness to the main wiring harness.
4. Install the parking brake cover.
5. Install the hydraulic pump cover.
Removing the Parking Brake Band

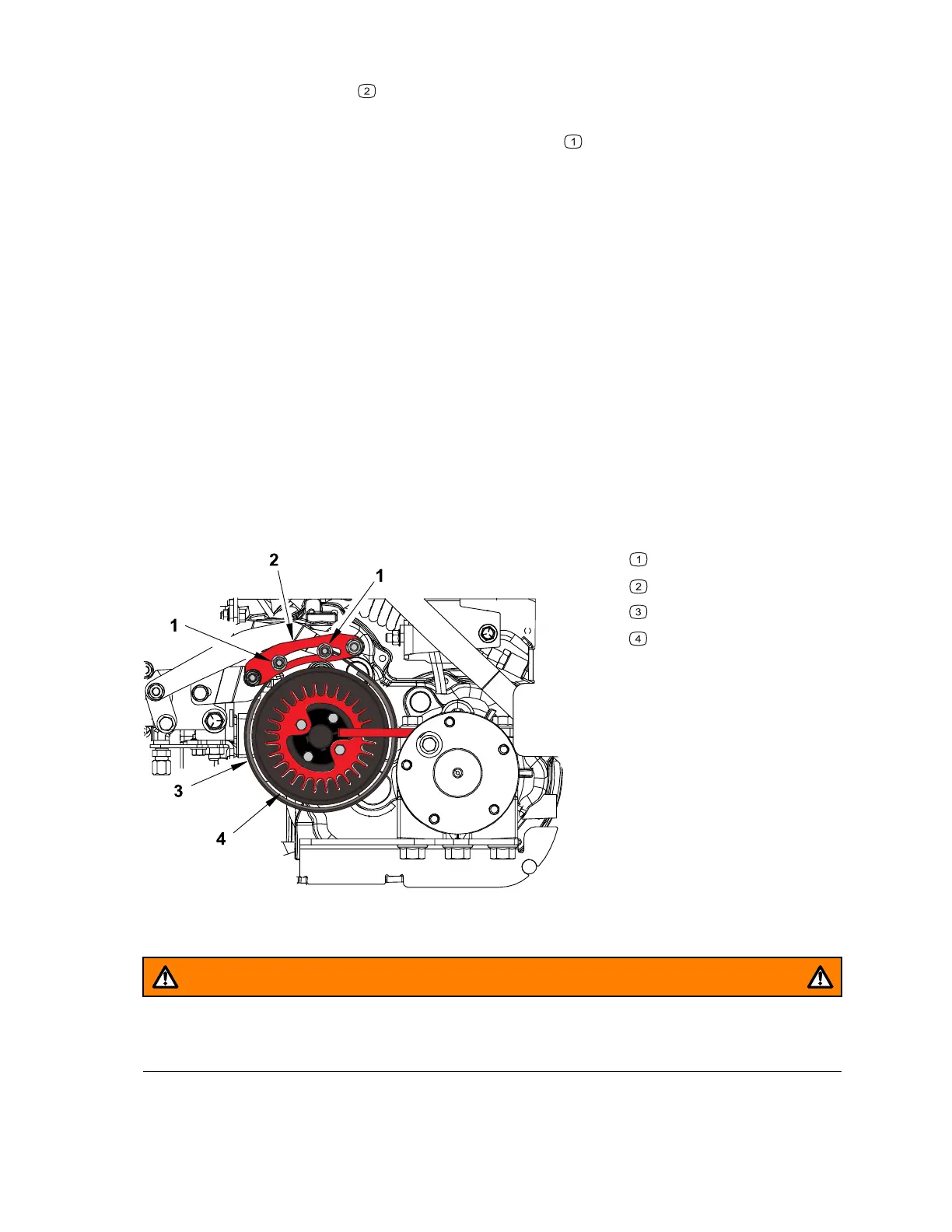

Figure 105
G441940
Mounting hardware
Brake band mount
Brake band
Air gap
WARNING
The parking brake must be disengaged as part of this procedure. Wheel chocks
must be used to prevent the machine from rolling forward or backward.
Chassis: Service and Repairs Page 7–40 4520Z
09.40001Rev 00
