Ventrac 4520Z - Wiring Diagram - Rear Harness (Serial # 02173-05664)

Ventrac 4520Z
266 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

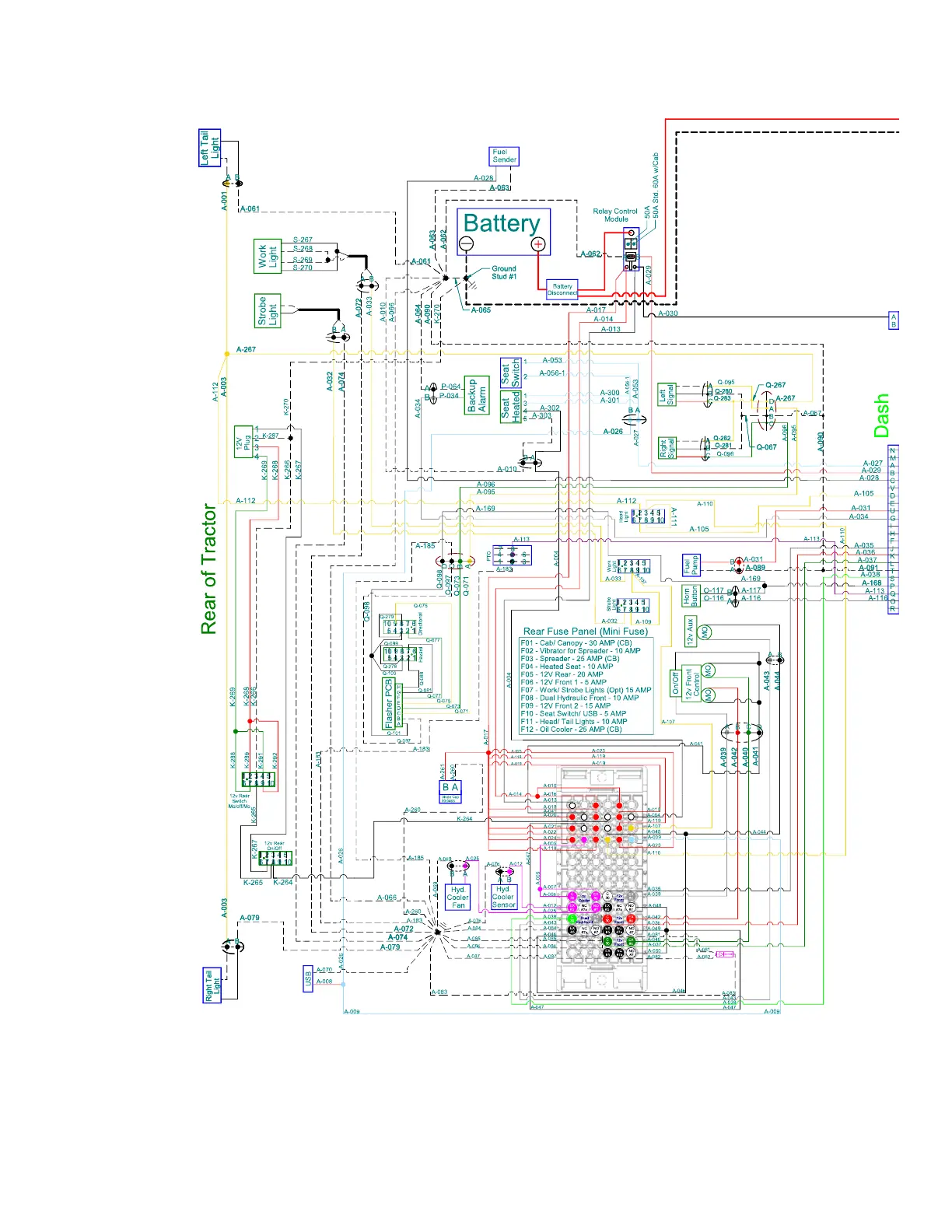

Wiring Diagram — Rear Harness (Serial # 02173–
05664)
G423987
4520Z Page 9–7 Appendix A: Wiring Diagram Reference Key (Serial #
02173–05664)
09.40001Rev 00
