TERMINAL SETUP
Examining Terminal Features
O
MNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE 15
Examining
Terminal
Features
Before you continue the installation process, notice the features of the
V
x
5xx/V
x
610 terminal (see Figure 1).

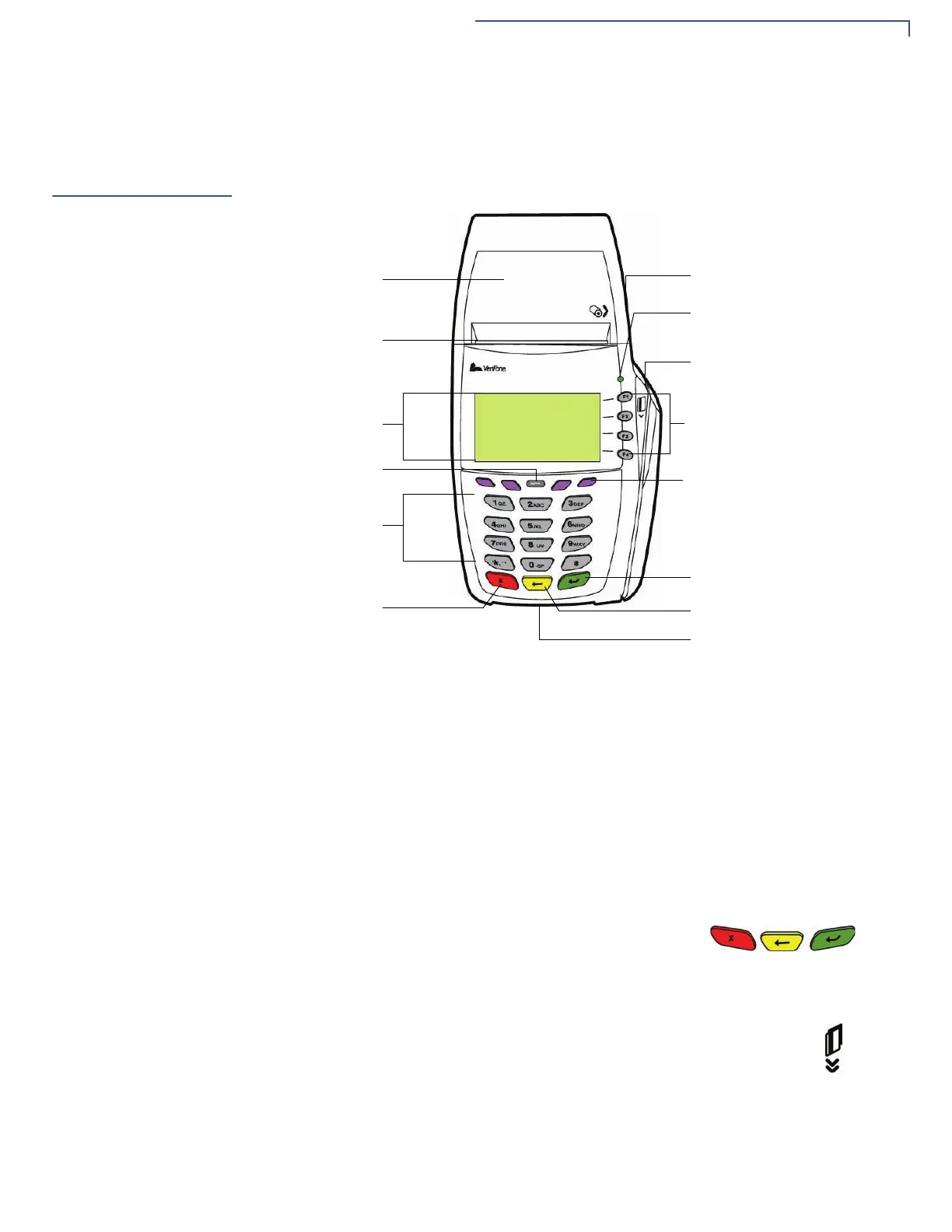

Figure 1 V
x
5xx/V
x
610 Terminal Features (Front Panel)
Front Panel
The front panel includes the following features:
• A terminal display, backlit LCD screen.
• Five types of keys:
a A 12-key, telephone-style keypad.
b Four ATM-style function keys, labeled F1 to F4, to the right of the LCD
screen.
c Four unlabeled, programmable function keys above the keypad.
d Three color-coded function keys below the
keypad (icons at right; from left to right:
CANCEL,
BACKSPACE/CLEAR, ENTER).
e An ALPHA key centered at the top of the keypad.
• A magnetic card reader, built into the right side. The icon at right
shows the proper swipe direction, with the stripe down and facing
inward, toward the keypad.
• A green indicator LED indicates power is ON.
• An internal thermal printer.
INTERNAL THERMAL
PRINTER
PRINTER COVER RELEASE
ATM-STYLE FUNCTION KEYS
TERMINAL DISPLAY
MAGNETIC CARD READER
PROGRAMMABLE FUNCTION
ALPHA KEY
TELEPHONE-STYLE
ENTER KEY
SMART CARD READER
KEYS
KEYPAD
CANCEL KEY
BACKSPACE/CLEAR KEY
GREEN INDICATOR LED
SERRATED METAL
STRIP
