TERMINAL SETUP
Using the V
x
610 Power Cradle
36 OMNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE
Using the V
x
610
Power Cradle
The power cradle serves both as a docking station and a battery charger for the
V
x
610 terminal.
To Connect the Power
Cradle

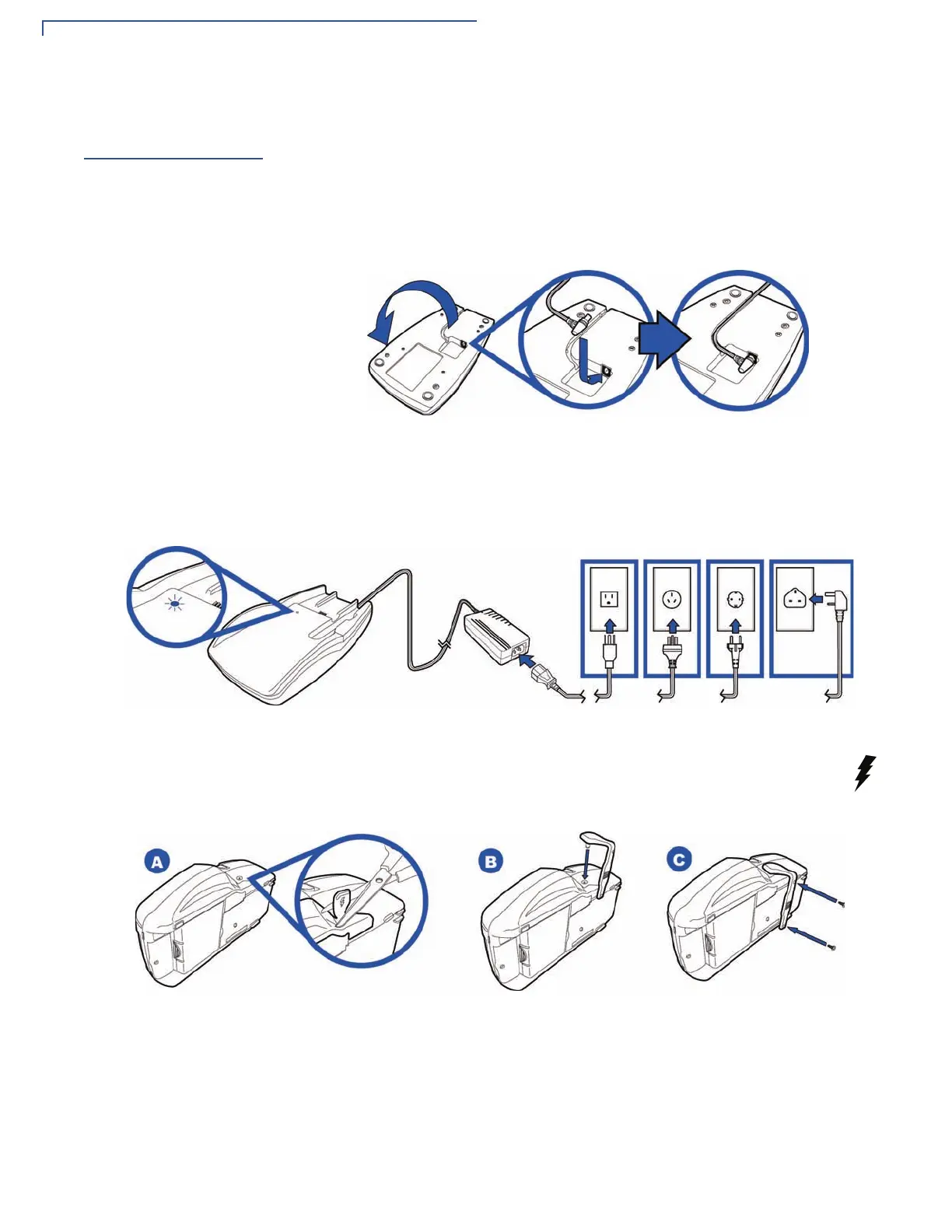

1 Turn the cradle upside down and then insert round barrel connector into the
power port. Route the cable through the cable retainer where provided to
secure the power cord.
Figure 33 V
x
610 Power Cradle Connection
2 Insert the AC power cord into the power pack and then plug the AC power
cord into a wall outlet or power surge protector. The LED lits up to indicate that
it is ready for charging.
Figure 34 V
x
610 Power Cradle Connection
3 Remove the protector, identified by the icon at right. Attach the
charging strap and then install the screw on the bottom of the power
cradle to secure the strap.
Figure 35 V
x
610 Power Cradle Connection
To Next Page
