TERMINAL SETUP
Examining Terminal Features
16 OMNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE
• A smart card reader, built into the front of the terminal. The icon
shown at right indicates proper card position and insertion
direction.
• A SAM (security access module) compartment, built into the bottom of the
terminal. The V
x
5xx/V
x
610 terminal contains MSAM cardholders to support
multiple stored-value card programs or other merchant card requirements.
Connection Ports
Turn the terminal upside down to view the connection ports. Notice that the ports
are recessed. Different ports are provided to connect the terminal to a
communications line, optional peripheral devices, and the power supply.

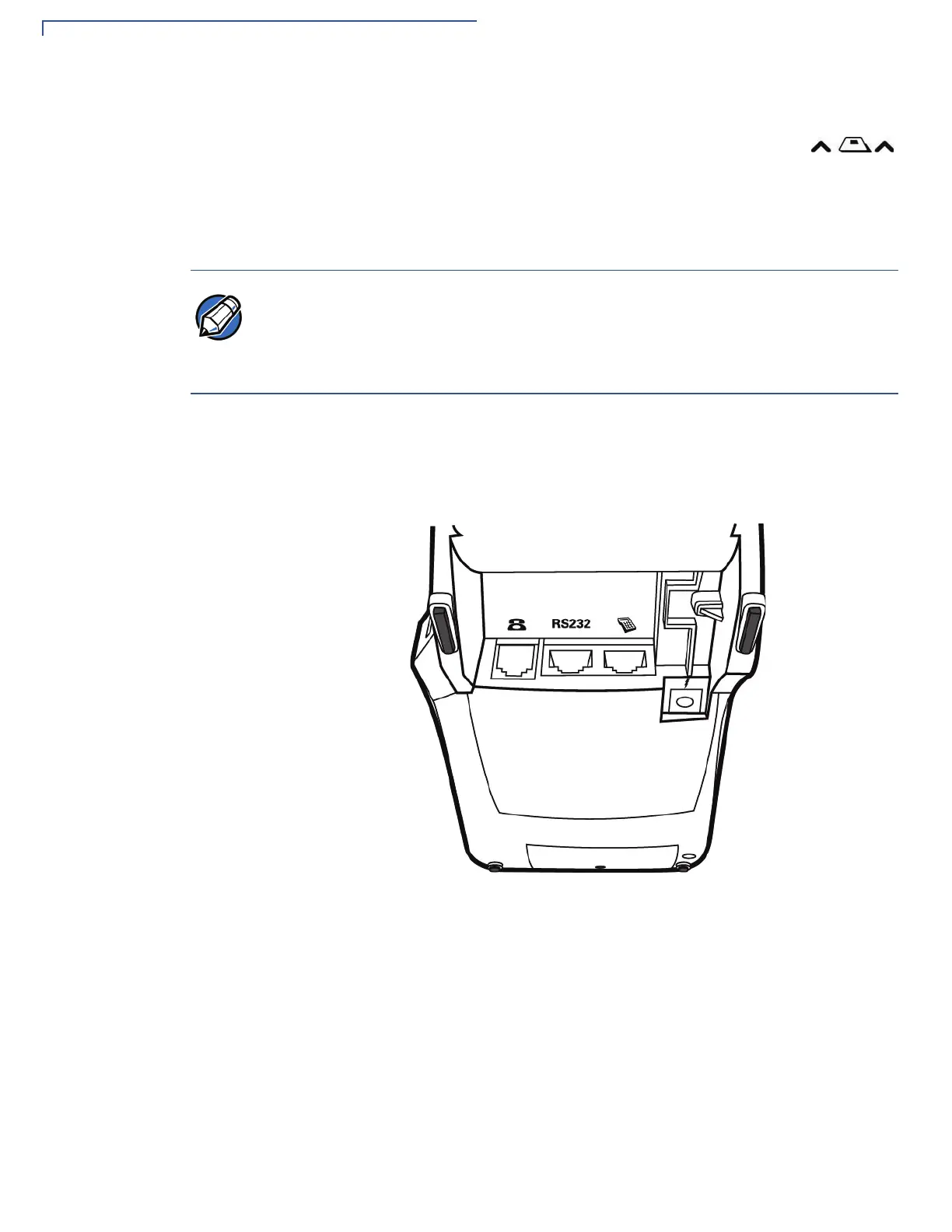

Figure 2 shows the connection ports for the V
x
510 terminal.
Figure 2 V
x
510 Connection Ports (Bottom View)
NOTE
VeriFone ships variants of the V
x
5xx/V
x
610 terminal for different markets. Your
terminal may have a different configuration. The following devices may or may not
be present: a smart card reader, or zero or three MSAM cardholders. However, the
basic processes described in this guide remain the same, regardless of terminal
configuration.
