TERMINAL SETUP
Connecting Optional Device(s)
26 OMNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE
V
x
610 Optional
Device Connections
The side port of the V
x
610 terminal can operate either as a PINpad port or an RS-
232 port, depending on the power source available.
Connecting the PINpad or Smart Card Reader to the V
x
610
Use the following procedure to connect a PINpad or smart card reader.
1 Insert the RJ45-type connector on the end of the PINpad or smart card reader
into the port on back of the peripheral device.
To install a PINpad 101, PINpad 201, or PINpad 1000, position and insert the
grommet to secure the cable connection.
If a cable is not already connected to the smart card reader or PINpad, insert
the small modular plug on one end of the interface cable into the optional
device’s modular jack.
2 Insert the larger RJ45-type connector on the other end of the PINpad cable
into the PINpad serial port on the side of the terminal. Figure 18 provides an
example of a smart card reader and PINpad connection to the PINpad serial
port.

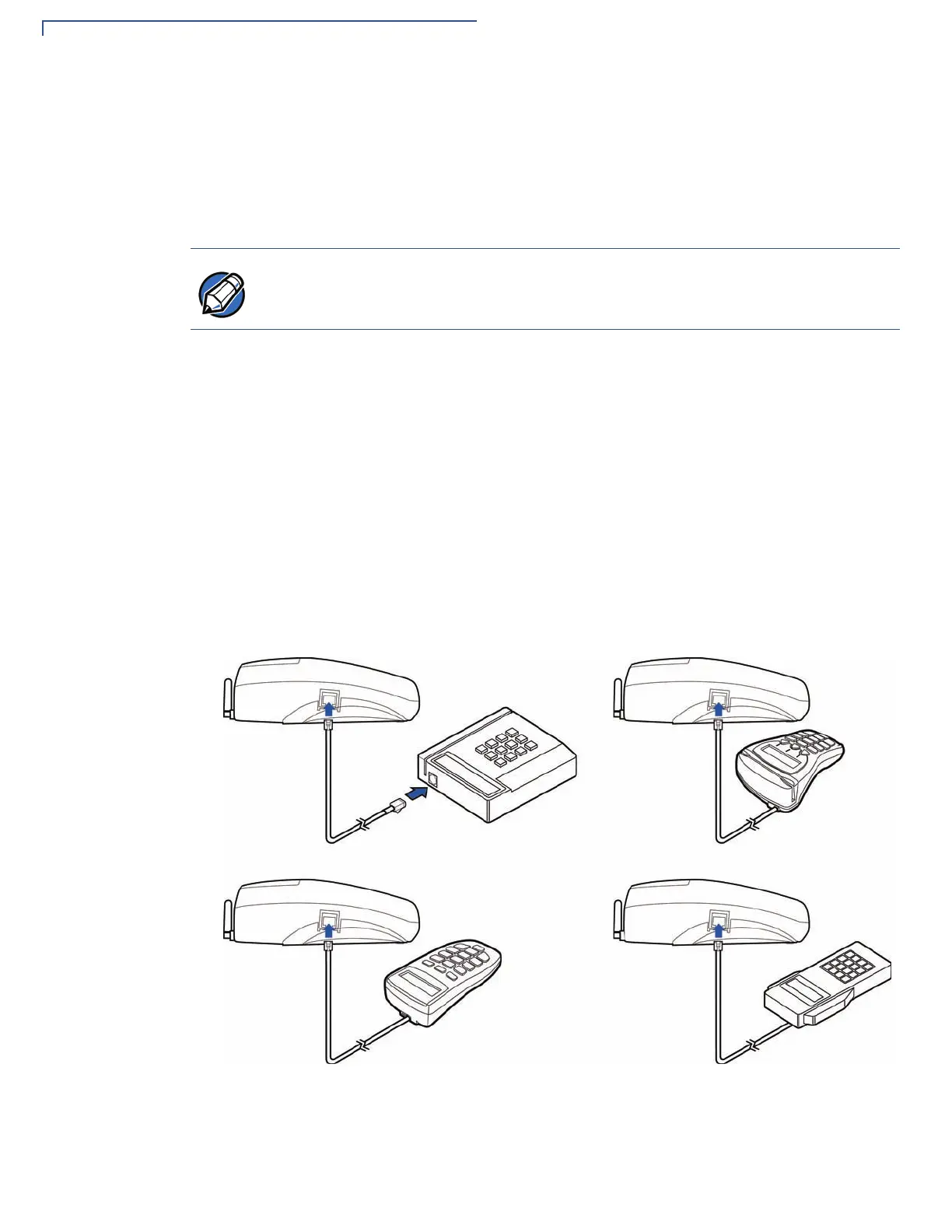

Figure 18 V
x
610 Example PINpad Serial Port Connections
NOTE
When the V
x
610 terminal is powered via the corded power supply, the terminal
provides 400 mA at 9V DC to the side port. This power will drive most VeriFone
accessories. Contact your local VeriFone representative for more information.
