TERMINAL SETUP
Connecting Optional Device(s)
O
MNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE 25
2 Insert the larger RJ45-type connector on the other end of the PINpad cable
into the PINpad serial port on the bottom of the terminal.
Figure 16 V
x

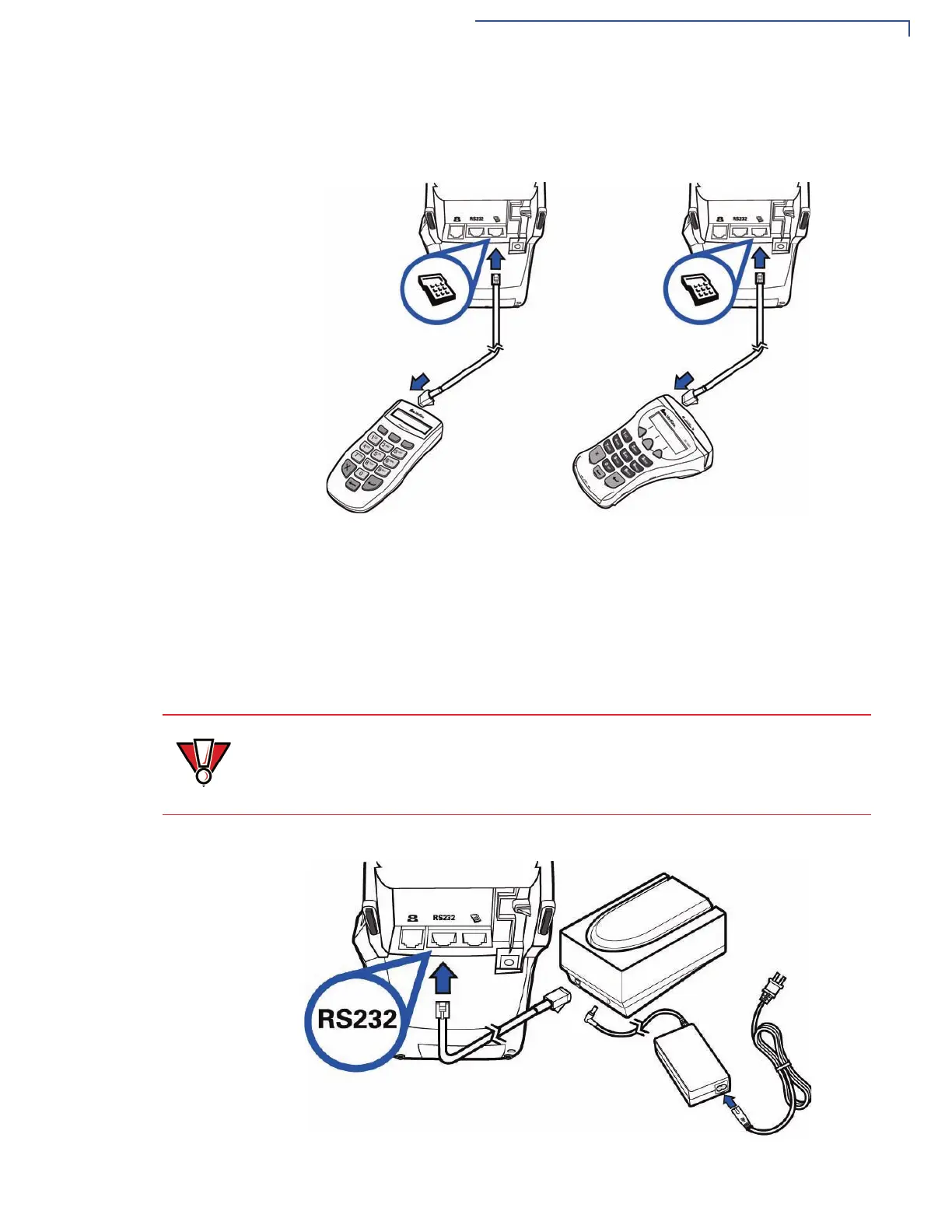

510 Example PINpad Serial Port Connections
Connecting the Check Reader to the V
x
510
or V
x
570
The V
x
5xx terminal supports the CR 600 and CR 1000i check readers. Contact
your VeriFone representative or visit the online store a www.store.verifone.com for
information on these devices. Figure 17 provides an example of a peripheral
connection to the RS-232 port.
Figure 17 V
x
510 Example Check Reader Connection
CAUTION
Check readers require a separate power source. Before connecting a check
reader or similar device, remove the power cord and/or battery (see Installing the
V
x
610 Smart Battery) from the bottom of the terminal and ensure that the green
indicator LED is not lit.
