TERMINAL SETUP
Conducting Wireless Transactions
42 OMNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE
Conducting
Wireless
Transactions
To conduct a wireless transaction:
• Ensure the terminal is in an optimal position for transmitting.
• Follow the on-screen instructions provided with your application.
Using the Smart
Card Reader
The smart card transaction procedure may vary from one application to another.
Verify the procedure with your application provider before performing a smart card
transaction.
To Conduct a Smart
Card Transaction
1 Position a smart card with the contacts facing upward (see Figure 44).
2 Insert the smart card into the smart card reader slot in a smooth, continuous
motion until it seats firmly.
3 Remove the card only when the application indicates the transaction is
complete.

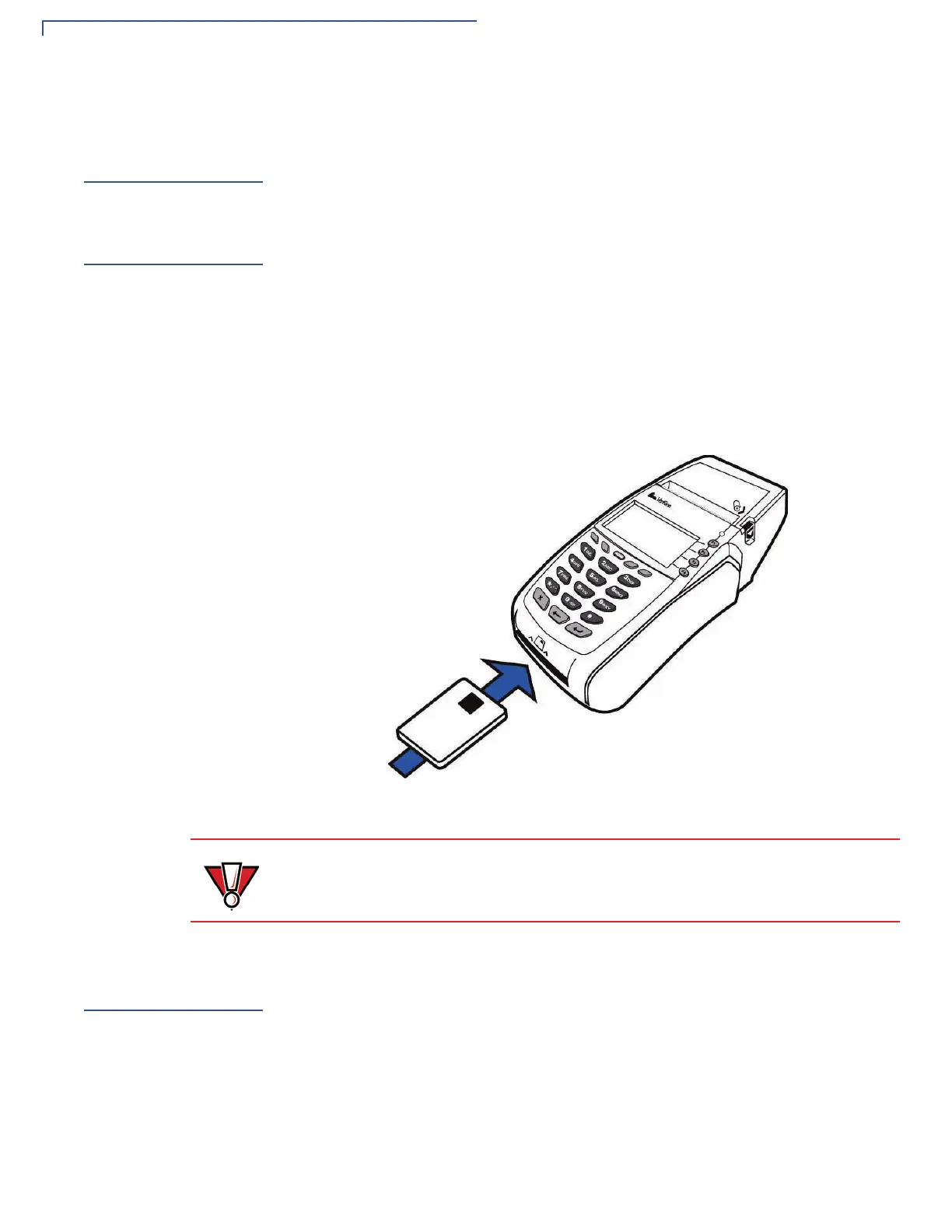

Figure 44 Inserting a Smart Card
Using the
Magnetic Card
Reader
The V
x
5xx/V
x
610 terminal supports credit/debit card transactions.
To Conduct a Credit/
Debit Card
Transaction
1 Position a magnetic card with the stripe in the card reader and facing inward,
toward the keypad.
2 To ensure a proper read of the magnetic swipe card, the user should insert the
magnetic card from the top of the unit, as shown in Figure 45.
CAUTION
Leave the smart card in the card reader until the transaction is complete.
Premature card removal will invalidate the transaction.
