TERMINAL SETUP
Connecting the V
x
610 External Antenna
40 OMNI 5XXX AND V
X
5XX/V
X
610 INSTALLATION GUIDE
Connecting the
V
x
610 External
Antenna
VeriFone provides an external wireless antenna for some V
x
610 terminals. This
connection allows communication with your service provider to upload transaction
data from the terminal and download system upgrades to the terminal. Radio
service is activated by your service provider.
Installation
This section only discusses V
x
610 terminals with external antenna. If the V
x
610
arrives from manufacture with the antenna unattached, use the following
procedure to install the antenna:
1 Locate the antenna port on the back side of the V
x
610 terminal.
2 Align the connector on the end of the antenna with the connector on the end of
the terminal.
3 Push gently on the center of the base of the antenna until it slides into
position.

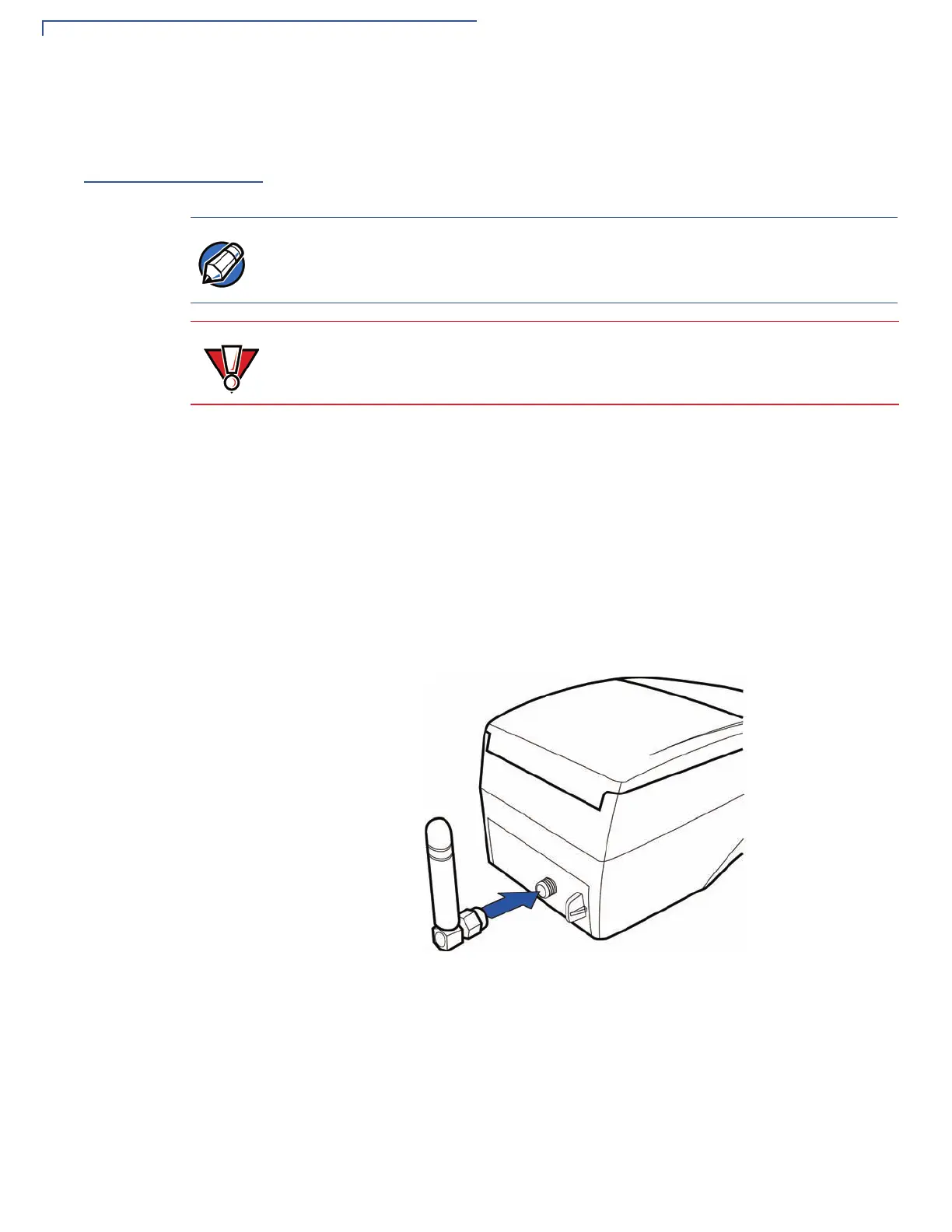

Figure 42 Align Antenna with Antenna Port
NOTE
Some V
x
610 terminals have an internal antenna and this section can be ignored.
Use only the antenna designed for your unit. Failure to use the proper antenna
results in the inability to establish a wireless connection.
CAUTION
Never hold the unit by the antenna; doing so may break the connection and void
your warranty.
