VeriFone V200t - Rear Compartments

OVERVIEW
V200t Terminal
10 V200T INSTALLATION GUIDE
• Integrated thermal printer
Rear Compartments

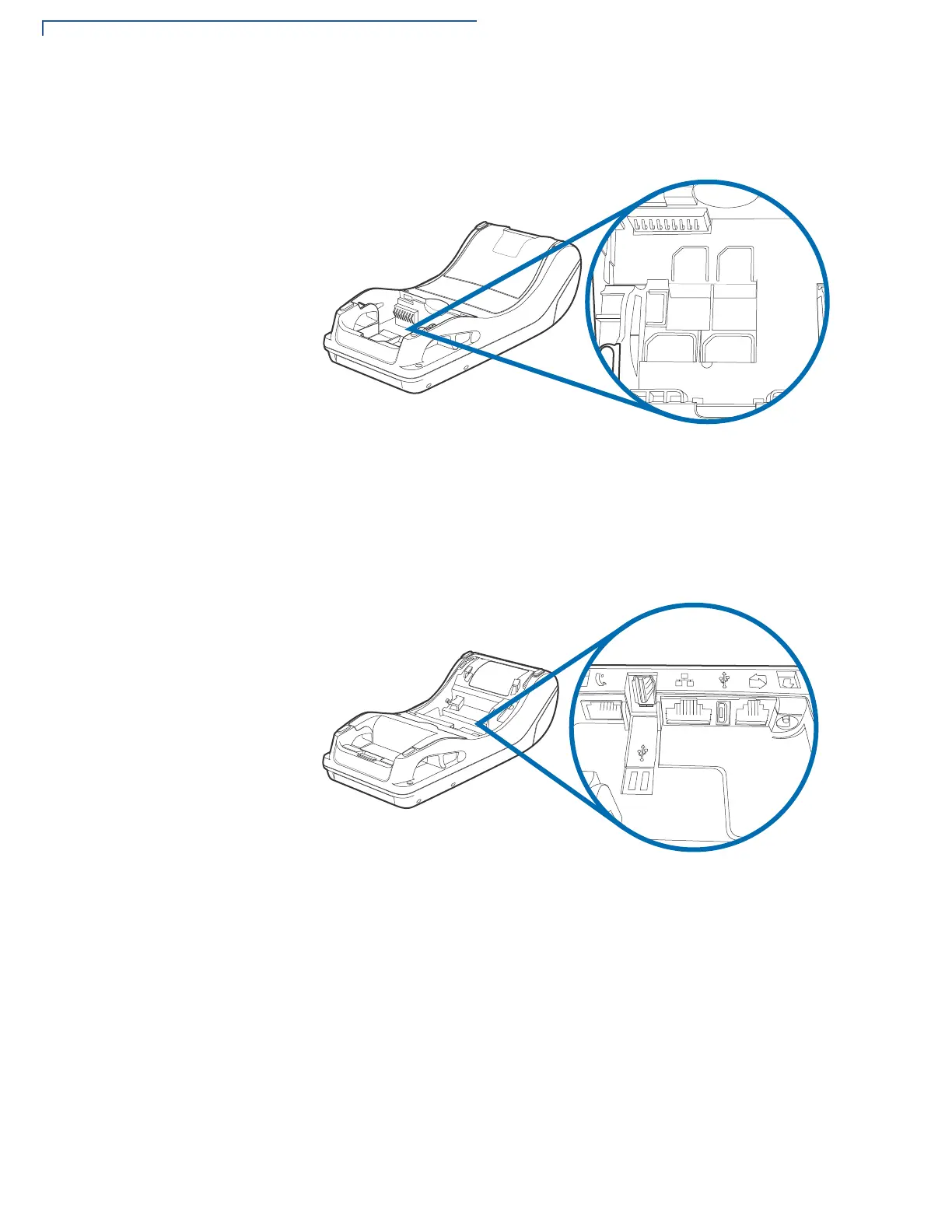

After removing the rear covers, the underside of the V200t shows the following:
Figure 2 V200t Cards Compartment
• Dual MSAM slots
• Dual SIM slots
• Micro SD Card slot
• Battery compartment
Figure 3 V200t Ports Compartment
• Ethernet port
• RS-232 port
• RJ11 port
• USB Host/Client port
• Power port
3$
3)- 3)-
3$
3!-
3!-
