VeriFone VX 520 Reference Guide

TERMINAL SETUP
Examining Terminal Features
VX 520 R
EFERENCE GUIDE 19

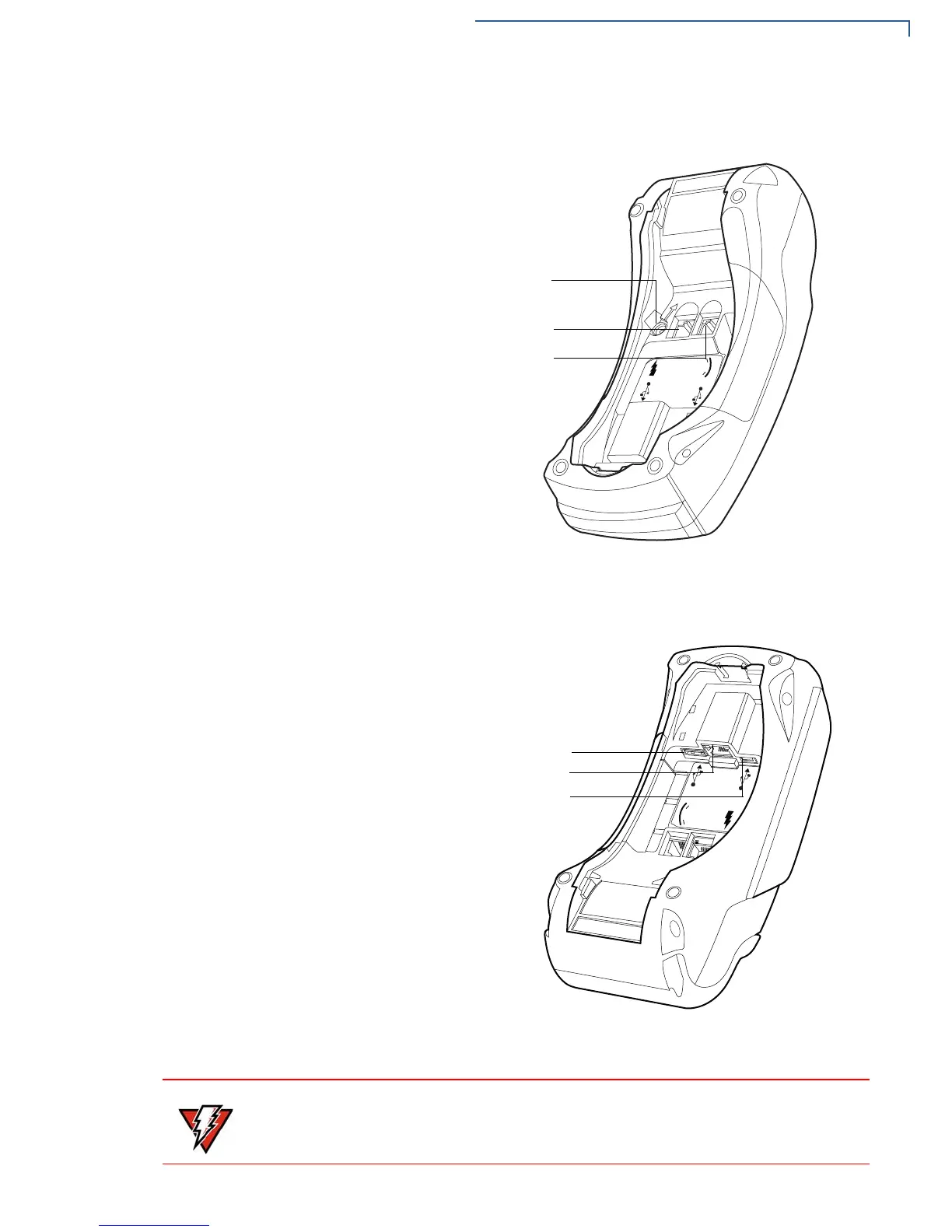

Figure 4 and Figure 5 show the connection ports for the VX 520 terminal.
Figure 4 VX 520 Power and Connection Ports
Figure 5 Additional VX 520 Connection Ports
23
%4(
POWER PORT
RS-232 SERIAL PORT
RJ-11 TELEPHONE PORT
23
%4(
HOST USB PORT
CLIENT USB PORT
ETHERNET PORT
WARNING
Do not connect the terminal to the power supply until all the peripherals are
attached. Do not disconnect peripherals from the terminal while the power supply
is connected.

VeriFone VX 520 Specifications

General

Processor	400 MHz ARM11
Card Readers	Magnetic stripe, EMV chip
Operating Temperature	0°C to 50°C (32°F to 122°F)
Display	128x64 pixel backlit LCD
Connectivity	Dial-up, Ethernet
Contactless	Optional
Printer	18 lines per second
Security	PCI PTS 3.0 approved
Weight	500g
Dimensions	203 mm x 87 mm x 77 mm (8.0 in x 3.4 in x 3.0 in)
