TERMINAL SETUP
Connecting the Terminal Power Pack
30 VX 520 REFERENCE GUIDE
Connecting the
Terminal Power
Pack
When you have finished connecting optional peripheral(s), you are ready to
connect the VX 520 terminal to the provided power source.
To connect the
terminal power pack
1 Remove the terminal rear cover to access the power port.
2 Insert the round barrel connector (see Figure 19) into the power port.

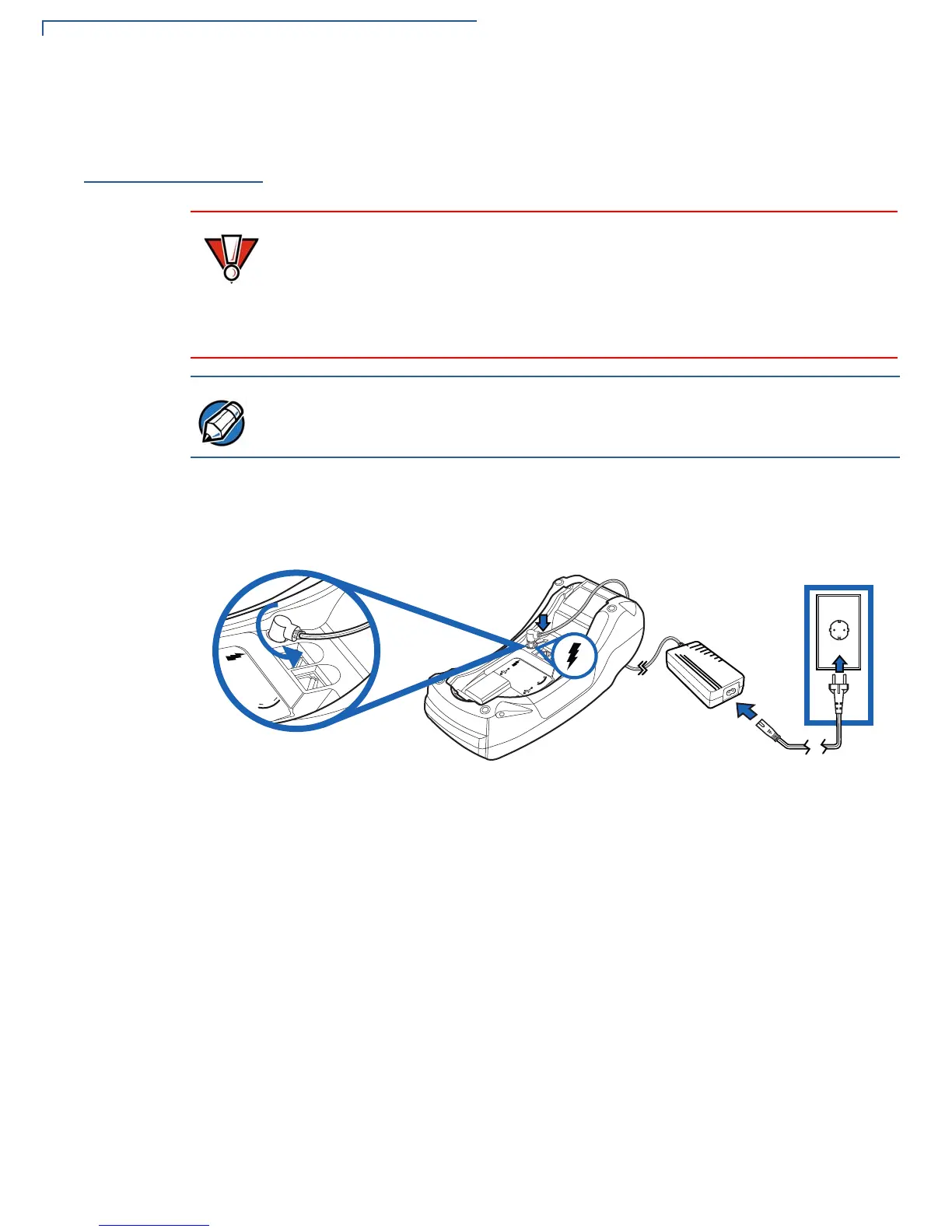

Figure 19 VX 520Power Pack Connection
3 Rotate the power plug counter-clockwise and flush against the side panel to
lock the plug in place.
4 Route the cable in the direction of the arrow above the power port and sling
the cable over the underside of the thermal paper container.
5 Close the terminal rear cover.
6 Insert the AC power cord into the power pack.
Using an incorrectly rated power supply may damage the terminal or cause it not
to work as specified. Before troubleshooting, ensure that the power supply being
used to power the terminal matches the requirements specified on the bottom of
the terminal. (See Chapter 7, Specifications, for detailed power supply
specifications.) Obtain the appropriately rated power supply before continuing
with troubleshooting.
Plugging in the power pack to a power source automatically turns on the terminal.
