VX 805 CTLS INSTALLATION G UIDE
S ETUP
Examining Device Features
A
.
7
N
Examining
Device
Features
Before you continue with the installation process, familiarize yourself with the
VX805 CTLS features:
LEDS FOR
CONTACTLESS
SUPPORT
LCD/CTLS
DISPLAY
TELCO KEYPAD
ATM STYLE
KEYS
MAGNETIC CARD
READER
COLOR-CODED
FUNCTION KEYS
SMART CARD
READER

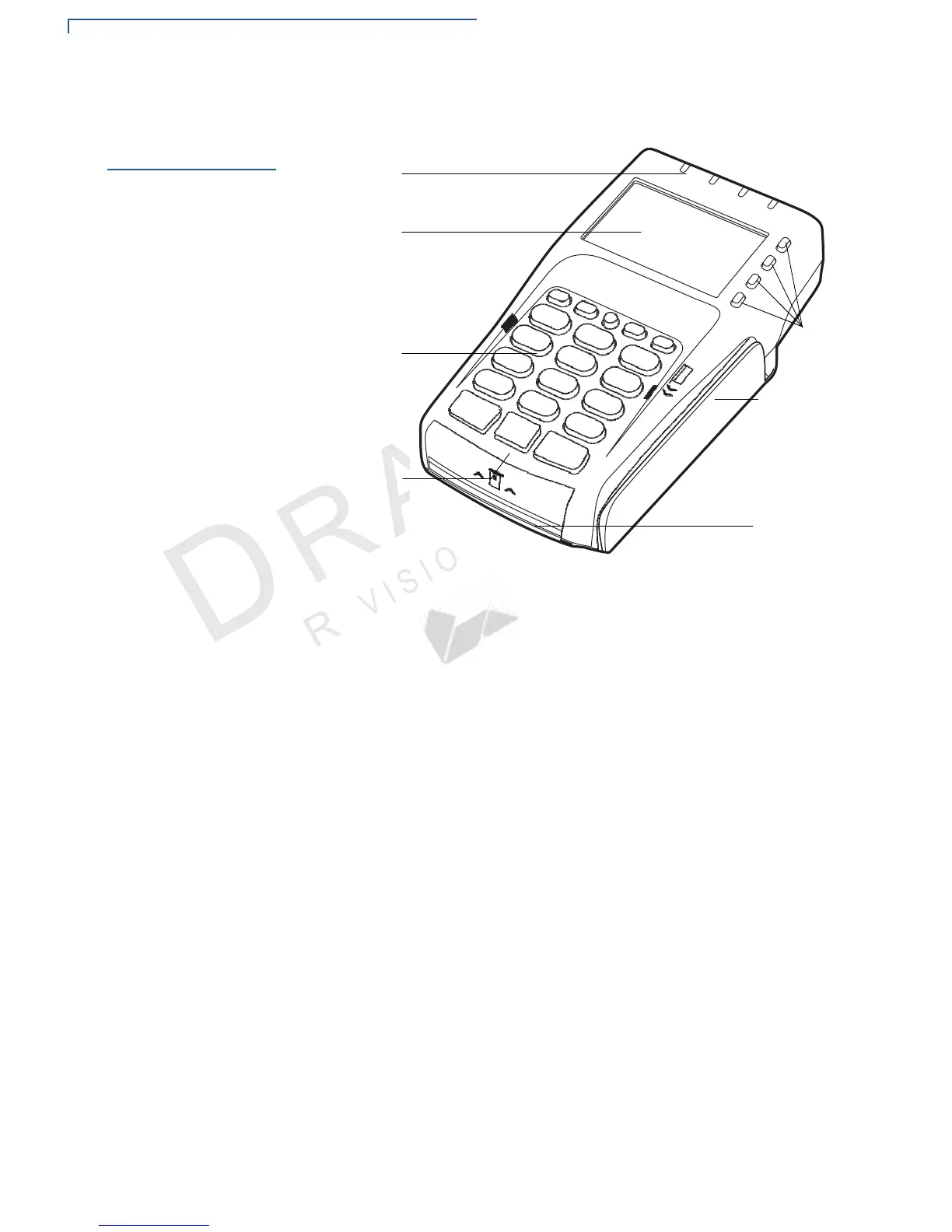

Figure 2 VX805 CTLS Features
The VX805 CTLS includes the following features:
• An LCD display.
• Three color-coded function keys below the keypad (CANCEL [ RED ],
BACKSPACE [YELLOW], ENTER [ GREEN ]).
• A magnetic card reader, built into the right side. An icon shows the proper
swipe direction, with the stripe facing down and towards the keypad.
• A smart card reader, built into the unit’s front side. An icon indicates the
proper card position and insertion direction.
• A SAM (Security Access Module) compartment, built into the back side
of the unit. The VX805 CTLS contains multiple-SAM (MSAM) cardholders
to support multiple stored-value card programs or other merchant card
requirements.
• Contactless (CTLS) payment support.

VeriFone VX805 CTLS Specifications

General

Processor	400 MHz ARM11
Display	128 x 64 pixel LCD with backlight
Connectivity	RS-232, USB
Card Readers	Contactless
Security	PCI PTS approved
Operating Temperature	0°C to 50°C (32°F to 122°F)
Power Supply	12V DC
Weight	295g
