14
VX 805 CTLS INSTALLATION G
UIDE
S
ETUP
Installing and Replacing MSAM Cards
Installing
and
Replacing
MSAM
Cards
You may need to install one or more multiple security access module (MSAM)
cards or replace the old cards.
CAUTION Observe standard precautions in handling electrostatically sensitive devices.
Electrostatic discharges can damage the equipment. VeriFone recommends
using a grounded anti-static wrist strap.
To install or replace
MSAM cards
1 Remove the compartment cover. See Opening and Replacing Card and
Connector Compartment.
The MSAM cardholders are now accessible. Each cardholder consists of a
slot inboard of a numbered tray.
NOTE
Before inserting the MSAM card, position it as shown in Figure 5, with the card’s
gold contacts facing away from you, toward the unit. The cardholder slot in the
VX805 CTLS has a set of contacts. The MSAM card has a notch on one corner
to ensure that it fits into the connector base in only one way; the VX805 CTLS
has a matching notch cast into the backside of the MSAM compartment door to
ensure the MSAM card is positioned correctly when the cover is closed.
2 Install the MSAM card by aligning the card to match the embossed number
and carefully sliding it into the slots until fully inserted.
A
B

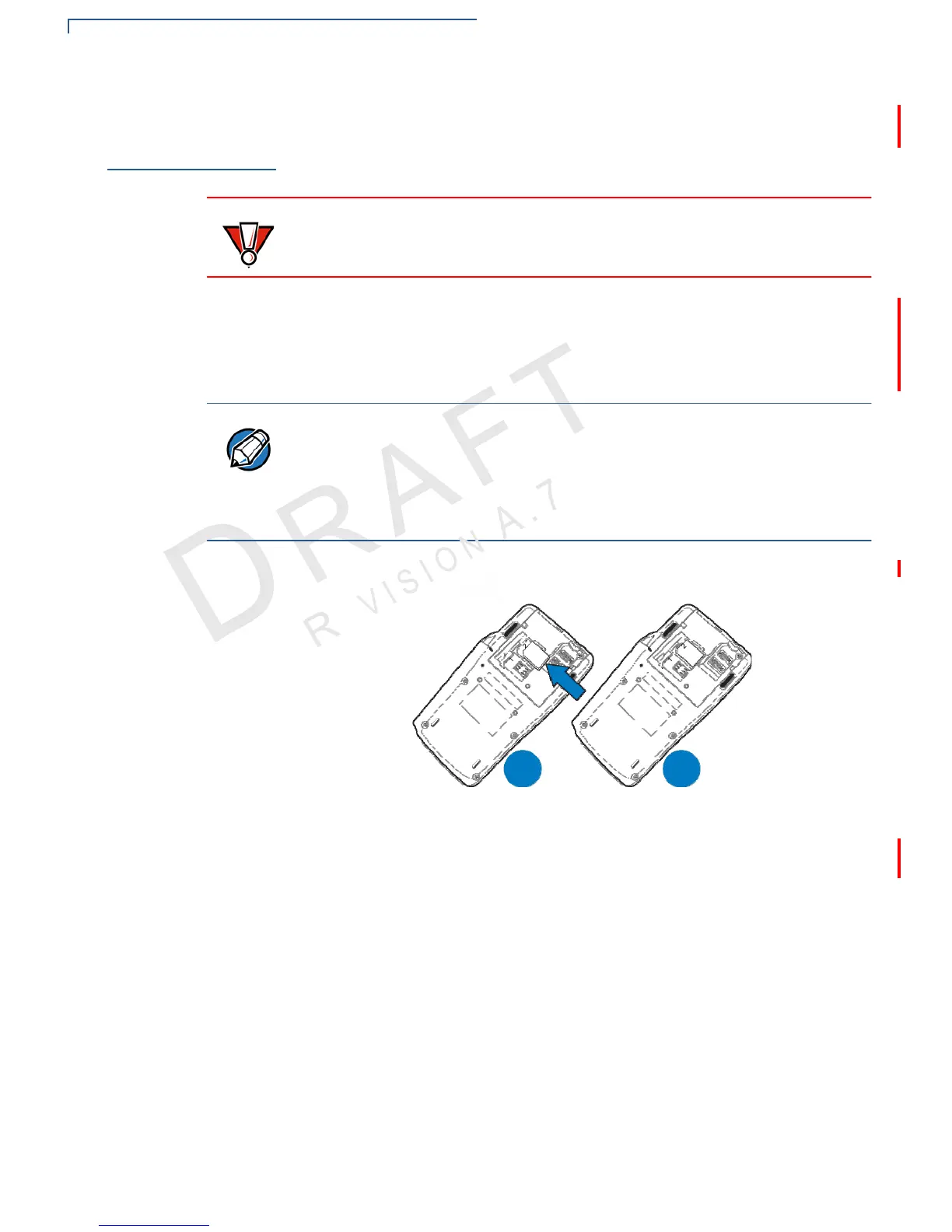

Figure 5 MSAM Insertion
3 Replace the compartment cover. See Opening and Replacing Card and
Connector
Compartment.
