VX 805 CTLS INSTALLATION G UIDE
S ETUP
USB Download Support
USB Download
Support
Use the USB direct connection for USB download support.
To perform USB
download
Support
Using the
Magnetic Card
Reader
1 Connect the VX805 CTLS to the computer using a USB cable(see
Connecting to a Host Computer Using Direct USB
Connection).
2 Download the USB driver from the following location: http://verifone.com/
USBdriver
.

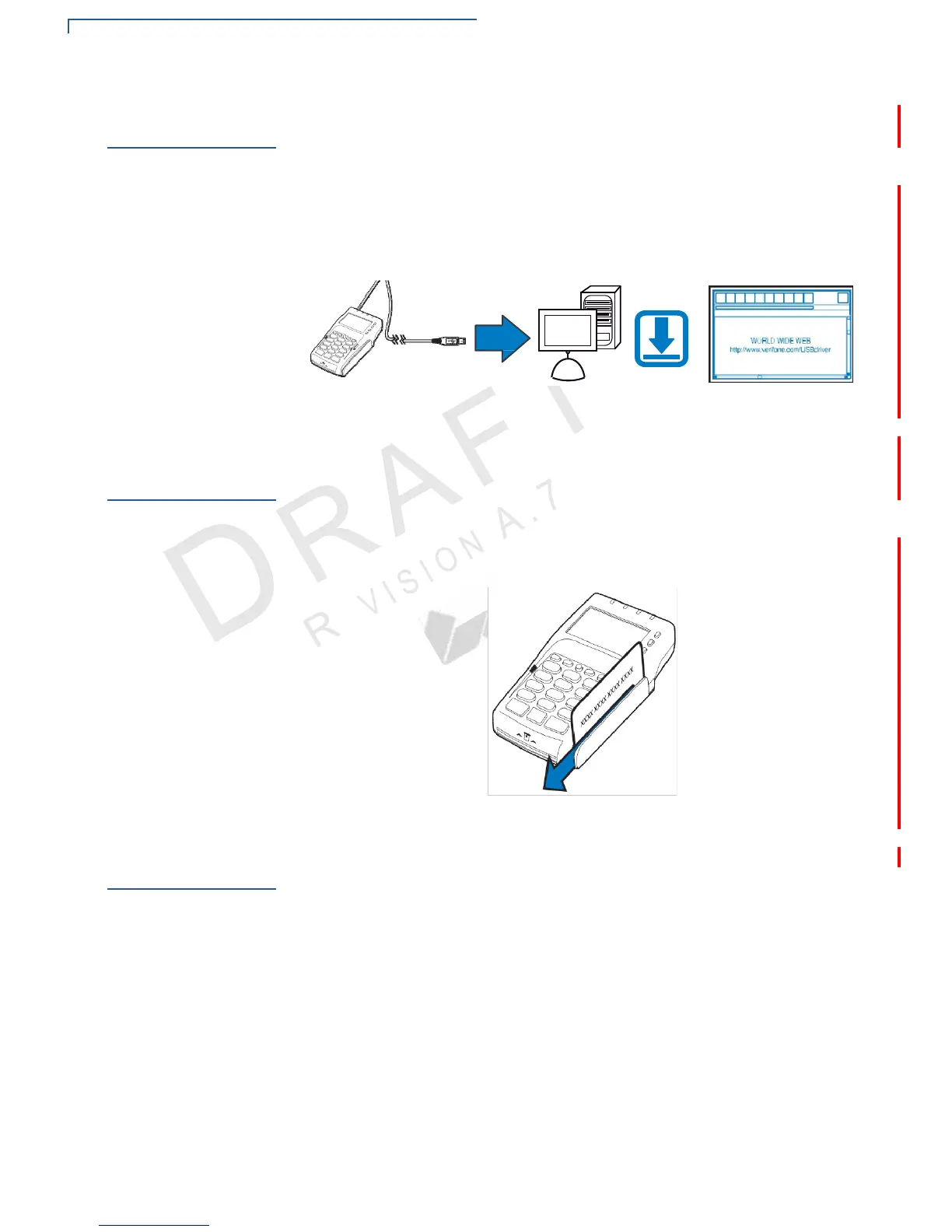

Figure 16 USB Download Support
The VX805 CTLS has a magnetic card reader that uses a triple track stripe
reader. This gives the unit greater reliability over a wide range of swipe speeds
and operating environments.
To conduct a credit or
debit card transaction
Using the
Smart
Card Reader
1 Position a magnetic card with the stripe facing the keypad.
2 Swipe it through the magnetic card reader.
Figure 17 Using the Magnetic Card Reader
The smart card transaction procedure can vary depending on the application.
Verify the proper procedure with your application provider before performing a
smart card transaction.
To conduct a smart
card transaction
1 Position the smart card with the gold contacts facing upward (see Figure 18).
2 Insert the card into the smart card reader slot in a smooth, continuous motion
until it seats firmly.

VeriFone VX805 CTLS Specifications

General

Processor	400 MHz ARM11
Display	128 x 64 pixel LCD with backlight
Connectivity	RS-232, USB
Card Readers	Contactless
Security	PCI PTS approved
Operating Temperature	0°C to 50°C (32°F to 122°F)
Power Supply	12V DC
Weight	295g
