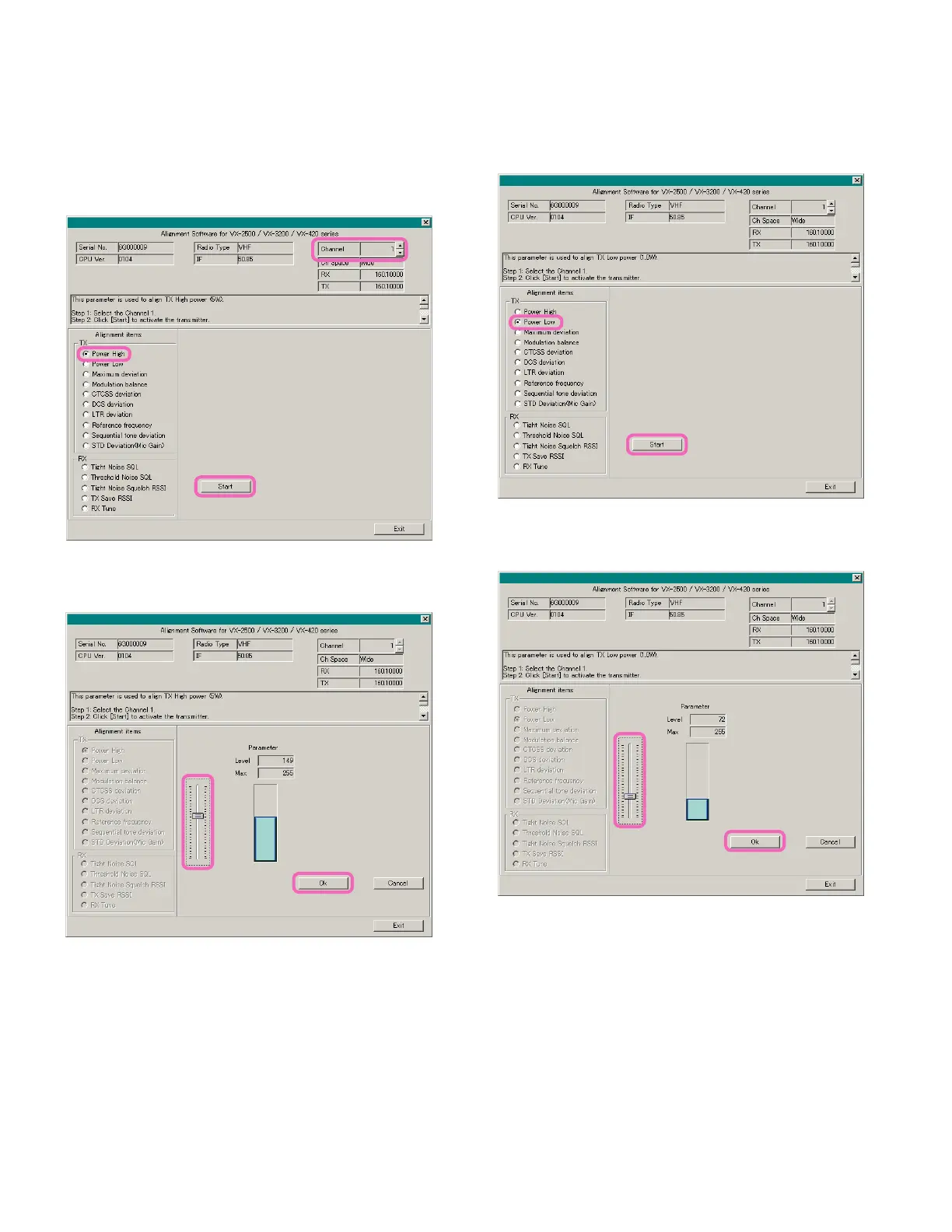

Alignment
Transmitter Output Power
c Set the transceiver to CH 1 (band center) via the “Chan-
nel” box on the “Alignment” window previously.
d Click the left mouse button on the “Power High” but-
ton.
e Click the left mouse button on the “Start” button.
f Move the Slide Bar, as needed as, so that the power
meter reading is 5.0 W ± 0.1 W.
g Press the “OK” box to lock in the new data.
h Click the left mouse button on the “Power Low” but-
ton.
i Click the left mouse button on the “Start” button.
j Move the Slide Bar, as needed as, so that the power
meter reading is 1.0 W ± 0.1 W.
k Press the “OK” box to lock in the new data.
c
d
e
f
g
h
i
j
k
