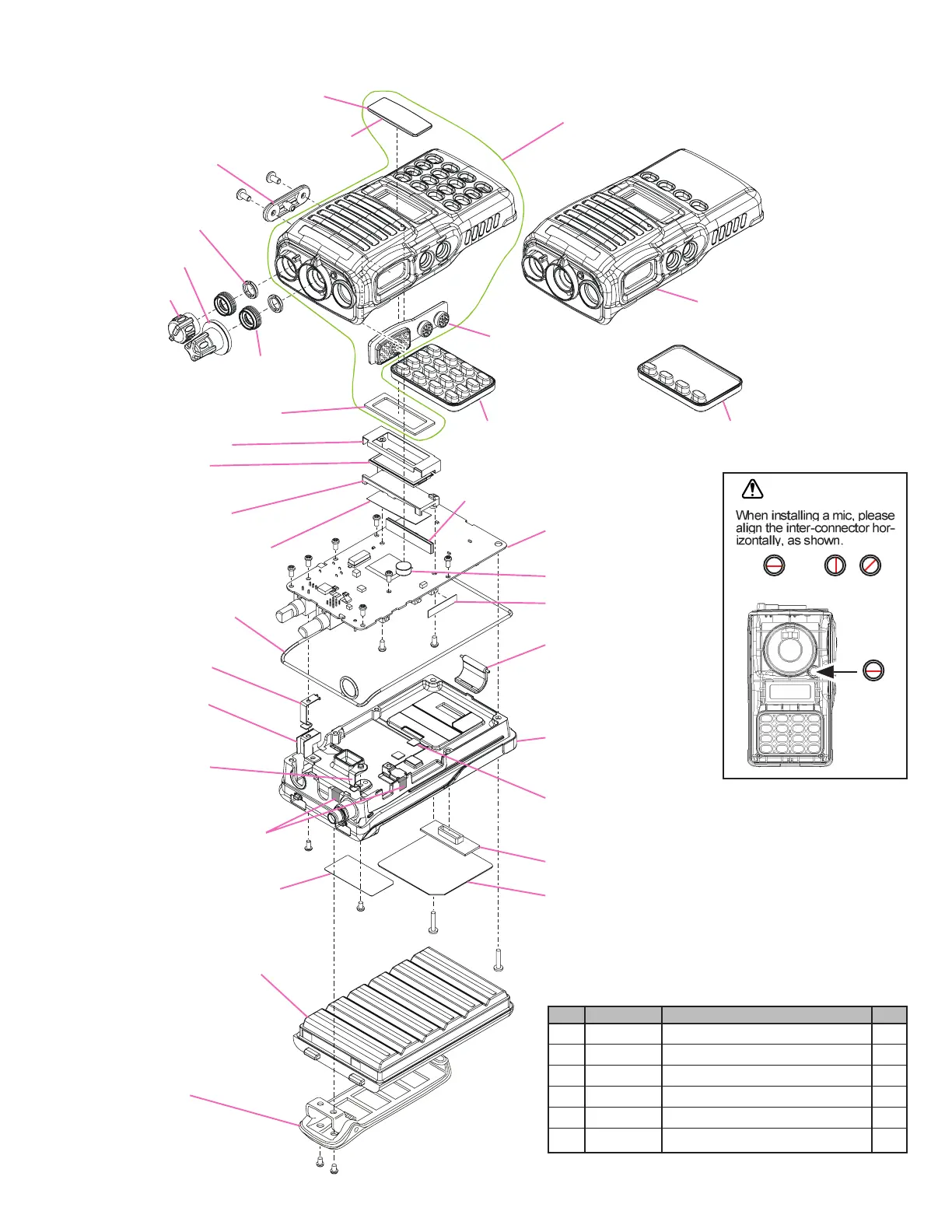

Exploded View & Miscellaneous Parts
CP8731001
FRONT CASE ASSY (16 key)
(W/ LIGHT GUIDE, NAME PLATE, SP NET, SPEAKER, PACKING PAD,
PTT KNOB, SHEET(MIC), CR SPONGE RUBBER, WINDOW ASSY)
RA0546800
INTER CONNECTOR
RA0546000
RUBBER PACKING
RA0546500
RUBBER KNOB (16 key)
RA055770B (Lot. 1 ~ 5)
RA055770C (Lot. 6 ~)
LATCH NAIL C
RA0173500
CAP
MAIN Unit
CP8727001 (IS: OFF)
CP8727002 (IS: ON)
REAR CASE ASSY
(w/SMA CONNECTOR,
TERMINAL PLATE (-),
PAN HEAD SCREW M2X3NI)
RA0351600 (Lot. 1 ~ 4)
RA035160A (Lot. 5 ~)
TERMINAL PLATE (-)
RA0546700
LIGHT GUIDE
RA010700A (IS: OFF)
RA0723400 (IS: ON)
TERMINAL PLATE (+)
RA010340B
TERMINAL HOLDER



R6147510
RING NUT (x 2 pcs)
RA0546400
VOLUME KNOB
RA0810500
KNOB ASSY (256CH)
RA0545500
WINDOW
G6090174
LCD
M3290040
MIC

RA0210600
RUBBER PACKING
(x 2 pcs)
RA054540A
RUBBER (PTT)
RA0546600
LCD HOLDER
RA0546900
REFLECTOR SHEET



CP8730001
BELT CLIP ASSY
BATTERY PACK
RA0545600
CR SPONGE RUBBER
DUMMY Unit
RA0560600 (Lot. 1 ~ 5)
RA05606A0 (Lot. 6 ~)
BLIND SHEET

NAME PLATE
Non-designated parts are available only as part of a designated assembly.
CAUTION
correct incorrect
RA0376900 (Lot. 1 ~ 3)
RA037690A (Lot. 4 ~ 5)
RA037690B (Lot. 6 ~)
SHEET
RA0584800
SHEET
RA0337900
GROUND PLATE
RA0545300
DOUBLE FACE TAPE (LCD)









REF. VXSTD P/N Description Qty.
 U44104002 TAPTITE SCREW M2X4NI 9
 U20206007 BINDING HEAD SCREW M2.6X6B 2
 U24110002 TAPTITE SCREW M2X10NI 2
 U02206007 SEMS SCREW SM2.6X6B 2
 U00103002 PAN HEAD SCREW M2X3NI 1
 U9900158 TAPTITE SCREW 2X4NI 1
CP8731002
FRONT CASE ASSY (4 key)
(W/ LIGHT GUIDE, NAME PLATE,
SP NET, SPEAKER, PACKING PAD,
PTT KNOB, SHEET(MIC),
CR SPONGE RUBBER, WINDOW ASSY)
RA0860400
RUBBER KNOB (4 key)
