h Set the transceiver to CH 2 (band center, narrow de-
viation) via the “Channel” box on the “Alignment”
window.
i Tune the RF output of the Radio Tester to 160.100 MHz,
then set the output level to –11 dBμ with ±1.5 kHz
deviation @ 1 kHz tone modulation.
j Click the left mouse button on the “Start” button.
k Press the “OK” box to lock in the new data.
h
j
k

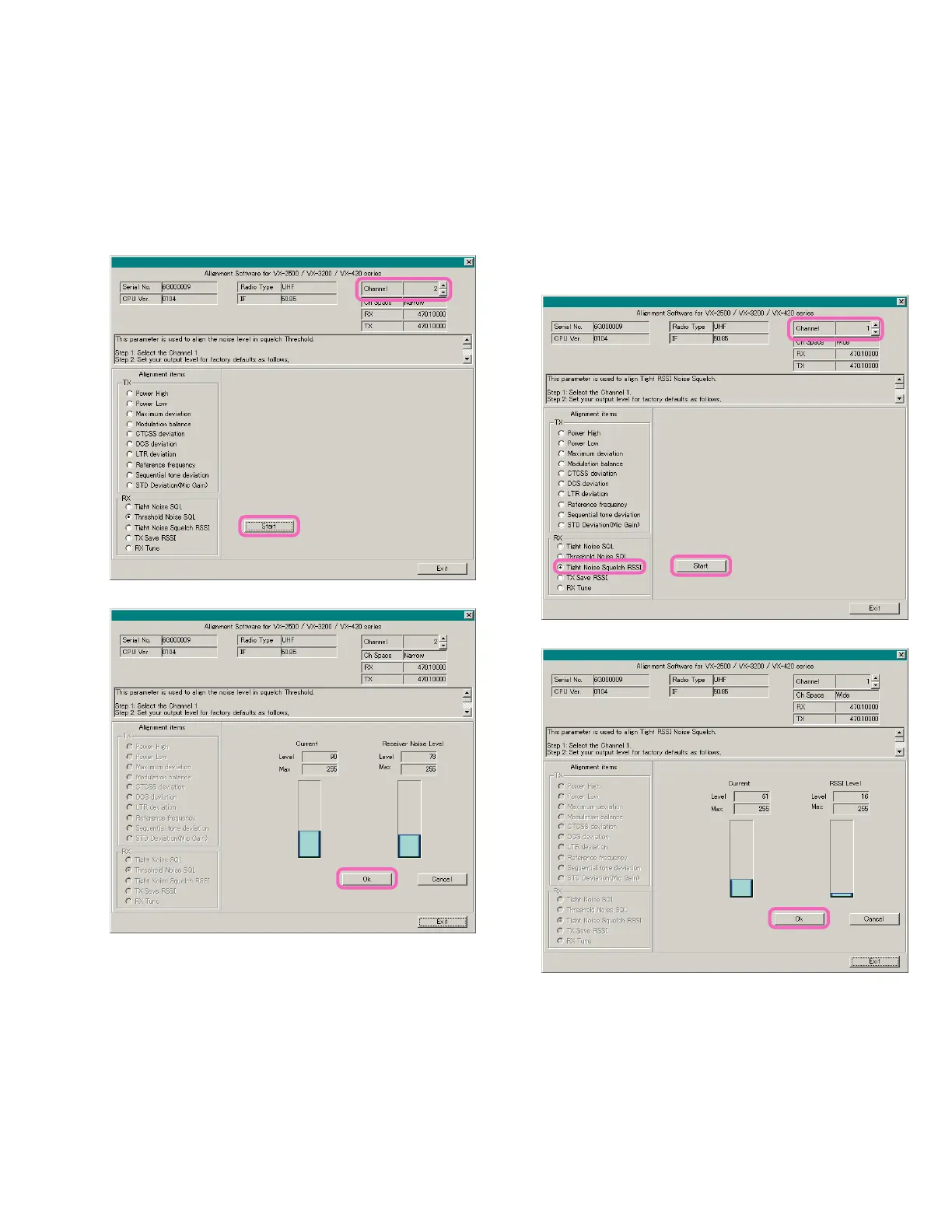

Alignment
Tight Noise Squelch RSSI
c Set the transceiver to CH 1 (band center, wide devia-
tion) via the “Channel” box on the “Alignment” win-
dow previously.
d Tune the RF output of the Radio Tester to 160.100 MHz,
then set the output level to +3 dBμ with ±3.0 kHz de-
viation @ 1 kHz tone modulation.
e Click the left mouse button on the “Tight Noise Squelch
RSSI” button.
f Click the left mouse button on the “Start” button.
g Press the “OK” box to lock in the new data.
c
e
f
g
